What Is a BC05 PV AC Waterproof Connector and How Does It Work?

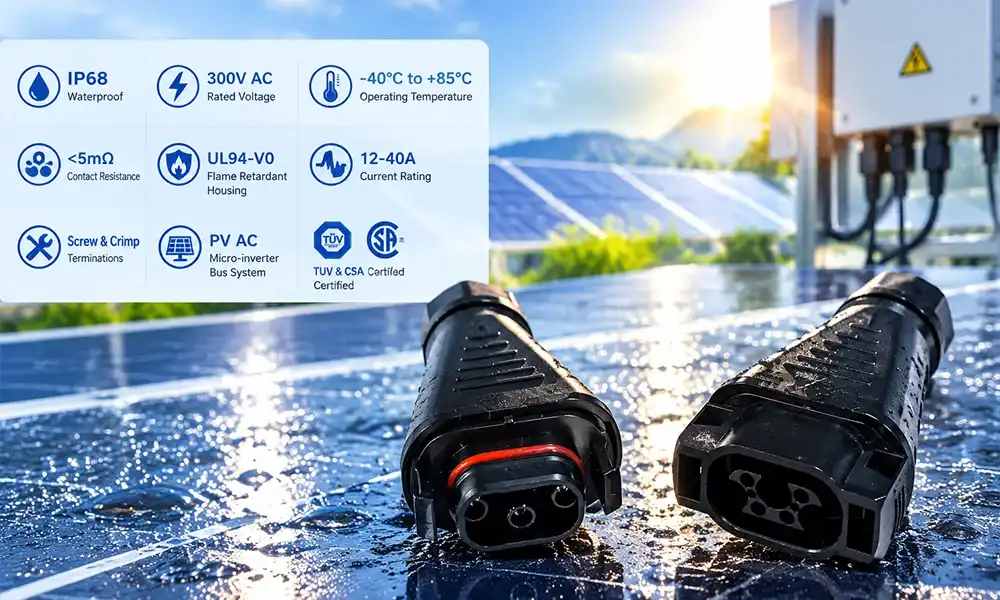

The BC05 PV AC waterproof connector is a dedicated electrical interface built for the AC output side of photovoltaic systems, specifically micro-inverter AC bus lines. Rated at 300V AC with a 3-pin (2P+PE) configuration, it transmits single-phase power from solar panels to the grid while blocking moisture, dust, and chemical exposure. Cablein's BC05 PV AC waterproof connector carries TUV and CSA dual certification, achieves IP68 protection per IEC 60529, and supports current ranges from 12A to 40A — making it a field-proven choice for EPC contractors and solar integrators who need documentation-ready components.
Understanding the BC05 PV AC Waterproof Connector
Before making a selection about a connection for a solar project, it is essential to have a complete and detailed understanding of what it is that you are looking for and the reasons why it is essential for the whole system. If you do so, you will be able to make a conclusion that is well-informed. You will be able to arrive at a conclusion that is built on accurate information if you follow out these processes in the appropriate manner.
What It Is Designed to Do
The BC05 connection is on the AC output side of micro-inverters. It connects the output of the inverter to the trunk wire that brings power to the distribution board. It has three pins that carry Line, Neutral, and Protective Earth. These are the bare minimums for single-phase AC wiring that meets the standards set by NEC 2023 and IEC 60364.
Key Physical Specifications
The housing is made from UL94-V0 PPO (polyphenylene oxide) plastic, which means it puts out the fire itself instead of spreading it. Copper alloy contacts that are silver-plated keep the contact resistance below 5 m©. This keeps electrical heating across the joint to a minimum. Operating temperature ranges from -40°F to +85°F without seal degradation.
Why Certification Matters for Grid Interconnection
Listings by TUV Rheinland and CSA Group are not extras that aren't required. Many US utilities and AHJs (Authorities Having Jurisdiction) need listed parts before they will sign an interconnection agreement. A BC05 PV AC waterproof connector that doesn't have these listings can delay the start of a project by weeks. Cablein sends all of the approval paperwork with every sale.
How Does the BC05 PV AC Waterproof Connector Work?
It is much simpler for installation teams to avoid making the most common errors that occur in the workplace when they have a thorough grasp of the underlying mechanics. This is because the mechanics are fundamental to the installation process. Because it gives procurement teams the ability to have faith in the lifetime statistics, which is a significant benefit, it also offers an extra advantage.
The Snap-Lock Mating Mechanism
When you push the plug into the receptacle, an internal locking collar engages with an audible click. This confirms a gas-tight, vibration-resistant joint that passes pull-out force testing above 150N per IEC 60068-2-21. A dedicated release tool is required to separate the halves, preventing accidental disconnection under load.
Sealing Technology and IP68 Performance
Two independent silicone O-rings compress against the cable jacket and the mating face simultaneously. This dual-barrier design passes the IPX8 immersion test: 1 meter of water for 48 continuous hours with zero ingress. The seal material resists ozone and UV radiation, which is critical for connectors exposed to rooftop conditions year-round.
Termination Options in Practice
Screw-type termination on the main-line side accepts 2.5 mm² to 6 mm² conductors and gives field technicians a torque-verifiable joint. Crimp-type termination on the branch-line side supports faster assembly in factory-built harnesses. Together, these two methods cover both field-wired installations and pre-assembled AC cable sets shipped directly to the job site.
Comparing the BC05 with Other PV AC Connectors
The sort of connection that is chosen has an effect on a number of different factors, including the pace at which it is installed, whether or not it conforms with standards, and the amount of money that it costs to maintain over the course of time. These are just some of the things that are affected by the connection. An examination of the BC05 in relation to other options that are often used in the industry is shown in the following.
BC05 vs. MC4 (DC-Side Standard)
The MC4 connection is made for DC strings, not AC trunking. UL 6703 doesn't list them for AC work, and they don't come with a PE pin. It is against NEC 690 and most utility hookup rules to use an MC4 on an AC bus. With its 3-pin arrangement and AC-rated insulation, the BC05 was designed to work with AC power. This means that the two items are not meant to be switched out.
BC05 vs. Generic IP67 Industrial Connectors
There are a lot of generic circular BC05 PV AC waterproof connectors that have IP67 ratings but no PV-specific certifications. IP67 lets water submerge for 30 minutes at 1 meter, but IP68 lets water submerge continuously. This is an important difference for floating PV plants, where ports may be at or below the surface after a storm. That hole is filled by the BC05's TÜV-certified IP68 grade.
BC05 Branch Line vs. Main Line Configurations
The BC05 comes in two classes right now. Branch-line versions can handle 12–20A and work with either one or two micro-inverter strings. Mainline versions can handle 25–40A for trunk runs that connect several branches. Because both versions share the same housing standard, mixing them on the same trunk is safe. This way, the project stays with a single SKU family.
These differences make it easy for expert workers to give the right part number without having to look it up across multiple product families, which speeds up the decision-making process for purchasing.
Procurement Guide for the BC05 PV AC Waterproof Connector
It is conceivable to develop compliance exposure and warranty risk from either sourcing the incorrect component or obtaining the correct component via a method that has not been inspected. Both of these scenarios are plausible. There is a possibility that each of these possibilities might occur together. First and foremost, before making an order, it is of the utmost importance to verify that the following is accurate.
Verifying Certification Documents
Request TUV and CSA test reports with the listed file number before approving a vendor. Cross-check the file number on the TUV Rheinland public database and the CSA Group Certified Product Listing. Genuine Cablein BC05 units carry traceable certification numbers on both the product label and the accompanying datasheet.
Volume, Lead Time, and Custom Harness Options
Standard stock items ship within 7–10 business days from Cablein's Shenzhen facility. Custom pre-assembled AC harnesses — with specified cable length, conductor cross-section, and connector orientation — require 3–4 weeks for first-article production. For EPC contractors running rolling project schedules, Cablein supports monthly replenishment planning with blanket purchase order arrangements.
OEM and ODM Considerations for Inverter Brands
Inverter brands seeking private-label BC05-compatible connectors can request proprietary mold modifications, custom labeling, and UL/TUV listing support under their own brand name. NDA and engineering change control agreements are available. Mold investment typically falls between $800 and $2,500 depending on modification scope, and minimum order quantities for custom configurations start at 1,000 pieces.
Ensuring Long-Term Performance and Compliance
The conditions of this guaranty may only be satisfied by a connection that has been rated for a period of twenty-five years or more. In addition to that, this link has to be properly maintained and acquired from a supply chain that has been verified in an acceptable way. However, this specific item is the only object that can fulfill the requirements of this guarantee. Taking the appropriate steps to ensure that the connection is kept up on a regular basis is yet another item that is quite essential to do.
Inspection and Preventive Maintenance
Inspect mating faces and cable jacket seals annually, or after any severe weather event. Look for discoloration around the contact area, which can indicate elevated resistance. Re-torque screw terminals to the specified value (typically 0.5–0.8 Nm for 2.5 mm² conductors) if thermal cycling is evident.
Accelerated Aging and Test Data
Cablein validates every production batch against salt-spray testing per ISO 9227 (500 hours) and xenon-arc UV exposure equivalent to 25 years of outdoor service. Insulation resistance must exceed 500 MΩ at 500V DC after aging. These tests are documented and available to EPC procurement teams on request.
Staying Ahead of Evolving Standards
IEC 62852 covers PV connector interoperability; UL 6703 governs connectors for photovoltaic systems in North America. Both standards are under active revision. Cablein's engineering team monitors committee drafts and updates product designs ahead of published amendments, so your installed base remains compliant through the full project lifecycle.
Conclusion
The BC05 PV AC waterproof connector solves the real problems that solar EPC contractors and inverter brands have with their work: arc-risk from water getting in, missed checks because of missing certifications, and connector wear and tear in harsh environments. It has 300V AC and 12–40It has a rating range, an IP68 seal, a UL94-V0 housing, and dual TUV/CSA certification, which makes it a specification-grade part for business floating arrays, desert solar farms, private roofs, and offshore monitoring platforms. To protect project timelines and long-term asset performance, it is advisable to choose a properly approved and test-documented connection from the start.
FAQ
1. Can the BC05 be disconnected while the AC circuit is live?
No. Like all PV AC connectors, the BC05 must be disconnected only after the upstream AC breaker is open. Breaking a live AC connection causes arcing that damages contacts and creates a fire risk.
2. Which micro-inverter brands is it compatible with?
The BC05 is compatible with Enphase, APsystems, and Hoymiles AC bus systems, among others. Cablein can supply pre-assembled harnesses pre-configured for specific inverter port dimensions upon request.
3. What cable sizes does it accept?
Standard models accept 2.5 mm², 4.0 mm², and 6.0 mm² AC cables. Interchangeable internal sealing rings accommodate different cable outer diameters within each cross-section range.
4. How long does the seal last in a coastal environment?
Salt-spray testing per ISO 9227 confirms seal integrity after 500 hours of continuous exposure. Combined with the UV-stable PPO housing, this supports the 25-year lifecycle claim even in high-humidity coastal and offshore deployments.
5. Is a TUV-listed version available for European grid interconnection?
Yes. Cablein's BC05 carries TÜV Rheinland certification with a traceable file number, satisfying the documentation requirements of most European distribution network operators.
Partner with Cablein for Your Next Solar Project
Cablein has the BC05 PV AC waterproof connector in stock for fast delivery and can be customized for different inverter brands. It comes with full TUV and CSA documentation. Our engineering team helps you with your specifications from the sample stage all the way through production, whether you need a lot of connectors or AC cables that are already put together. Get in touch with us, a reliable BC05 PV AC waterproof connector supplier, to talk about bulk pricing, sample requests, or making a custom harness. You can email our team at nick@cableinco.com.
