LP24 Rugged USB-A Receptacle for Factory Floor HMI Applications

If you're designing or sourcing connectivity components for factory floor HMI systems, the LP24 rugged USB-A receptacle deserves your full attention. This industrial-grade, flange-mount waterproof USB connector from Cablein Technology is purpose-built for environments where a standard USB port simply won't survive. With IP67/IP68 sealing, USB 3.0 speeds up to 5.0 Gb/s, a four-hole flange mount for vibration resistance, and a temperature tolerance spanning -40℃ to +105℃, the LP24 waterproof USB connector addresses the exact failure modes that plague outdoor and factory-floor HMI equipment every day.

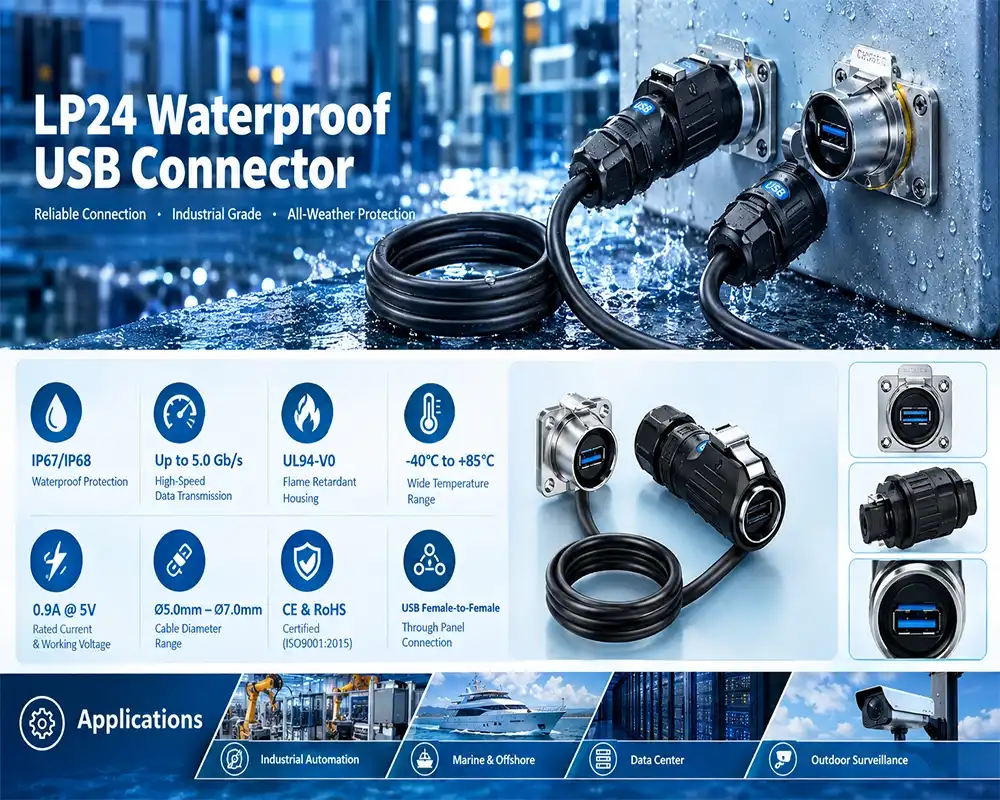

LP24 waterproof USB connector

Understanding the LP24 Rugged USB-A Receptacle

What Makes This Connector Purpose-Built for Industrial HMI?

The LP24 waterproof USB connector is not a consumer plug that has been changed. It has a female-to-female feed-through design, which lets data flow straight through the enclosure walls without affecting the sealing of the cabinet. With a 24mm mounting hole diameter and a four-hole flange design, the receptacle can be securely attached to aluminum, steel, or reinforced plastic panels. This is something that a snap-in or single-nut connection can't do consistently in settings with a lot of vibration.

Core Technical Specifications

Every hardware expert who needs to check this part needs real numbers. This is what the connector delivers:

Data rate: USB 3.0 SuperSpeed at 5.0 Gb/s for quick software changes and data pulls for diagnostics
Rated current: 0.9A at 5V power
Cable grip range: Ø5.0 mm to Ø7.0 mm, which fits most standard USB cable diameters used in OEM assemblies
Waterproof rating: IP67 as standard; IP68 (1 m/2 hours) available as an upgrade
Operating temperature: -40°C to +105°C — tested for use in the arctic and high-heat cabinet interiors
Housing flammability: UL94-V0 rated, which lowers the risk of fire spreading in control panels that are closed off
Certifications: Meets CE and RoHS standards, manufactured under ISO9001:2015 quality management

When building charge stations outside, roadside HMI booths, and display systems placed on vehicles, hardware engineers and structure engineers use these specs as a direct copy of their own.

Advantages of Using LP24 in Factory Floor HMI Applications

Durability Where Standard Connectors Fail

Factory floors are really bad for gadgets. Mist from coolant, oil vapor, metal particles, constant mechanical vibration, and changing temperatures can all speed up the wear and tear on connectors. IPC's Reliability of Printed Boards and Electronic Assemblies says that one of the main reasons why industrial automation equipment breaks down without warning is that moisture gets in through electrical connections.

Standard USB-A ports don't have any kind of IP protection. They can handle dampness but not soaking or washing down. The LP24 waterproof USB connector built-in panel gasket makes a squeezed water barrier at the mounting surface without the need for a second sealer. This gets rid of a common production quality-yield issue: uneven epoxy potting around the port. What makes this connector so useful for designing HMI panels are these:

Sealed panel interface: The gasket presses down evenly across the four-bolt flange, making a seal that is the same on all sides, even if the panel surface has some small flaws. There is no need to redo the sealer and there is no risk of a gap.
Gold-plated signal contacts: The corrosion-resistant gold plating keeps the contact resistance below 30 mΩ for the entire estimated service life of the connection, so the signal stays intact even in places with a lot of moisture or salt spray.
Vibration-locked mounting: Four M-series fasteners spread the clamping force across the panel for vibration-locked mounting. When vibrations happen, single-nut barrel connections slowly come loose, but this four-point design stays tight. Field repair teams say that four-hole flange connectors need a lot fewer retorque cycles than barrel-mount connections.
UL94-V0 housing: The flame-retardant housing goes out on its own 10 seconds after the flame is extinguished. This is an important feature for connectors that are placed inside control cabinets that are closed off, where thermal runaway is a worry for safety reasons.

Together, these properties reduce total cost of ownership by a lot more than what the price per unit connector suggests. A single field service call to a remote charging station or outdoor kiosk can cost several hundred dollars. Preventing one callback per year across a deployed fleet justifies the IP-rated specification without debate.

Installation, Maintenance, and Longevity Best Practices

Step-by-Step Panel Integration

There are no special tools needed to install the LP24 waterproof USB connector. The fixing hole is made with a normal 24mm panel punch or step drill. After that, the steps are easy to understand: place the gasket on the panel face, put the connector body through the hole, line up the four bolt positions, and tighten the fasteners evenly to the manufacturer's specifications. Front-mount installation lets workers connect the connector before running the wire inside, which makes the order of assembly on production lines easier.

Keeping the Connector Field-Ready

Routine maintenance centers on two checkpoints. In high-UV or thermal-cycling applications, check the gasket compression seal visually every six months. After two to three years of direct sun exposure, rubber gaskets start to break down, and replacing them before they fail is the best way to avoid this. Electrically, use a low-resistance meter to check the contact resistance once a year. If the value drifts above 50 mΩ, it means that rust is building up and the contacts need to be cleaned or the connection needs to be replaced. The female-to-female passthrough design lets technicians switch out the bulkhead unit without messing up the wiring inside the cabinet, which is a big plus in sealed cabinets.

Procurement Considerations for B2B Buyers

Evaluating the Right Supplier for Industrial Connectivity

When buying panel-mount USB ports, there are more factors to consider than just the unit price. The total risk of a sourcing decision for the LP24 waterproof USB connector is affected by how predictable lead times are, how flexible the minimum order quantity is, and how good the certification documentation is.

Cablein keeps more than 10,000 pieces of each SKU in stock, so most orders can be shipped within 7 to 10 working days. Engineers can order samples of new products before committing to large orders. Sample orders can be as few as 100 to 200 pieces, which is a reasonable minimum order quantity for HMI platform approval rounds that usually last two to four weeks.

Custom setups are a real feature, not just a marketing claim. Within the series, Cablein's engineering team supports different housing materials, different flange drilling patterns, and different interface types. OEM buyers who need non-standard panel layouts or cable diameters can talk to the technical team directly to come up with a solution that fits their needs. The pricing systems are clear, and the number tiering scales work as expected for programs that buy things once a year. To get a quote, email Cablein's sales team at nick@cableinco.com or go to connectorswaterproof.com.

Customer Insights and Future Outlook

What OEM Clients Are Reporting

When OEM hardware teams put the LP24 waterproof USB connector into outdoor payment kiosks and industrial HMI panels, they always talk about two results: there were no seal-related field failures in the first 18 months of use, and there was a measurable drop in warranty service calls related to USB port corrosion. These results are in line with what the connector was meant to do and show the level of dependability that purchasing managers need when choosing parts that are low in value on their own but high in terms of systemic risk.

The market for waterproof USB connections is moving toward USB 3.2 and USB4 protocols, and Cablein's research and development pipeline keeps up with these changes. The platform's mechanical design allows for interface changes while still being compatible with older panel cutouts. This protects the investment that OEM makers make in structural tooling when they standardize a connector size.

Conclusion

The LP24 waterproof USB connector solves a specific and expensive problem: it keeps high-speed data connection working through the wall of an equipment box, even when normal plugs would break. With an IP67/IP68 rating, a stable four-hole flange, a throughput of 5.0 Gb/s, and a working range of -40℃ to +105℃, this standard is a good choice for outdoor HMI, industrial control panels, charging infrastructure, and vehicle-mounted screens. With certifications from CE, RoHS, and ISO9001:2015, it meets the paperwork needs of global OEM programs.

FAQ

What is the difference between IP67 and IP68 on the LP24?

IP67 certification means that the LP24 waterproof USB connector is safe from water immersion up to 1 meter for up to 30 minutes. IP68 adds to this the ability to be submerged in water continuously under conditions set by the maker. For Cablein's version, this means 1 meter for 2 hours. IP67 is good enough for most outdoor HMI and charging station uses. The IP68 version should be chosen for installations near water features, wash-down zones, or places that could flood.

Can the LP24 handle USB 3.0 data rates in electrically noisy factory environments?

Yes. The metal shell protects the signal path from electromagnetic interference (EMI) in all directions. With gold-plated contacts that keep contact resistance below 30 mΩ, the device can maintain 5.0 Gb/s SuperSpeed USB 3.0 speed even when variable-frequency drives, servo motors, and high-current switches are close by.

What is the minimum order quantity for sample validation?

Sample orders usually start at 100 to 200 pieces, which is enough for a full two- to four-week hardware validation cycle. Cablein keeps more than 10,000 pieces of each SKU in stock, which helps with production replenishment orders.

Does the LP24 require special installation tooling?

There's no need for private tools. The mounting hole is made with a standard 24mm panel punch. Any calibrated torque tool can be used to lock the four-hole flange with normal metric screws.

Request a Sample or Quote from Cablein's LP24 Waterproof USB Connector Supplier

Cablein has the LP24 waterproof USB connector in stock and ready to send. Whether you need 100 samples to test a new HMI platform or a set amount for production, our team at connectorswaterproof.com will get back to you with clear prices and confirmed lead times. You can email us at nick@cableinco.com to talk about unique flange designs, OEM documentation packages, or different cost levels for large orders. The right part is the first step to reliable industrial connectivity. Let's talk about what that part is.
