QC20 Quick Disconnect Connector: Applications, Benefits, and Features

When installation speed matters as much as reliability, the QC20 quick disconnect connector delivers both. Designed for high-current power transmission in demanding environments, this industrial-grade electrical interface combines robust PA66 nylon construction with gold-plated brass pins and IP67/IP68 waterproof ratings. Whether you're deploying solar arrays, installing EV charging infrastructure, or maintaining heavy machinery, the QC20 quick disconnect connector streamlines wiring tasks while safeguarding against moisture ingress, vibration, and extreme temperatures. At Cablein, we've witnessed how this connector transforms project timelines and reduces maintenance headaches across LED lighting, new energy, and industrial automation sectors.

Understanding QC20 Quick Disconnect Connectors

The QC20 quick disconnect connector is a big step forward in the technology used to connect flexible electrical components. Instead of using screw terminals or soldered joints, this connector has an oversized quick clamp nut that lets installers make secure, watertight connections by hand, without any tools. The ergonomic grip works even when heavy-duty gloves are on or when your hands are oily. This is a useful feature that field technicians and production managers both like.

Core Technical Specifications

The QC20 quick disconnect connector is based on the idea that it should be stable for both electricity and the surroundings. It can handle major power lines for industrial equipment without worrying about voltage drop because it is rated for 500V DC/AC at 25A in 2/3/4-contact configurations. The 5/7-pin versions can handle 300V DC/AC at 20A, which gives you options for control circuits and data transfer. Each unit can withstand a dielectric test at 3KV DC for 60 seconds, and its insulation resistance is higher than 200MΩ at 500V. These numbers are good enough for quality management teams that are checking the failure rate control.

The temperature range for operation is -40°F to 105°F, so it can be used in Arctic sun farms and subtropical outdoor lighting setups without affecting performance. Injection moulding can handle cable sizes ranging from 3 mm to 12 mm, making it compatible with a wide range of wire thicknesses and jacket materials. This universal clamp design makes it easier for supply chain managers to keep track of inventory when they need to standardize parts for more than one product line.

Material Engineering and Durability

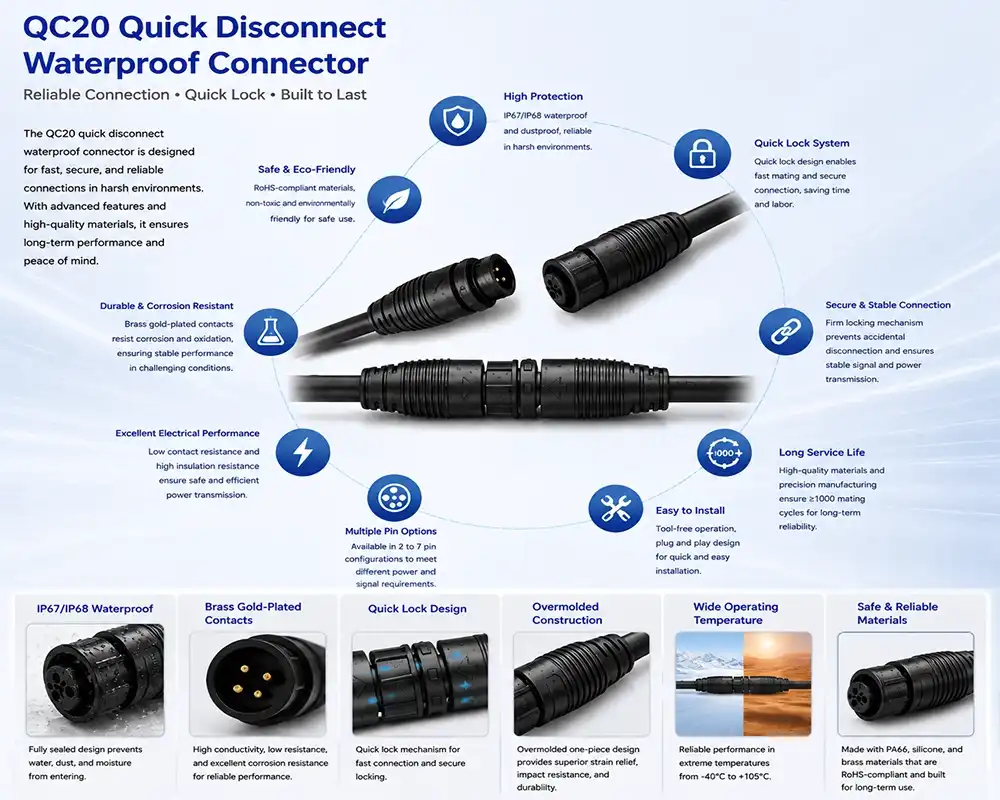

Each QC20 quick disconnect connector shell is made from PA66 nylon that is rated UL94-V0 for flame resistance. This is an important safety feature for high-temperature uses and electrical panels that are closed off. The solid brass pins that are gold-plated don't rust and keep their low contact resistance even after thousands of mating cycles. This directly addresses the concerns of the R&D engineers about the stability of the conductivity over time. The waterproof barrier that meets IP67 and IP68 standards is made up of a silicone sealing ring. This keeps dust, water, and short submersion from getting to the internal connections.

Overmolded cable construction gets rid of the need for field termination work, which used to be done by hand and could lead to mistakes that compromised the waterproof integrity. Total cost of ownership is something that procurement teams look at, and this factory-sealed design cuts down on installation labour hours and refunds for water entry failures, which is a problem that low-quality connectors often cause on outdoor projects.

Applications and Use Cases of QC20 Connectors

When stability is important, quick connection technology really shines in fields where it can't be compromised. We've teamed up with companies that make outdoor LED lighting. Their QC20 quick disconnect connectors are used to connect stadium floodlights, landscape path fixtures, and grow lights for plants. The IP68 rating makes sure that these connections will work even if they are washed with pressure, have sprinklers turned on, or flood during the winter. When an outdoor lighting business switched from using traditional waterproof glands to our overmolded QC20 quick disconnect connector assemblies, they cut repair calls by 40%. This shows that choosing the right connector has a direct effect on running costs.

New Energy Infrastructure Deployment

Solar energy system makers have to deal with some unique problems. Arrays are often spread out in rural areas where service calls are expensive, and the systems are exposed to everything from desert heat to salt spray at the coast. The QC20 quick disconnect connector connects photovoltaic panels to inverters. This makes it easy to quickly switch out modules when maintenance windows come up. Companies that make EV charging equipment use these connectors in pedestal installations. Being able to hand-tighten connections speeds up deployment times and makes up for the lack of skilled workers in emerging markets.

Companies that make energy storage systems like the high current capacity. They use QC20 quick disconnect connectors to connect battery packs, which need to be safe and not vibrate. The secure clamp mechanism keeps the contact pressure even when there is mechanical stress. This is an important performance feature that train transit equipment makers also count on for trackside electrical systems.

Industrial Automation and Control Systems

Robotics companies and PLC installers like that quick disconnect systems are flexible. Technicians can switch out sensor cables and actuator connections without having to shut down whole zones when production lines need to be rearranged. This organizational freedom cuts down on the costs of downtime, which is something that production managers work hard to avoid at all costs. Because the signals are stable, they can be used in industrial tracking tools where data security can't be compromised by loose links or EMI.

Security and surveillance integrators use QC20 quick disconnect connectors in smart city projects to connect outdoor CCTV systems. Traffic cameras on highway gantries can handle being hit by moving cars, changing temperatures, and being outside in the rain or snow. IP68 protection and safe mechanical locking make sure that cameras stay powered on and linked so that they can keep sending video streams to city control centers without stopping. These real-life situations back up the connector's design theory, which is to make installation easier while increasing stability under stress.

Comparing QC20 with Other Connector Types

Procurement workers often compare quick- Disconnect designs to more standard options when they are looking at connectivity solutions. Standard screw-terminal blocks need to be installed with tools, take time, and could come loose when the building shakes. Bayonet-lock connectors need to be perfectly lined up, which can be hard for field crews who are working in dark or confined areas. The QC20 quick disconnect connector's straight quick clamp design gets rid of these friction points, so you can use it without tools without losing any mechanical power.

Performance Against Industry Standards

Connectors from Amphenol and TE Connectivity are sold in high-end markets and have a history of reliability. Small- and medium-sized equipment makers, on the other hand, often need levels of customization that large-catalog providers can't afford to offer. Cablein has more than 15 utility model patents and an in-house research and development team that can make private moulds for custom pin setups, cable lengths, and jacket colors. This solves the problem of customization that standard goods can't.

The QC20 quick disconnect connector's ETL and CE certifications, along with its ISO9001 and RoHS-compliant making, show that it meets the international safety standards that customers who want to sell need. When quality management teams do checks of suppliers, these qualifications and proof of consistent waterproof testing methods are given the most weight. We check the integrity of all IPs before a shipment goes out. This is something that sets serious manufacturers apart from commodity suppliers who are more interested in volume than reliability.

Total Cost Analysis

When comparing connector options, smart purchasing managers look at more than just the unit price. They also consider how easy it is to install, how often it needs maintenance, and how long the product will last. When compared to multi-screw options, the QC20 quick disconnect connector's comfortable nut cuts installation time by up to 50%, which lowers the cost of labour per connection point. The gold-plated pins last longer than tin-plated contacts, which cuts down on the number of times they need to be replaced and the cost of keeping them in stock. When looking at the benefits of ordering in bulk, customers who order 10,000 or more units benefit from our stable stock levels and 7–10 day delivery windows. This maintains the reliability of the supply chain and keeps projects on schedule.

Procurement Guide: Buying QC20 Quick Disconnect Connectors

When looking for industrial QC20 quick- Disconnect connectors, you have to find a balance between technical compatibility and supplier reliability. The first step is to make sure that the electrical specs match the needs of your equipment. Check the voltage and current levels, pin count, and wire thickness to make sure they are all compatible. Before committing to large-scale buying, R&D engineers should ask for CAD models and wiring diagrams during the review phase to make sure the parts fit mechanically and are easy to integrate.

Working with Manufacturers and Suppliers

Authorised dealers and direct manufacturers both have their own benefits. Distributors offer combined shipping and a variety of stock, which is helpful when a project needs more than one type of connection. Working directly with manufacturers like Cablein gives you access to engineering support and customisation options that distributors usually can't offer. Our technical team answers design questions within 24 hours and can help OEMs and ODMs choose the best cable length, wire gauge for current capacity, and jacket material that will work with the chemicals that will be present in your application environment.

Negotiation for large sales should talk about more than just unit prices. Talk about stocking deals that guarantee availability during production ramps, ask for reserves of goods set aside for last-minute orders, and get clear on lead times for custom configurations. We keep more than 10,000 of each standard QC20 quick disconnect connector in stock, which lets us fulfill orders quickly, which is important for operations managers to keep production going. Custom solutions have flexible schedules that are in line with your project's goals.

International Compliance and Certification

For export projects, certifications other than basic safety marks are needed. You might need PSE certification for Japan, SAA certification for Australia, or TUV approval for European bids, depending on the market you're going to. Cablein keeps a list of foreign approvals for all of our product lines. This makes it easier for buying teams to manage rollouts in multiple regions. Every shipment comes with paperwork that proves it meets the requirements for RoHS and REACH. This makes clearing customs faster and meets the environmental rules that QA/QC departments have to check.

Warranty policies and customer service after the sale are what set trusted providers apart from transactional ones. We back up our QC20 quick disconnect connectors with full technical support, including help with installation, troubleshooting, and handling warranty claims. Long-term relationships work best when sellers care about their customers' success as well as just finishing orders.

Conclusion

The QC20 quick- Disconnect connector fixes important problems in the fields of LED lighting, new energy, industrial automation, and security infrastructure. It can be installed by hand, is waterproof to IP67/IP68 standards, can handle a lot of power, and has been proven to last in harsh circumstances. This makes it an engineered answer rather than a standard component. This connector platform delivers measurable value by reducing installation labor, increasing service life, and reducing the number of maintenance tasks needed for projects that need reliable operation in outdoor settings, vibration resistance in rail and transportation applications, or customisation for specific power transmission needs.

FAQ

What voltage and current ratings should I specify for industrial equipment?

The QC20 quick disconnect connector can handle 500V DC/AC at 25A for 2/3/4-contact versions. It can be used for heavy machinery and EV chargers' main power feeds. At 300V DC/AC and 20A, lower-current control circuits with 5 or 7 pins can work. Check these specs against the power needs of your tools to make sure they have enough ability with a safety margin.

How does the IP68 rating differ from IP67 in practical applications?

IP67 connectors can handle being submerged in water up to 1 meter deep for 30 minutes. This is enough time for outdoor installations that get wet and rainy sometimes. IP68 versions can be submerged continuously for more than 1 metre, which is important for underwater lighting systems and other uses where the parts will be in water for a long time. Pick the rating based on how exposed you are to the surroundings in the worst event.

Can I customize cable length and connector configuration?

Of course. Cablein can customize everything, from the length of the cable to the wire gauge, jacket color, and pin arrangement. When standard designs don't meet your mechanical or electrical needs, our engineering team works together to make a custom mould.

Partner with a Trusted QC20 Quick Disconnect Connector Manufacturer

Cablein has been making waterproof industrial connectors for nine years and can help you with even the most difficult jobs. We are an ISO9001-certified company with approvals from ETL, CE, PSE, and SAA. Our QC20 quick-connection-connector solutions meet international safety standards and give you more customization options than big-box stores. Our 6,000 ㎡ site in Shenzhen has high-tech production lines and more than 200 professionals who make sure the quality your QA teams need.

If you choose Cablein as your QC20 quick disconnect connector supplier, you can get fast prototypes, a stable inventory of more than 10,000 units per item, and delivery partnerships with UPS, DHL, and FedEx for easy shipping around the world. Our technical support team is ready to help you make the most of your interconnection strategy, whether you're expanding EV charging networks, building smart city infrastructure, or improving industrial automation systems. You can talk about your needs, ask for samples, or set up an engineering consultation at nick@cableinco.com. We can help you turn connectivity problems into competitive advantages.
