RJ45 Waterproof Connector Guide: 5 Critical Outdoor Tips

When outdoor network infrastructure faces rain, dust, and temperature extremes, your connectivity solution needs to deliver more than basic protection. The LP16 RJ45 wire-to-wire waterproof connector offers industrial-grade reliability with IP67/IP68 ratings, supporting Cat5e and Cat6 Ethernet standards in demanding environments. This guide walks you through five critical considerations that protect your investment, prevent costly failures, and ensure continuous data transmission where traditional connectors simply cannot survive.

Understanding LP16 RJ45 Waterproof Connectors: Specifications and Working Principles

Industrial networking connections have to face things that ordinary office equipment never has to. The LP16 series provides business-level Ethernet connections to areas where moisture, vibration, and temperature changes harm traditional solutions.

Core Technical Architecture

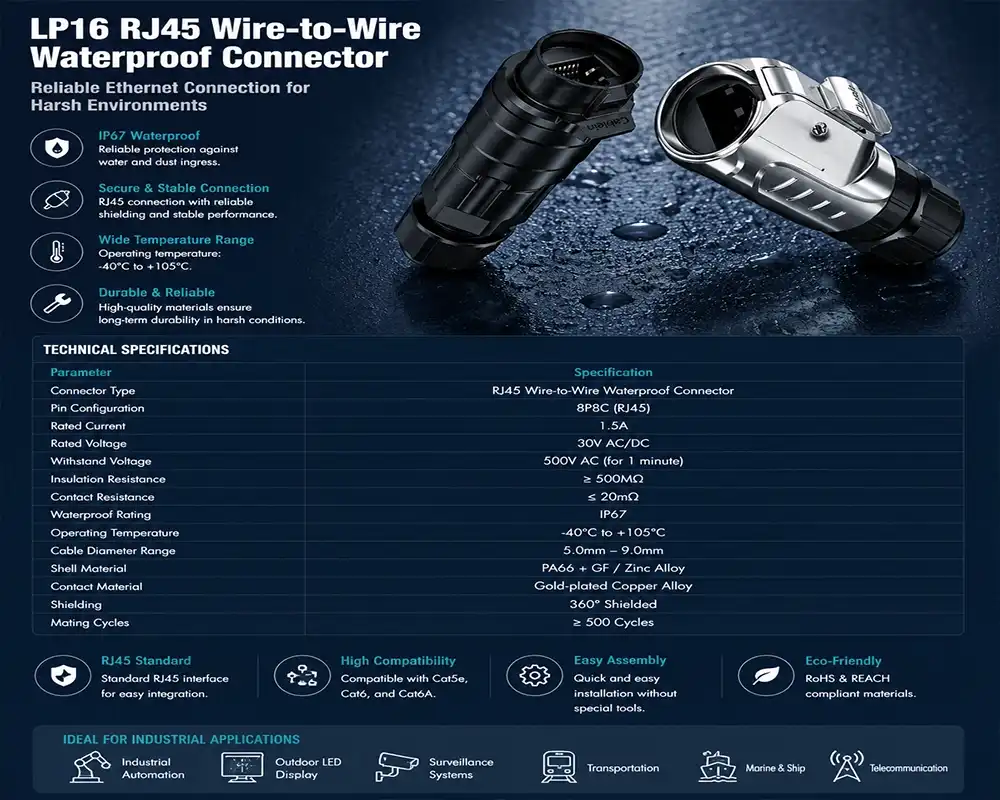

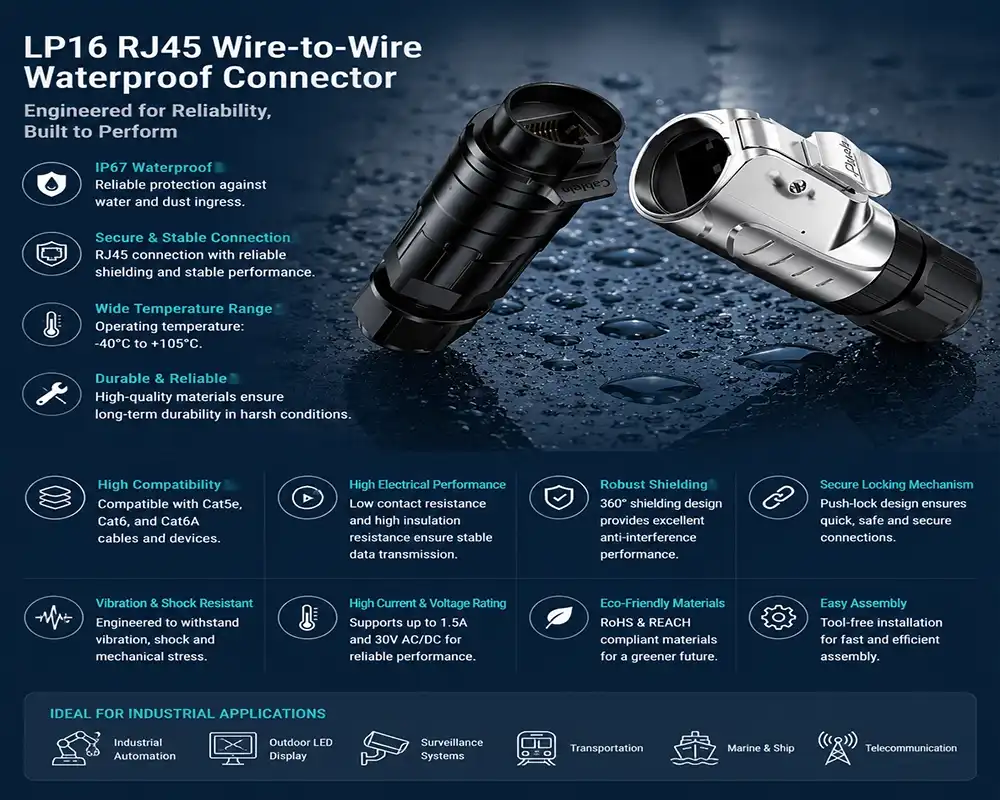

The LP16 has a wire-to-wire feed-through design and RJ45 female-to-female connectors, enabling cable expansion with no signal loss. The lens has a 16mm bayonet attachment for secure locking to prevent inadvertent dismounting during usage. Contacts are gold-plated up to 50 μ to prevent oxidation, keeping the contact resistance below 30 mΩ and providing robust signal transmission for more than 500 mating cycles.

Connector housing (PBT plastic, zinc alloy) UL94-V0 flame retardancy certification, -40℃~+105℃ reliable operation. Silicone sealing rings produce full environmental barriers with IP67 waterproof protection certified by immersion testing to IEC 60529. This sealed construction preserves the insulation resistance of more than 500 MΩ even under the high-pressure water jet.

Electrical Performance Capabilities

The LP16 meets Cat5e and Cat6 Ethernet standards with data speeds adequate for today's industrial applications. Rated for current up to 1.5A in Power over Ethernet (PoE) applications with a rated voltage of 125V AC and withstanding voltage up to 1000V AC. The shielded structure offers 360° electromagnetic interference protection, which is crucial for ensuring data integrity in electrically loud production situations where motor drives and high voltage equipment work continually.

Application Environments

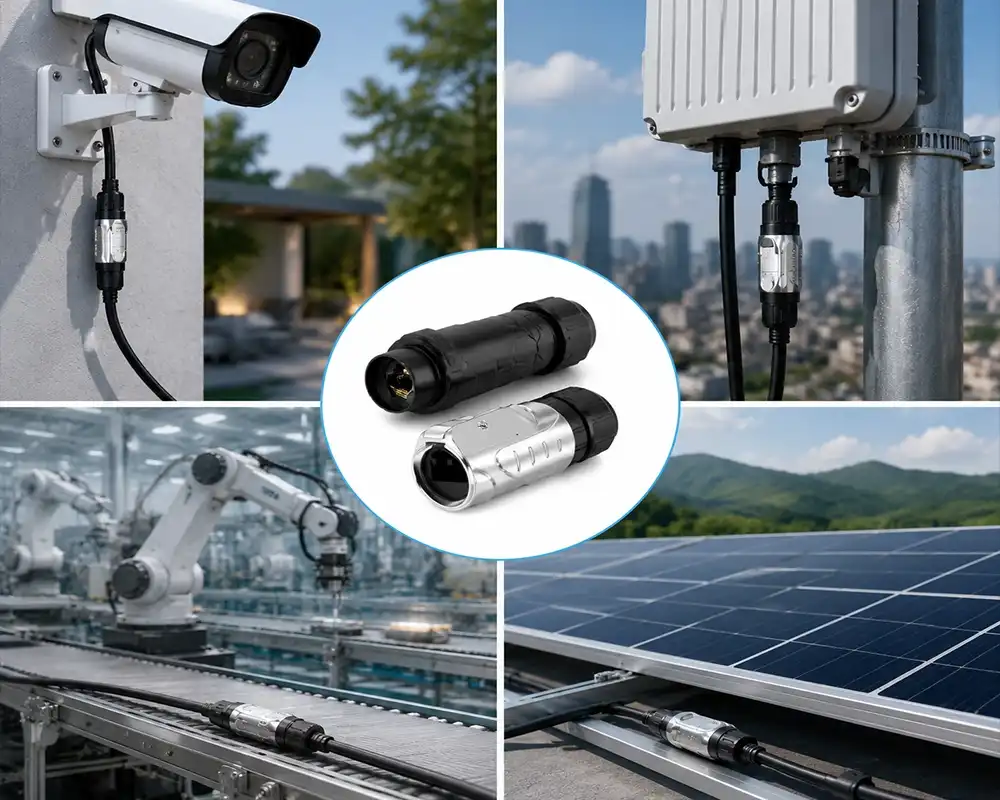

The connectors are designed for outdoor LED lighting systems where wetness is a risk to control systems, solar energy systems that need weatherproof monitoring connections, and industrial automation lines where vibration and chemical exposure are a challenge to normal networking equipment. Environmental factors would impair unprotected connections, but the LP16 is not affected by them. It may be used for security camera networks in smart cities, agricultural irrigation control systems, and rail transit communication infrastructure.

The snap-lock coupling system allows for field installation without the need for tools to save labor expenses and yet provide secure connections. This design consideration tackles genuine procurement pain points: installation efficiency significantly affects project deadlines and operations costs.

5 Critical Outdoor Tips for Using LP16 RJ45 Waterproof Connectors Effectively

The difference between watertight connections that last for years and ones that break prematurely is how you use them. We've seen both, across thousands of installations, and these five rules are what really work in the hard outside environment.

Verify Cable and Connector Compatibility

Please check your Ethernet cable's specs compatibility with the internal design of the connection before buying or installation. Cat5e and Cat6 cables have various twist rates and conductor gauges that impact how they fit into the RJ45 insert. Mismatched combinations cause air gaps that undermine the waterproof sealing and electrical performance. For shielded twisted pair (STP) cables, use the complete shielding version of your LP16 to guarantee that the electromagnetic protection is maintained during the whole connection route.

Cable jacket diameter is equally important. The connection cable gland is designed for certain diameter ranges. A smaller cable will let moisture intrusion pass, while a larger cable will not compress the seal enough. Check the cable's outside diameter before large-scale deployment and make sure it is within the manufacturer's stated range.

Follow Precise Installation Procedures

The proper assembling method is critical to waterproof integrity. Strip cable jackets to the right length as indicated in the installation instructions. If they are too short, the conductors cannot be seated properly; if they are too long, the wire is left exposed to moisture. After placing the conductors into the insert of the RJ45, visually examine that each wire extends to its terminal location before crimping or latching.

The sealing components need to be in the correct order and alignment. Put the cable gland and O-rings on the cable before terminating conductors; you can't add them later without beginning the whole procedure again. When tightening the cable gland, evenly torque until resistance is felt, then turn a quarter turn. Over-tightening distorts sealing rings and may actually diminish the efficiency of the waterproofing.

Press the snap-lock coupling firmly until you hear or feel the locking mechanism click into place. If it is just partially engaged, there will be holes allowing water to enter the sealed housing during pressure washing or submergence conditions.

Consider Environmental Exposure Factors

Every outdoor area has its own issues that go beyond just making sure it’s watertight. Coastal installations expose the metal components to salt spray corrosion; therefore, connections must be made of marine-grade materials and coated with conformal coatings. In agricultural applications, connections are exposed to fertilizers and pesticides of varied chemical compositions. Be sure to check that the connector’s housing material is resistant to the particular chemicals used in your application.

UV rays will cause various polymers to deteriorate over time with brittleness and ultimately seal failure. The LP16 UV-resistant housing will stand up to prolonged exposure to sunshine, but the installation should, if possible, not be subjected to unnecessary direct solar radiation. By mounting connections in shady places or beneath equipment housings, service life is extended without sacrificing maintenance accessibility.

Temperature cycling may cause expansion and contraction, which can loosen cable glands and threaded parts. Ensure cable glands are adequately torqued and sealing rings are properly seated by scheduling frequent inspections in areas with large daily temperature variations.

Adopt Routine Inspection and Maintenance

Even the most resilient waterproof connections should be periodically checked, especially in critical infrastructure applications where network disruption has serious operational or safety effects. Establish a quarterly inspection plan for outdoor installations to check for evident degradation of the seals, fractures in the housing, or wear of the locking mechanism.

During inspections, search for water droplets within clear connection bodies. This is a sign of seal degradation prior to full failure. Corrosion on locking rings or cable glands means moisture has gotten past outside defenses, and they should be replaced immediately before interior components sustain harm. Check sure connections are properly attached and that wires are not under tension or pulled at the point of entrance.

Have replacement sealing rings and backup connections in your maintenance inventory. If checks show early signs of wear, replacing O-rings and cable glands ahead of time is a lot cheaper than doing emergency repairs after a network breakdown. Document results that detect trends that may suggest environmental concerns needing mitigation or changes in installation process.

Select Connectors Based on Application Requirements

Not all LP16 RJ45 wire-to-wire waterproof connector connections are suited for every application. IP67 protection is suitable for above-ground installations in weather-sensitive regions and can endure short immersion and long-term rain exposure. IP68-certified versions can endure constant submersion, a need for below-ground vaults, maritime applications, or anywhere that might flood.

Certification standards are dictated by industry and market geography. For European markets, TUV certification is necessary for most solar systems, while for North American projects, ETL or UL recognition is the top priority. Before purchasing, check that your selected connection has certifications applicable to your market and application. This care helps avoid expensive project delays when inspectors reject non-compliant components in final approval procedures.

Custom wire lengths and pre-assembled harnesses save field labor needs and ensure consistent quality. If you have dozens or hundreds of connections to make, factory-terminated assemblies remove the variation that comes from field workers operating under time constraints or poor circumstances. The initial premium cost usually pays for itself in decreased installation time and fewer failures.

Comparing LP16 RJ45 Waterproof Connectors with Other Market Options

Understanding how LP16 compares to other options allows procurement professionals to make smarter selections that meet their performance specifications and budget.

Performance Against Standard RJ45 Connectors

Standard RJ45 connections are cheaper but are not protected from the environment. Moisture penetration produces oxidation that raises the contact resistance and causes packet loss and eventually breakdown of the connection. Unprotected RJ45 connections in outdoor settings will often fail within months, but correctly placed LP16 connectors will provide reliable operation for years. You have to weigh the cost of replacement labor, network downtime, and damage to any linked equipment against the original purchase price.

The standard connections also have no mechanical retention except for the little plastic lock, which breaks quickly under cable stress or vibration. The LP16’s bayonet-lock mechanism ensures secure retention in industrial applications where unintentional disconnection might pose safety dangers or production interruptions.

Evaluation Against LP20 and Alternative Waterproof Series

In certain situations, larger waterproof connection families, such as the LP20 series, are more advantageous. The larger housing diameter allows for longer cables and more interior room for unique setups, but at the expense of higher prices and mounting footprint requirements. The LP16’s small form factor is a lower-cost solution for projects that use regular Cat5e or Cat6 cables, without losing the performance you need.

Other competing waterproof RJ45 systems employ various locking techniques, e.g., threaded couplings vs. bayonet locks. Threaded designs give good pull resistance but take longer to install and must be carefully prevented from cross-threading. “The LP16 snap-lock coupling is the ideal mix of security and rapid installation, which is an ongoing concern by operations managers that we hear about.

Certification and Compliance Considerations

Industrial customers are requiring suppliers to have complete certification documents. The LP16 is TUV and CE marked under ISO9001:2015 and RoHS compliant, satisfying the fundamental standards for the European markets. If you are working on a project for North American clients, then connections with ETL or comparable recognition are helpful. However, certification depends on the particular variation of the product.

Sometimes competing items claim to be waterproof without formal IP rating certification and instead depend on marketing jargon like “weather-resistant” or “splash-proof.” Such imprecise words lack concrete testing requirements, leaving real levels of protection unknown. IP67/IP68 ratings verified give clear, measurable performance criteria that safeguard purchasers from unclear promises and probable field failures.

Procurement Guide: Buying LP16 RJ45 Wire-to-Wire Waterproof Connectors

With authentic components from reputable providers you can steer clear of fake items that might affect performance and safety. This procurement advice is based on the techniques industrial purchasers have found most successful.

Identifying Authorized Suppliers and Distributors

Contact manufacturers directly to learn their authorized distribution networks. Cablein Technology has a network of trusted partners that carry genuine LP16 connectors and provide technical assistance to guide you through your project lifecycle. Benefits such as warranty support, access to technical documentation, and the assurance that items fulfill specified requirements are available via authorized distributors.

While online B2B platforms provide simple sourcing choices, they need diligent supplier verification. Before making purchases, check for company licenses, quality certificates, and customer reviews. Request product data sheets and certification papers. Real suppliers will give you this with no problem; fake product suppliers will usually not be able to furnish you with real documentation.

Understanding Pricing and Lead Time Dynamics

Waterproof connector pricing reflects the engineering and quality control necessary for reliable outdoor performance. LP16 RJ45 wire-to-wire waterproof connector suppliers typically offer volume discounts starting around 100-500 pieces, with significant price improvements at 1,000+ piece quantities. Standard configurations often ship from stock within 7-10 days, while custom cable assemblies require 2-4 weeks depending on complexity and order volume.

Minimum order quantities may vary by provider and product configuration. Stock connections are available in quantities as low as 10-50 pieces; thus, they are great for prototype projects and modest installations. Tooling and setup expenses often demand minimums of 500-1,000 pieces for custom molding or specialized cable assembly. You want to schedule your buying around these criteria to maximize cost-effectiveness.

Request full quotes including unit price, tooling expenses for special work, and delivery charges. International exports add to logistical complexity, but established manufacturers have partnerships with trusted freight forwarders that are efficient at both air and sea shipping, ensuring your components reach on time and in excellent shape.

Custom Configuration and OEM Services

Standard LP16 configurations work well for many applications; however, customization can usually be leveraged for specialized tasks. And if you have in-house technical teams, our manufacturers may customize cable lengths, contact arrangements, housing materials, and other specifications to meet your exact needs. This flexibility is useful when connections are designed into proprietary equipment or when special environmental issues exist.

OEM collaborations extend beyond basic customization to private labeling, bespoke packaging, and interaction with your larger product ecosystem. Suppliers who provide complete OEM services become an extension of your engineering and production teams, partnering with you on design optimization and your efforts to differentiate yourself in the marketplace. As organizations gain trust and technical knowledge across a number of initiatives, these partnerships evolve.

Also consider the supplier’s patent portfolio and R&D expenditure in assessing OEM capabilities. Utility patent owners in the waterproof connection space have real technical capacity and not just a commodity resale capability. Cablein’s 30+ utility model patents represent the continuous innovation of rapid connection, solderless, and high-power waterproof technologies to meet the changing market needs.

Trusted LP16 RJ45 Connector Brands and Manufacturer Insights

Choosing a manufacturing partner affects not just product quality but also long-term supply chain stability and the availability of technical assistance. Knowing the differentiators of reputed manufacturers may aid customers with smart sourcing selections.

Quality Control and Manufacturing Standards

Leading connection manufacturers have multi-stage quality methods in line with international standards. The whole test package for LP16 RJ45 wire-to-wire waterproof connector comprises vacuum leak testing to confirm the seals are watertight, salt spray corrosion testing for 48 to 96 hours, mechanical cycling for over 500 mating operations, and electrical performance testing using calibrated test equipment. Protocols like this guarantee that each connection satisfies its specs before it ships.

ISO9001:2015 accreditation means that a firm has established quality management systems with methods for continual improvement. While the certification itself does not ensure product quality, in conjunction with certain product testing data and certification documentation, it confirms the organization’s dedication to consistent performance. When you buy crucial parts, ask for inspection reports and test certifications; good manufacturers will provide you these documents freely.

Manufacturing facility capabilities are equally important. Precision is required in the manufacture of waterproof connectors, achieved by using modern manufacturing equipment, climate-controlled conditions, and qualified technical personnel. Organizations that depend on outsourced production are not as nimble in responding to technical inquiries and special needs as organizations with facilities that bring R&D, manufacturing, and quality control under one roof.

Avoiding Counterfeit and Substandard Products

Unfortunately, the market for industrial connectors is plagued by counterfeit devices, which mimic real designs but use inferior materials and avoid important quality checks. These counterfeits work well initially, but then they break prematurely under environmental stress, causing warranty claims, equipment damage, and a danger to the reputation of consumers who inadvertently specify them.

Authentication tactics include comparing serial numbers or lot codes to manufacturers, assessing packing quality and paperwork completeness, and doing basic physical checks. True LP16 connections will have consistent molding quality without flash or sink marks, legible certification indications, and the locking mechanisms will operate smoothly mechanically. If you see prices that seem much too cheap, it's usually a sign you're looking at fakes or knock-offs distributed via unauthorized means.

By purchasing from authorized distributors or directly from manufacturers, you avoid the danger of counterfeits, and you have access to technical assistance, warranty coverage, and product roadmap visibility. The little cost premium over grey market procurement is more than offset by lower failure rates and complete supplier support.

After-Sales Support and Partnership Value

Strong after-sales support helps resolve installation, compatibility, and troubleshooting issues quickly. Long-term supplier partnerships provide application expertise, technology updates, and customized solutions. Clear 12–24-month warranties, extended coverage, and simple claims processes reduce purchasing risks and demonstrate supplier confidence in product reliability and customer success.

Conclusion

Outdoor Ethernet connectivity presents challenges that standard components cannot address, but selecting and deploying the right waterproof connectors ensures reliable network performance regardless of environmental conditions. The LP16 RJ45 wire-to-wire waterproof connector combines IP67/IP68 protection, gold-plated contacts, and snap-lock coupling in a design that balances robust performance with installation efficiency. Following the five critical tips—verifying compatibility, executing precise installation, addressing environmental factors, maintaining inspection schedules, and selecting application-appropriate specifications—protects your infrastructure investment while minimizing lifetime operational costs. Strategic procurement from certified manufacturers with comprehensive quality controls and technical support capabilities further ensures that your outdoor networking projects deliver the reliability your operations demand.

FAQ

1. How do I verify the waterproof rating of my LP16 RJ45 connector?

Authentic waterproof ratings come with certification documentation referencing specific test standards like IEC 60529. Request test reports from your supplier showing immersion testing results for IP67 (1 meter depth for 30 minutes) or IP68 (continuous submersion at manufacturer-specified depth). Reputable manufacturers provide these documents readily, while suppliers unable to produce certified test data likely offer unverified products.

2. Can LP16 connectors operate in extreme temperature environments?

The LP16 series operates reliably from -40℃ to +105℃, covering most outdoor industrial applications, including cold storage facilities and hot climate installations. The UL94-V0 flame retardant housing maintains structural integrity across this range, while gold-plated contacts prevent thermal expansion issues that plague lower-quality alternatives. Applications exceeding these limits require specialized connector variants with extended temperature specifications.

3. What installation errors most commonly compromise waterproof performance?

Improper cable gland torque causes most field failures—insufficient tightening leaves gaps for moisture ingress, while over-tightening distorts sealing rings. Incorrect cable jacket stripping length creates similar issues by preventing proper seal compression. Installing sealing components after conductor termination rather than before cable preparation forces technicians to compromise assembly sequence, nearly always resulting in inadequate environmental protection.

Partner with Cablein for Reliable Outdoor Connectivity Solutions

Industrial network reliability starts with choosing the right waterproof connector manufacturer. Cablein Technology specializes in LP16 RJ45 wire-to-wire waterproof connectors engineered specifically for demanding outdoor applications, backed by TUV, CE, and RoHS certifications that meet global compliance requirements. Our ISO9001:2015 certified facility maintains stock inventory exceeding 10,000 pieces per item, enabling 7-10 day delivery for standard configurations while our engineering team develops custom solutions for specialized project requirements. With 30+ utility patents in waterproof connection technology and comprehensive OEM/ODM capabilities, we serve as a strategic partner for LED lighting manufacturers, solar system integrators, industrial automation companies, and security infrastructure providers. Contact our technical team at nick@cableinco.com to discuss your specific outdoor networking challenges and discover how our waterproof Ethernet solutions protect your infrastructure investment while reducing installation costs and maintenance requirements.
