What is a QC16 multi-application waterproof connector?

When you're managing equipment installations in outdoor lighting, renewable energy systems, or industrial automation, water ingress can turn a straightforward project into a costly maintenance nightmare. The QC16 fast Lock waterproof connector addresses this challenge head-on. This circular interconnect device features a precision-engineered quick clamp mechanism that eliminates time-consuming screw threads, delivering tool-free assembly in seconds. Designed with IP67/IP68 sealing capabilities, it protects power and signal integrity against moisture, dust, and mechanical stress—solving the critical problem of connection failure in high-vibration, weather-exposed environments where traditional threaded connectors may loosen and compromise system reliability.

Understanding the QC16 Fast Lock Waterproof Connector

Connections that can handle punishment are needed in industrial settings. The QC16 fast Lock waterproof connector series achieves by carefully choosing the right materials and engineering them with great care. The housing of the connector is made of UV-stabilized PA66 nylon that meets UL94V-0 flame-retardant standards. It doesn't break down between -40°C and 150°C, even when exposed to heat cycles that would crack less durable materials. Inside, gold-plated solid brass pins keep contact resistance below 5m, so power transfer works well even after more than 1,000 mating rounds. The main seal is made by a silicone O-ring, and there are two waterproof sealing rings that give IP67 protection against short-term immersion and IP68 certification for continuous underwater operation when needed.

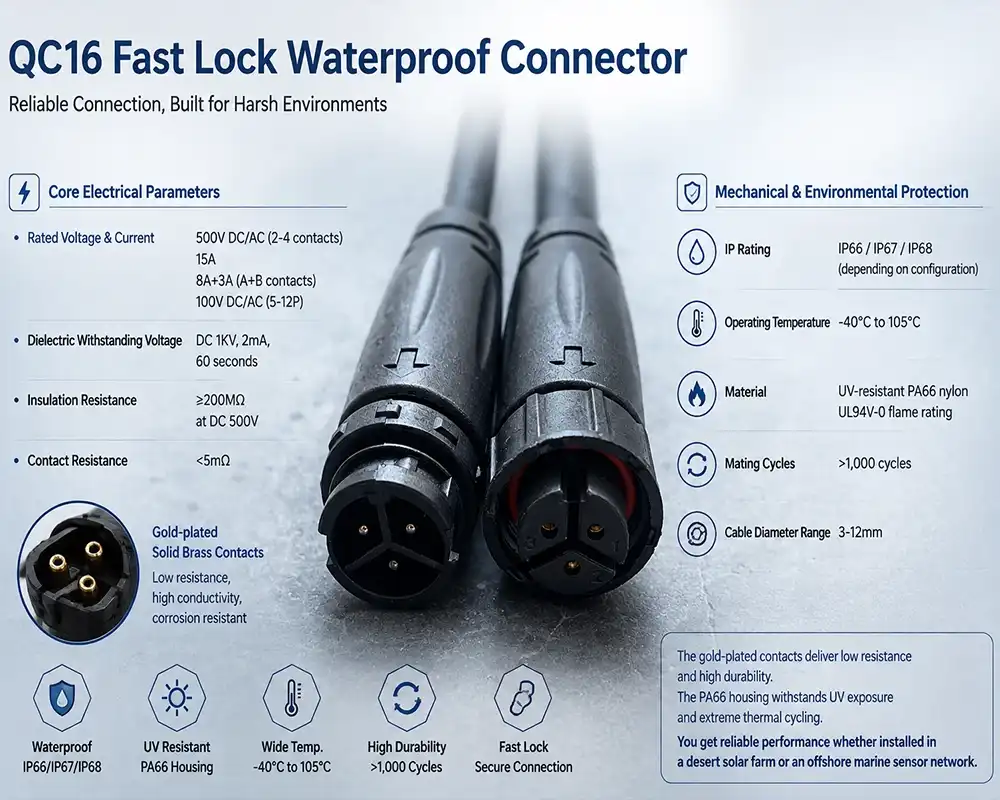

Electrical Performance Specifications

The electrical rates change based on the pin layout to meet the needs of a wide range of applications. Connectors with 2, 3, or 4 contacts can handle 500V DC/AC at 15A for uses that need a lot of power. On the other hand, connectors with a mix of A+B contacts can give 500V at 8A+3A for sending both power and signals. Higher-density 5-12 bit versions work at 100V DC/AC and have 8A/3A rates, making them good for sensor networks and control circuits. Dielectric withstanding voltage can reach DC 1KV at 2mA for 60 seconds, and insulation resistance is higher than 200MΩ at DC 500V. These specs meet strict safety standards in the industrial world and keep arcing from happening in dirty places.

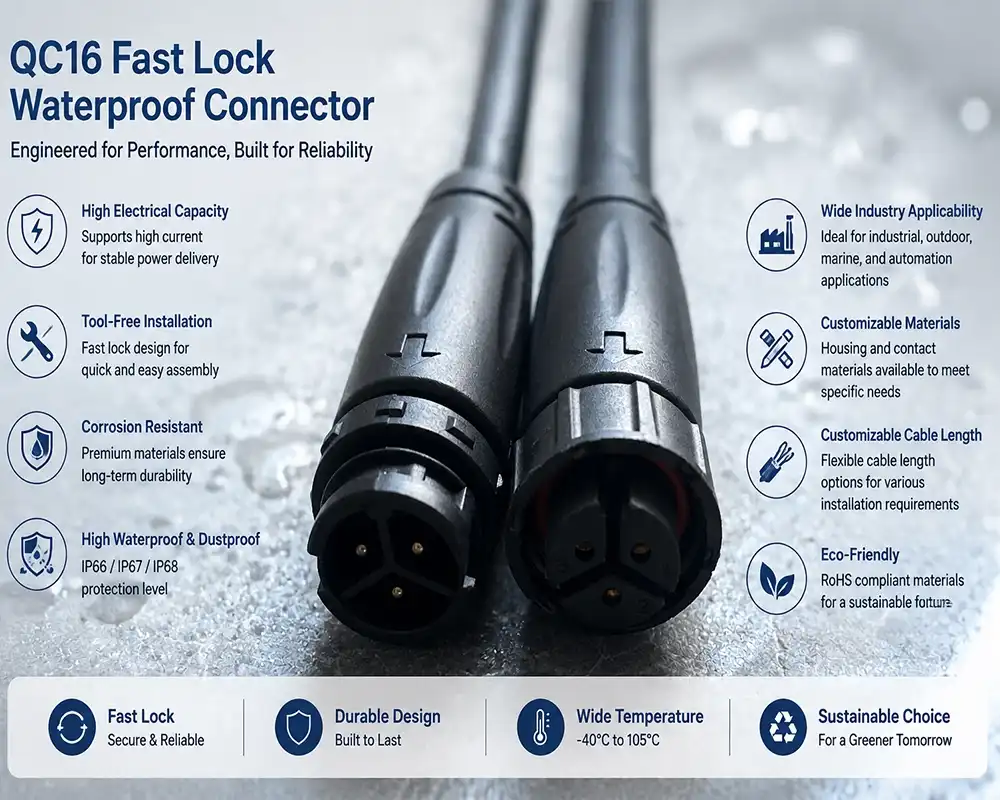

Fast Lock Mechanism Advantages

Compared to older ways of coupling, the straight quick clamp mechanism is a big improvement. Screw-thread connections need to be precisely aligned and rotated several times, but the QC16 fast Lock waterproof connector system uses a spring-loaded bayonet design that gives feel "click-to-confirm" feedback. This mechanical interlock won't back out when it's vibrated, which is a common way for things to break in transportation and mobile equipment. Installers like that it can work with cable diameters from 3 mm to 12 mm without the need for separate adapters and doesn't require any tools. When compared to solder-type connectors, pre-molded wire designs cut on-site assembly time by about 60%. This directly cuts down on labour costs while improving installation consistency across big projects.

Material Durability and Environmental Resistance

When connections are used outside, they are exposed to UV light, extreme temperatures, chemicals, and physical harm. The QC16 fast Lock waterproof connector's PA66 nylon housing has UV stabilisers built in that keep it from breaking down after years of being in full sunlight, which is important for architectural lighting and solar systems. When marine-grade standards are chosen, gold plating on brass connections stops galvanic corrosion in saltwater. For this rust resistance to be proven, salt spray testing usually lasts between 48 and 96 hours. The silicone O-ring doesn't harden or crack across the entire operating temperature range. This means that the seal stays strong whether it's installed in the arctic cold or the desert heat. These material decisions show that engineers care more about the total cost of ownership than just the buying price.

Comparing QC16 with Other Waterproof Connector Solutions

When making decisions about what to buy, it helps to know how the QC16 fast Lock waterproof connector stacks up against other technologies. Traditional screw-thread waterproof connections offer strong seals, but they take longer to install, which raises the cost of labour. The quick clamp cuts the time it takes to connect two cables from minutes to seconds. This is a big help when putting hundreds of units for smart city video networks or stadium lighting systems. The spring-loaded retention system makes it more resistant to shaking than bayonet-lock competitors. Its straight pass-through body also makes it easier to connect equipment to power sources with longer cables.

Performance Comparison with QC12 Series

The QC12 series is for uses that need small sizes and smaller current rates; the highest current it can handle is usually 10A. The QC16 fast Lock waterproof connector can handle larger cable gauges and increases its capacity to 15A. This makes it suitable for medium-power uses such as connecting outdoor LED drivers and EV charging stations. Both have IP67 certification, but the QC16 fast Lock waterproof connector has an extra IP68 sealing option for projects that need protection from submersion for longer than just a short time. In these versions, there are 12 pins instead of the usual 2–8 pins on a QC12, which lets you use a single connector for a lot of different signal and power combinations. These differences help with choosing based on the amount of amperage needed, available room, and the harshness of the surroundings.

Market Position Against Leading Brands

The QC16 fast Lock waterproof connector's competitive standing has been confirmed by independent testing. While high-end European names have higher prices, it offers similar waterproofing and mechanical durability at a lower cost-to-performance ratio, which is important for projects that need to balance quality standards with budget realities. Customer feedback from farm lighting installations shows that the connector can handle chemical fertilisers and high-pressure wash-downs, which is an area where some rival products failed to seal properly. The ability to customise cable length, wire gauge, overmold colour, and pin layout is on par with or better than what bigger makers offer, and the faster sampling response helps meet tight project deadlines.

Transparent Limitations and Use Case Fit

Not every connector is perfect for every use. The QC16 fast Lock waterproof connector's straight body design makes it best for running cables in a straight line, but right-angle adapters may be needed in tight spaces where cable routing needs to make bends right next to the connection point. Maximum current ratings work well for medium-power applications, but for situations with ultra-high power (more than 15A continuous current), you need to switch to heavy-duty industrial connector families. Pin density and individual contact current capacity are compared. More pins mean less current per contact. By knowing these limits, you can make smart specification choices that fit the connector's powers exactly to the needs of the application, without over-engineering or under-specifying.

Installation and Application Guide for QC16 Connectors

When installed correctly, QC16 fast Lock waterproof connectors last longer and systems are more reliable. First, check the ends of the cables for damage. Make sure the wire strands are still whole and that the insulation has been properly stripped to the right lengths without any nicks that could cause shorts. Line up the connector plug with the socket receptacle, making sure to pay attention to the keying features that stop the wrong polarity from being inserted. Put light pressure on it while turning it about 45 degrees until you hear a click as the spring-loaded locking device engages. This feedback lets you know that the mechanical locking is complete and that the O-ring is properly compressed. Once they are connected, gently pull on the cable to make sure they are securely attached. The connection should not come apart easily.

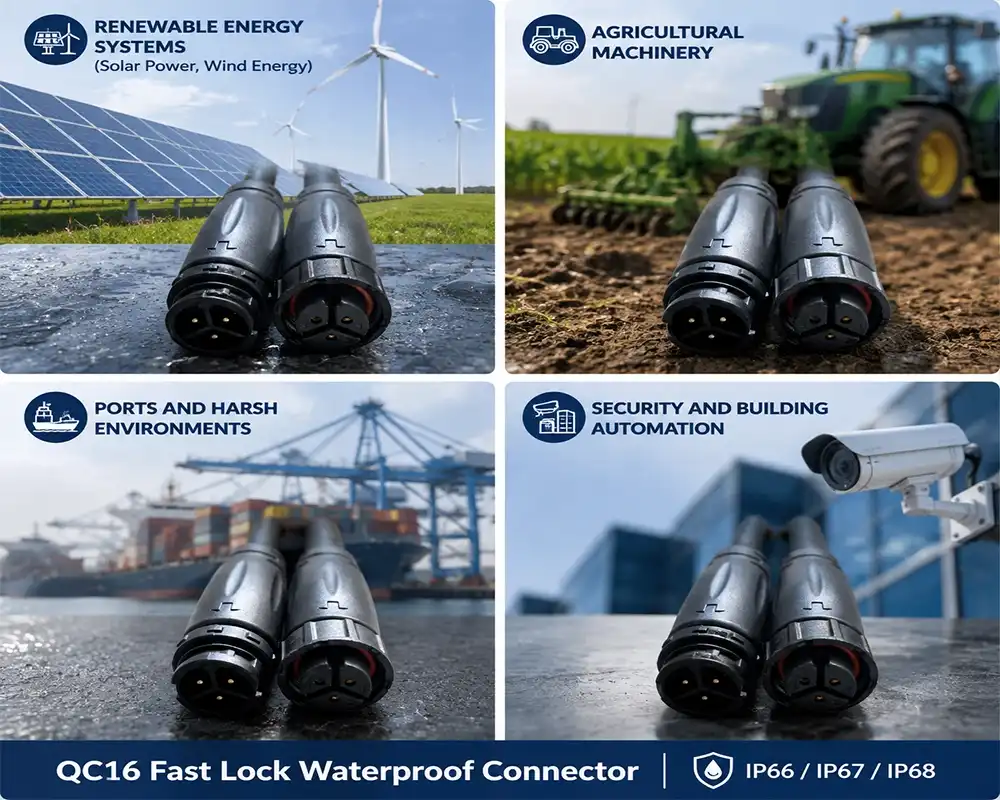

Diverse Industrial Application Scenarios

The QC16 fast Lock waterproof connector does great work in many areas. Rapid daisy-chaining of power between luminaires is good for outdoor LED infrastructure. The connection can handle heavy rain and UV exposure in digital signs installations and building facades. In precision agriculture, connectors are used in sensor networks and automatic watering systems, which need to be able to seal well because of chemical fertiliser exposure and wet soil. The fast lock feature in robotics and automated production lines is used in industrial automation. High-frequency vibrations can't damage connections that allow click-to-confirm installation in noisy manufacturing environments. Passenger information systems and platform safety tools that can handle vibrations and last longer are valued in rail transit uses.

Maintenance Protocols for Longevity

How often routine inspections are done depends on how bad the environment is. Checks every three months are enough for workplace settings that are inside, while checks every month are best for outdoor settings that are subject to extreme weather. Check O-rings for breaks, tension set, and contamination; replace them if they show signs of wear. Isopropyl alcohol and lint-free cloths can be used to clean contact surfaces and get rid of oxidation or environmental layers that make them less resistant to touch. Making sure the locking mechanisms work properly and don't need too much force is important because it could mean that the connectors are worn out and need to be replaced. Maintenance logs help find problems that keep happening and back up warranty claims when things break down early.

Quality Assurance and Warranty Coverage

CE and RoHS approvals show that the product meets European safety and environmental standards, and ISO9001:2015 quality control systems make sure that the process is always the same. Some of the protocols used for batch testing are IPX8 immersion tests to make sure the seal is solid, dielectric withstand voltage tests to make sure the contacts are electrically isolated, tensile strength tests to make sure the cable stays in place against pull forces, and thermal shock tests to make sure the material stays stable during rapid temperature changes. Most warranties cover manufacturing flaws for 12 to 24 months, but longer warranties are available for large buyers who sign long-term supply agreements.

Procurement Considerations for B2B Buyers

QC16 fast Lock waterproof connector sourcing methods have a big effect on how much a project costs and how long it takes to finish. Authorised distributors keep stock in their own regions, which lets standard configurations be quickly filled. Usually, shipping happens within 7–10 business days. Directly working with the maker is best for big projects that need to be customised, like those that need different pin counts, custom wire assemblies, or private mould development for special uses. Different distributors have different minimum order amounts. For testing, distributors often let you buy just one piece, but factory-direct sales may need at least 500 to 1,000 pieces to justify the cost of special tools. For urgent needs, air freight speeds up delivery, while sea shipping lowers handling costs per unit for large orders that can be scheduled at any time.

Pricing Analysis and Value Assessment

The price per unit depends on the number of pins, the current rate, and how complicated the customisation is. The cheapest way to get started is with standard 2-4 pin configurations at base specifications. Costs go up gradually when you add features like higher temperature ratings, IP68 sealing updates, or wire lengths that aren't normal. Volume discounts usually start to apply when you buy 1,000 pieces or more, and you can get even bigger discounts when you buy 10,000 pieces or more every year. When procurement managers look at prices, they should think about the total cost of ownership. For example, a connector that costs 15% more but cuts assembly time by 50% saves money in the long run because it costs less to hire workers. In the same way, longer service life cuts down on the number of replacements needed and the costs of maintenance downtime.

Supplier Certifications and Support Capabilities

By doing your research on a supplier's skills, you can avoid problems with quality and safety. Instead of just believing what the seller says, check the ISO9001:2015 certification with third-party registries. Make sure that the product certifications (CE, ETL, PSE, SAA, TUV) match the rules in the countries you want to sell to. Connectors that don't have the right certifications may fail customs clearance or project inspections. Check how responsive the technical support is. Reliable suppliers offer engineering advice during the development of specifications, rapid prototyping for proof-of-concept testing, and responsive service after the sale to deal with problems that come up during installation in the field. Long-term partnership value often outweighs small price differences when suppliers show consistent quality, on-time delivery, and the ability to work together to solve problems throughout the lifecycle of a product.

QC16 Connector Brand and Supplier Reliability

The image of the manufacturer affects the long-term success of a project beyond the initial QC16 fast Lock waterproof connector product specs. The top manufacturers are always putting money into research and development. They have more than 15 patents covering new quick-connect technologies, solder-free termination technologies, and high-power waterproof designs. Automatic testing equipment is used in production sites that meet international standards to make sure that the waterproofing and mechanical soundness are checked 100% of the time. This dedication to quality leads to lower failure rates in the field—independent studies show that premium connectors have failure rates below 0.5%, compared to 3-5% for cheaper alternatives. This has a direct effect on system uptime and maintenance costs.

Customer Success Stories and Real-World Validation

Case studies give real-world proof of claims about performance. Traditional screw-thread connectors were swapped out for QC16 fast Lock waterproof connector units in twelve stadiums as part of a major lighting retrofit. This cut the time it took to install each fixture from eight minutes to less than two minutes, which allowed the contractor to finish the project three weeks early. An farm robotics company said that after two growing seasons of fertiliser exposure and daily high-pressure washing, none of the 5,000 units they had put had any connector failures. Transportation infrastructure projects showed that the link could withstand more than 50,000 shaking cycles in tube cars without coming loose or losing its seal. These confirmed results give buying teams more confidence as they look at similar operations.

Building Reliable Supplier Partnerships

Structured evaluation is needed to build reliable supply relationships. Ask for references from suppliers' current users in your business segment. In particular, ask about how well the supplier handles quality problems, how fast they can deliver, and how well they can adapt to changes in the design. To avoid buying fake goods, check directly with the manufacturer to see if the dealer is an authorised one. Unauthorised distributors may offer good deals, but they can't promise that the parts they sell are real or honour warranties. Check out the communication infrastructure. Vendors with English-speaking technical teams, multiple ways to get in touch (email, phone, messaging platforms), and response times that work with different time zones make it easier to work together than vendors who need translation layers or only work during conflicting business hours.

Conclusion

The QC16 fast Lock waterproof connector can be used in a variety of situations and is waterproof for multiple applications. It is designed in a way that makes it easy to install, protects against the elements, and works well for a long time. Its quick clamp mechanism doesn't need any tools, it can seal up to IP67/IP68, and it can be customised to fit the needs of LED lighting, renewable energy, industrial automation, and security infrastructure projects. When choosing suppliers, give more weight to companies that have ISO9001 quality systems, full certifications, quick expert help, and a history of on-time delivery. When you do good procurement, you look at the total cost of ownership, which includes unit price, installation efficiency, failure rates, and the value of the supplier partnership. This helps you find solutions that meet both short-term project needs and long-term operational needs.

FAQ

What waterproof protection do QC16 connectors provide?

QC16 fast Lock waterproof connector plugs are certified IP67, which means they can withstand being submerged in water up to 1 metre deep for 30 minutes without getting wet. Optional IP68 versions can work continuously underwater at depths specified by the manufacturer, usually 2 to 3 meters. This makes them good for marine and underwater robotics applications. The two closing rings work together to keep out water, and the sealed cable opening stops water from wicking along the conductor strands.

Can QC16 connectors operate in extreme temperatures?

The standard operating range is from -40°F to 105°F, but there are versions that can handle temperatures up to 150°F that are designed for high-temperature areas like engine compartments or industrial ovens. Low-temperature performance keeps the integrity of the seal and the conductivity of the contact well below freezing, which supports winter setups outside and cold storage facilities. Thermal shock testing makes sure that connectors are stable during sudden changes in temperature. This makes sure that the equipment can be used both indoors and outdoors.

How does QC16 pricing compare to other IP67 connectors?

These connectors are in the middle of the price range—about 15 to 25 percent less than high-end European brands but better in terms of quality and certifications than cheap Asian brands. Volume pricing cuts unit costs by a lot; orders of 1,000 or more pieces get close to the prices of cheap brands while still performing better. A total cost study that favours faster installation and lower failure rates often justifies the investment over the cheapest options that cost more in upkeep over time.

Partner with Cablein for Reliable QC16 Fast Lock Waterproof Connector Solutions

Since 2017, Cablein Technology has engineered industrial connectivity solutions trusted across 100+ countries. Our collection of QC16 fast Lock waterproof connectors is over 10,000 pieces per configuration, enabling rapid fulfillment within 7-10 days while custom orders adapt flexibly to your project specifications. As a supplier backed by ISO9001:2015 certification and comprehensive ETL, PSE, SAA, CE, RoHS, and REACH compliance, we deliver quality assurance you can verify. Our engineering team provides 24-hour technical support, OEM/ODM customization for cable length, pin configuration, and housing specifications, plus responsive communication ensuring your questions receive detailed answers promptly. Contact nick@cableinco.com to discuss your application requirements, request samples, or obtain volume pricing for your next deployment. Let's build connections that perform reliably wherever your projects demand.
