What IP ratings are typical for M25 overmolded waterproof connectors?

When evaluating M25 overmolded waterproof connectors for demanding applications, IP67 and IP68 ratings represent the most common industry standards. These ratings ensure comprehensive protection against solid particles and water ingress across outdoor lighting, industrial automation, renewable energy systems, and harsh environmental installations. While IP67 guarantees submersion resistance up to one meter for 30 minutes, IP68 provides extended submersion capabilities, making it ideal for long-term underwater or permanently wet environments. This distinction proves critical when specifying connectors for projects requiring reliable electrical performance under challenging conditions.

Understanding IP Ratings and Their Importance for M25 Overmolded Waterproof Connectors

To find your way around connector specifications, you must first decode IP ratings, which are a universal language used to describe environmental protection capabilities. This standard method makes it easier for engineers and purchasing teams to choose parts that meet business needs without sacrificing safety or durability.

What Do IP Ratings Actually Mean?

According to IEC 60529, the IP rating system uses a two-digit style. The first digit shows protection against solid particles (0–6 scale), and the second number shows protection against liquid ingress (0–9 scale). Industrial M25 overmolded waterproof connectors with an IP67 or IP68 rating completely block out dust (first number 6) and offer various levels of water immersion protection. This classification takes the guessing out of choosing, and it lets expert teams match the product's abilities to specific environmental conditions, like rain, dust storms, or short-term flooding.

Why Do IP67 and IP68 Dominate M25 Connector Applications?

Because they have strong sealing systems, M25 overmolded waterproof connectors usually get IP67 or IP68 approval. The 25mm metric thread width can fit wire sizes from 7mm to 15mm and can hold heavy multi-conductor cables while keeping the seals tight. We've seen that outdoor LED lighting makers like IP67 for landscape installs that get wet from sprinklers and rain, while solar array installers prefer IP68 for ground-mounted systems where connectors might come into contact with standing water during yearly flooding. These scores directly mean lower upkeep costs and longer operating life in a wide range of climates.

The Role of IP69K in Specialized Environments

IP69K certification goes beyond standard ratings to meet the high-pressure washdown needs of industries like food processing and pharmaceutical manufacturing. Even though this grade isn't as common for M25 overmolded waterproof connectors as it is for smaller industrial forms, it's useful when equipment is regularly cleaned with chemicals or steam. This difference is important because IP68 connectors can handle being submerged in water for a long time, but they might not be able to handle the high-temperature, high-pressure jet spray tests that IP69K approval requires.

Key Factors Influencing IP Ratings in M25 Overmolded Connectors

Certified waterproof performance takes precise engineering at many levels, from choosing the right materials to the right way to make them. Knowing about these things helps buyers judge what suppliers say and make sure they can be relied on in the long term.

How Overmolding Technology Creates Superior Seals?

Through injection molding, the overmolding process combines the wire and connector housing into a single sturdy unit with no assembly breaks. Field-wireable joints depend on mechanical compression, but factory-produced overmolded designs don't have any weak spots where water could get in. Heavy-duty PA66 nylon housings are injected around prepared wire assemblies when we make these M25 overmolded waterproof connectors. This makes sure that the parts are molecularly bonded to each other. The "wicking effect" happens when water moves along the cable strands and into the electronics. This method stops this from happening, which is a common way for traditional M25 overmolded waterproof connectors to fail.

Material Selection and Gasket Engineering

Silicone O-rings placed at key junctions act as extra closing layers, keeping their flexibility over a temperature range of -40°C to 150°C. Gold-plated solid brass pins don't rust and have low contact resistance, so voltage drops don't happen in wet places where copper contacts aren't treated. The engineering-grade nylon housing, precision-molded cable entry, and elastomeric seals all work together to keep outside elements out. As required by ASTM B117 standards, testing protocols put each assembly through a vacuum leak detection and salt spray exposure to make sure it is waterproof before the product is released.

Testing Standards That Validate IP Claims

Manufacturers with a good reputation check IP ratings using IEC 60529 test methods that spell out limits for immersion depth, time, and water pressure. For IP67 tests, the device must be submerged in water up to one meter deep for 30 minutes without any measured ingress. For IP68 approval, the device can be submerged in water for as long as the manufacturer specifies, which is usually three meters for one hour in industrial M25 overmolded waterproof connector uses. We use strict inspection procedures that include testing the dielectric at high voltages (3KV for 2-pin configurations and 2KV for multi-pin configurations) and making sure the insulation resistance is greater than 500MΩ at 500V DC. Instead of relying on sample batch testing alone, these thorough checks make sure that every connector that leaves our facility meets the promised specifications.

Comparing M25 Overmolded Waterproof Connectors with Other Connector Types Based on IP Ratings

Overmolded parts have clear benefits over field-assembly options because they are sealed at the factory. Installers of traditional panel-mount connectors have to put cables through glands, terminate wires, and make sure the gaskets are properly seated. These are all steps that can be done wrong, which can affect the final waterproof performance. Our M25 overmolded waterproof connector kits come as units that have already been tested. This means that there are no mistakes in the field that could lower the IP rating. We work with a solar energy contractor who said that moving from field-assembly connections to pre-wired overmolded solutions for their utility-scale projects cut installation time by 40% and eliminated all waterproofing failures.

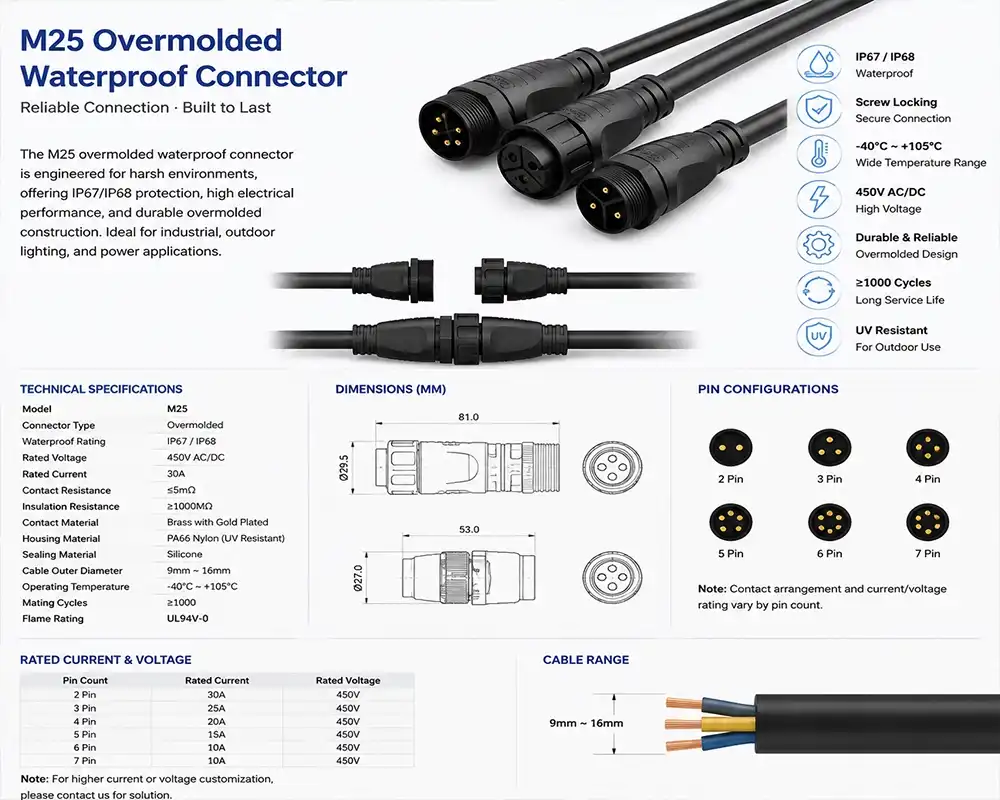

The thread size affects the level of protection that can be used and the cable's capacity. M20 connectors are better for lighter uses with smaller wire diameters. M25 overmolded waterproof connectors, on the other hand, can handle conductors with an outer diameter of up to 15 mm and can handle higher current loads (20–32A based on pin count) without losing their waterproof integrity. The bigger thread contact gives the cables more mechanical holding force, which is very important when the cables are tensed up because of moving equipment or heat expansion. This mix of handling power and protecting the environment is especially helpful for transportation building projects that need to be resistant to shaking and waterproof.

Some closing ability is lost in quick-connect versions to make installation faster; they usually get IP67 ratings instead of IP68 ratings. The push-lock mechanisms add more mating surfaces where ingress could happen if the connections aren't fully seated. But these connectors are 60–70% faster to install than threaded versions, which makes them a good choice for large-scale LED lighting projects where the cost of labour is higher than the small difference in waterproof rating. Total cost of ownership is lowest when the connector style is matched to project priorities, such as installation efficiency vs. maximum environmental protection.

Practical Guidance on Selecting M25 Overmolded Waterproof Connectors Based on IP Ratings

To turn technical specs into buying choices, IP grades need to be in line with how things will actually work, the budget, and the processes for checking out suppliers. Strategic selection keeps things from being too detailed, which drives up costs, or too general, which leads to early mistakes.

Matching IP Ratings to Application Requirements

When used indoors near areas that are cleaned, industrial automation equipment usually works well with IP67 connectors, which are less expensive than IP68-rated options. Agricultural lighting systems for vertical farms, on the other hand, need IP68 protection in places where it is always humid and there are occasional splashes of water. We tell our customers to think about the worst possible exposure cases instead of the most common ones. This way, they can choose M25 overmolded waterproof connectors that will work with the toughest conditions their equipment will face over its lifetime. A rail transit client found that their trackside control cabinets would flood during heavy storms. Upgrading from IP67 to IP68 connectors stopped the failures that were happening all the time and costing a lot of money to fix.

Balancing Performance Against Total Cost of Ownership

Unit price differences between IP67 and IP68 connections are usually between 15% and 25%, but this comparison doesn't take into account the costs of repairs and replacements. When M25 overmolded waterproof connectors fail because they aren't waterproofed properly, they need emergency service calls, equipment downtime, and reinstallation work that costs a lot more than the initial savings. We advise procurement teams to figure out the total costs of ownership, which should include expected failure rates, replacement labour, and lost business time. This study often shows that higher-rated connectors are better value, even if they cost more up front. This is especially true in remote sites where getting service is hard and costs a lot.

Verifying Supplier Claims Through Certification

Requesting certification paperwork removes reliable makers from sellers who make promises that can't be backed up. When you look for ETL, CE, or TUV testing reports, make sure that they include specific IP rating verifications along with general product approvals. Our M25 overmolded waterproof connectors are certified to meet ISO9001:2015 production standards and are compliant with RoHS and REACH. Test data is also provided upon request. Before placing a large order, we recommend that buyers ask for test samples to be sent to a third party for independent confirmation. This protects against false specifications and makes sure that the product works with existing systems.

Installation and Maintenance Tips to Preserve IP Ratings of M25 Overmolded Waterproof Connectors

When put or kept incorrectly, even the highest-rated connectors lose their ability to protect. By following tried-and-true installation and inspection routines, you can get the most out of your M25 overmolded waterproof connector investment and avoid failures that could have been avoided.

Best Practices for Maintaining Waterproof Integrity

For proper mating, you need to use the right amount of torque to compress the sealing surfaces without making the threads too tight. We recommend 2-3 Nm of torque for M25 coupling nuts. This can be done with measured torque tools that keep gaskets from getting damaged by too much force. Installers need to make sure that the strain release points on the cables are still in place, since mechanical stress can move through overmolded joints and affect the wire terminations inside the cable. Outdoor installations benefit from extra UV-resistant cable sleeving on runs that are exposed to the elements. This makes the cables last longer than the connectors' natural weather resistance. Another layer of protection is added by routing cables so that water doesn't pool near connection points. This is especially important in situations where M25 overmolded waterproof connectors are mounted so that they face downwards.

Inspection Schedules and Common Failure Indicators

Setting up visual checks every three months for outdoor installations finds problems before they become major problems. Check for discolouration around overmolded joints that means water got in, cracks in the housing materials caused by UV damage, or threaded couplings coming loose from shaking. Thermal imaging scans can find corrosion-related high-resistance links, which show issues that can't be seen with the naked eye. After putting in place systematic inspection protocols for their outdoor camera power connections, a security video integrator cut field failures by 80%. These protocols caught early-stage decline before the circuit failed completely.

Troubleshooting and Repair Considerations

For M25 overmolded waterproof connectors, replacing them is usually a better deal than trying to fix them when their waterproofing starts to fail. Field repair is not possible without special tools because the integrated design gives better starting performance. Keeping enough extra parts on hand for important uses cuts down on downtime when replacements are needed. We keep more than 10,000 pieces of each common item setup in stock, so regular restocking orders will be delivered in 7–10 days. Custom cable systems have lead times of 3–4 weeks, based on how complicated the specifications are. This means that projects with tight installation dates need to plan ahead.

Conclusion

In industrial, green energy, and outdoor lighting uses, choosing the right IP-rated M25 overmolded waterproof connectors has a direct effect on how reliable the system is and how much it costs to run. IP67 and IP68 ratings have been shown to protect against the most challenging environments. To ensure long-term performance, make sure that the specifications are matched, the supplier is checked out, and the right installation methods are used. Overmolded construction, high-quality materials, and thorough testing make connectors that can handle harsh conditions much better than alternatives that need to be put together in the field. Procurement teams can get the best deals on both short-term costs and long-term value by understanding how design factors affect waterproofing and making sure that specifications match up with real-world environmental conditions.

FAQ

What does IP68 certification mean for submersion depth and duration?

IP68-rated M25 overmolded waterproof connectors can withstand being submerged in water continuously for at least an hour and are usually tested to a depth of three meters. This is higher than IP67's one-meter, 30-minute norm. This means that IP68 can be used in places that are permanently wet, like fountain lights or naval equipment where ports may stay submerged in water for a long time.

Can IP67-rated connectors handle heavy rain and outdoor weather?

IP67 certification protects completely against rain, snow, and short-term water exposure that is common in outdoor installations. These M25 overmolded waterproof connectors keep their seals during storms and can handle jet spray from maintenance clean-ups. This makes them reliable choices for landscaping lighting, building facades and transportation infrastructure that is open to weather but not submerged in water all the time.

How do I request samples to verify IP rating performance?

Email our team with the details of your application, such as the pin layout, cable length, and environmental conditions. We give engineering teams pre-production samples with full test reports so they can confirm performance before committing to production quantities. This way, we can make sure that the connectors meet all of your exact specifications and installation needs.

Partner with Cablein for Certified M25 Overmolded Waterproof Connector Solutions

Cablein offers M25 overmolded waterproof connectors that have been tried in the workshop and are rated IP67 and IP68. These connectors are made to work reliably in the harshest circumstances. We are a reliable supplier with ETL, CE, and ISO9001:2015 certifications. Our products are made with advanced overmolding technology, heavy-duty PA66 nylon, and gold-plated brass contacts to make sure they work well from -40°C to 150°C for a long time. Our engineering team can completely customize the cable length, pin count configurations (2–5 poles), and jacket materials to meet the needs of your specific application. We can meet both pressing project deadlines and planned procurement plans because we keep an inventory of over 10,000 pieces of each standard item and can send them in 7–10 days. contact us at nick@cableinco.com right away to talk about your needs with one of our technical experts, get detailed specs, or set up a trial sample. We're dedicated to providing waterproof connection solutions that remove field failures and lower your total cost of ownership.
