Where can I buy a P20 circular waterproof plug online?

The P20 circular waterproof plug stands out as a reliable choice for demanding uses when looking for industrial-grade waterproof connections. For the North American market, you can buy these connectors directly from specialized manufacturers like Cablein Technology, from trusted B2B sites like Alibaba and GlobalSources, or from authorized distributors. When your production plan depends on a steady supply of proven quality and customisation options, direct maker channels usually offer cheap bulk pricing, technical support, and the ability to make changes.

Introduction

Outdoor LED installations, renewable energy infrastructure, and factory automation systems all have to deal with the same problem: keeping electricity flowing in harsh environments. This need is met by the P20 circular waterproof plug, which has designed sealing technology that can handle dust, water, and pressure.

When procurement workers try to find these parts online, they run into certain problems. It takes a lot of research to make sure that IP67/IP68 ratings are real, that material specs are correct, and that sources have stable stock. Connector failures that cause equipment to be offline cost money in lost work time and emergency repairs.

Procurement managers, R&D engineers, and quality specialists need this guide to find waterproof connection options because it walks them through the technical basics, reliable buying channels, selection criteria, and best practices for installation. We will talk about the differences between field-assembled designs and pre-molded options, as well as the certifications that are necessary for compliance and the skills that help a project succeed in the long term.

Understanding the P20 Circular Waterproof Plug: Key Specifications and Features

The P20 circular waterproof plug category has a good name in the business world because engineers have made choices that protect the environment without sacrificing electrical performance. At its heart, this type of connection uses a multi-component sealing system that combines precisely machined housings with elastomeric gaskets to keep contaminants out.

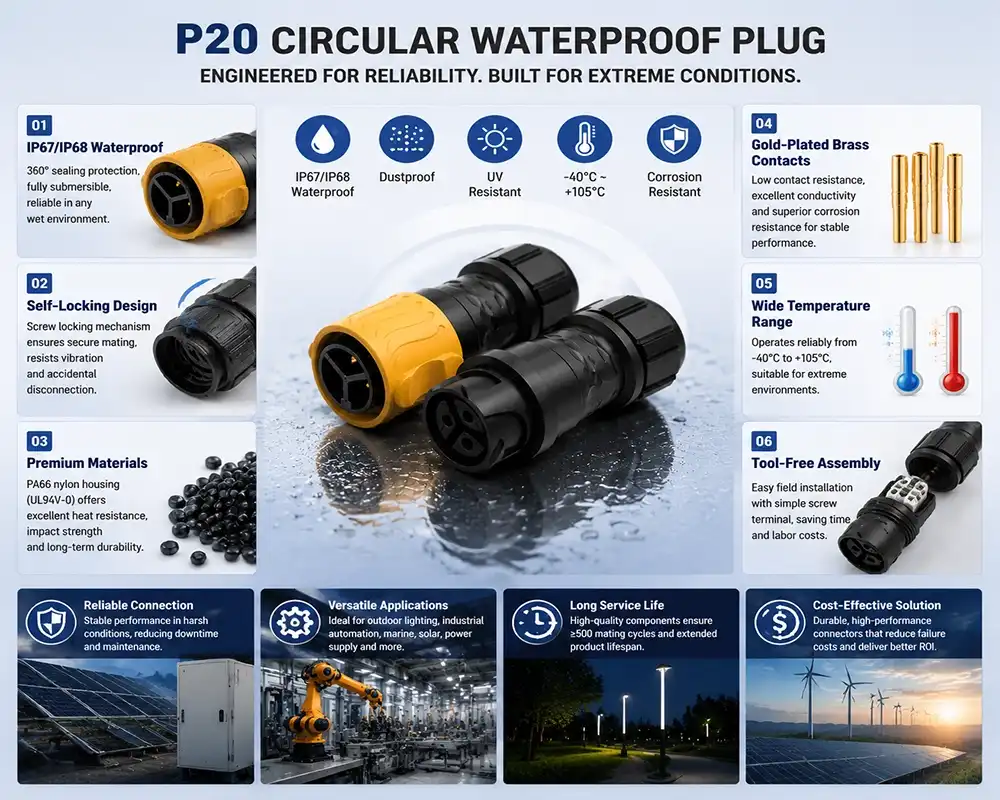

Construction and Core Components

High-quality industrial plugs are made from PA66 nylon. When exposed to UV light, this technological material retains its shape even when impacted hard at high and low temperatures. The material doesn't catch fire, meeting UL94V-0 criteria and ensuring electrical system safety.

Gold-plated brass contact pins form the electrical path. Gold doesn't oxidize in wet environments like tin or nickel plating; therefore, contact resistance remains low after thousands of cycles. Durability depends on metal thickness, with 3¼" to 5¼" gold over a nickel barrier layer for optimal connections.

Silicone O-rings provide the major moisture protection. This sealing material is flexible from -40℃ to 150℃, outperforming nitrile rubber in extreme temperatures. How well this seal is squeezed during construction determines a connector's field IP protection.

Technical Specifications Defined

Electrical factors limit applications. Current ratings range from 5A to 25A, depending on pin count and conductor size. Power transfer is possible at 380V AC/DC. To minimize voltage drop and heat at the connecting location, keep contact resistance below 5 mΩ.

Environmental evaluations predict survival. IP67 certification ensures safety in one-metre-deep water for 30 minutes. IP68 provides continuous submersion protection under manufacturer-set pressure. These values only work if the connections and wire glands are correctly connected and torqued.

Mechanical parameters indicate durability. Good designs can sustain over 500 mating rounds before contact wear becomes noticeable. Even when the wire bends and shakes, bayonet, threaded, or push-pull locks must stay engaged. To match different wire bundle sizes, the cable gland can be changed from 6 to 13 mm.

Pin Configuration Options

2–9-pin configurations of the P20 circular waterproof plug can meet signal and power distribution needs. DC power connections benefit from two-pin configurations. Three- and four-pin versions connect to power+ground or three-phase. Control signal-power conductor hybrid applications benefit from higher pin counts.

Standardized pin placement inside the circular shell ensures compatibility between manufacturers' products. When equipment arrangement requires wires to travel in certain directions, reverse-gender options allow installers more freedom.

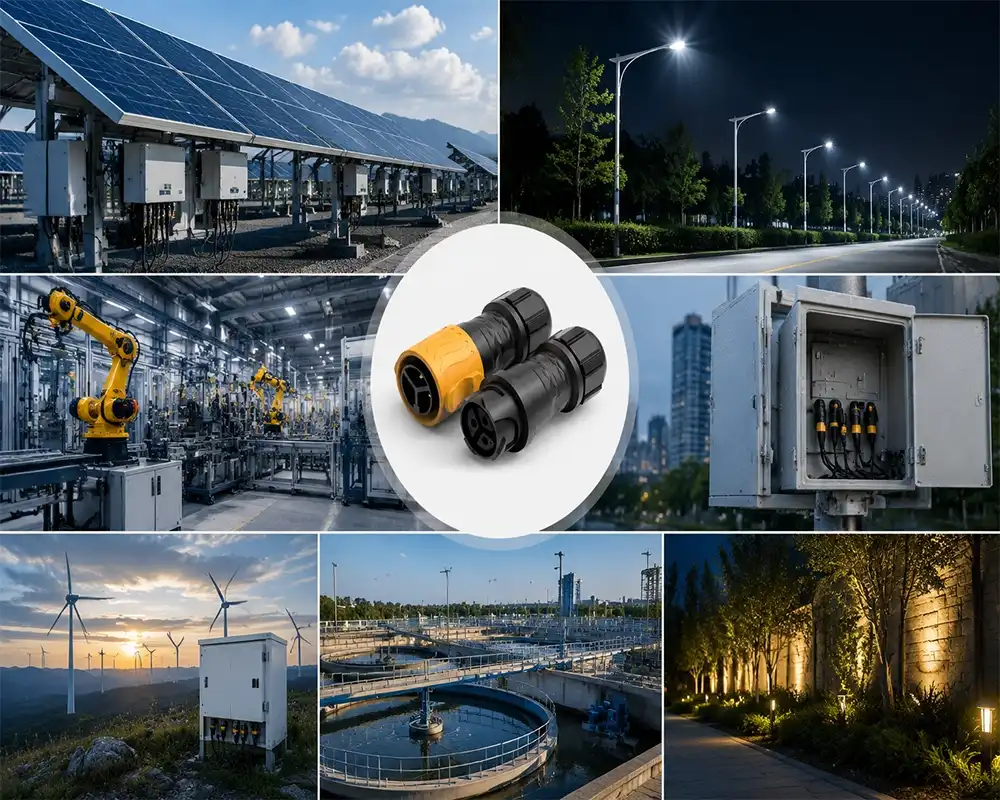

Application Environments

In a few months, salt spray corrosion destroys common connectors in marine electronics installations. They last for years since they are sealed and preserved. Boat battery pack connectors and underwater robots need corrosion prevention.

Seasonal temperature variations, UV radiation, and storms can impair outdoor LED illumination. Stadium floodlights, building accent lighting, and farming growth chambers demand high-stress connectors. The UV-stabilized building materials prevent the house from breaking after years in the sun.

The air around industrial automation equipment contains metal particles, coolant mist, and continuous vibrations. Factory floor PLC linkages and sensor feedback lines need signal integrity and mechanical stability. Threaded strain relief protects wire ends as the cable moves.

Installing solar panels and electric vehicle charging stations is a long-term commitment because upgrading connectors involves expensive service calls. Combining high current capacity with environmental endurance gives you decades of outdoor use, even in harsh weather and temperature variations.

Where to Buy P20 Circular Waterproof Plugs Online: Trusted Channels and Suppliers?

When you buy industrial connectors online, you have to deal with a number of different channels, each of which has its own benefits depending on the situation. Knowing about these outlets helps buyers find the right supply relationship for their needs, whether those needs are customisation, fast sampling, or wholesale prices for large orders.

Direct Manufacturer Channels

You can get engineering advice and modification choices from the connector manufacturer if you buy directly. Cablein Technology's technical teams can recommend pin layouts, cable specifications, and CAD models for part integration. This expert discourse helps when ordinary catalogue products don't fit the application.

Custom options are possible with direct connections. You can construct hybrid pin arrangements with power and signal conductors, custom cable assemblies with installed and verified connections, and housings that fit specified panel cutouts with the production source. Utility model patent holders sometimes have sealing technology or quick-connect systems that make their products better than generics.

Each company has varying lead times and minimum orders. Established providers stock standard configurations, so samples may be sent out in days and production orders in one to two weeks. Custom tooling takes time and requires higher minimum orders to cover setup costs.

B2B E-commerce Platforms

Alibaba and GlobalSources aggregate tens of thousands of connectivity suppliers. This creates marketplaces where buyers may compare prices and specs among sellers. Procurement teams who know what they need and can vet vendors themselves benefit from these technologies.

To evaluate vendors on these platforms, look at several indications. Transaction records and customer ratings might assist you in determining a person's reliability and speed when you need to communicate. Platform inspection services provide onsite audit reports and verified maker status to display manufacturing capabilities instead of trade firm middlemen. How quickly suppliers answer technical queries indicates whether they have engineering resources or just sell items.

Platform tools simplify finding. An RFQ tool sends your needs to multiple vendors at once. Comparison tools display specifications next to one other. Trade assurance services and escrow payment solutions make international purchases safer.

Competitive sites offer good unit prices, especially for huge transactions. Price should be weighed against the supplier's wait time, minimum order quantities, and desire to deliver certified test results and material certifications.

Authorized Distributors and Regional Representatives

Industrial wholesalers stock goods locally and can address urgent needs the same or following day. Project teams and maintenance offices that need small quantities quickly use this route. Distributors sell single connectors instead of the manufacturer's cases.

Dealers offer various technical support. Some hire applications engineers for product selection and troubleshooting. Some companies specialize in logistics. Distribution marks up prices, making this channel less competitive for bulk purchases but more helpful for speed and convenience of use.

Foreign corporations use regional representatives to help with language, time zone, and local business jargon. They process guarantee claims, import paperwork, and orders in the buyer's currency. The administrative help makes overseas shopping easier for those without the infrastructure.

Shipping and Logistics Considerations

Plan shipping time and customs clearance for international shipping of P20 circular waterproof plug. Air freight sends samples and urgent orders in 5–7 days; however, each item costs extra. Shipping significant amounts of products via ocean freight is cheaper and takes 20–30 days from Asian manufacturing hubs to North American ports.

Reliable sellers use UPS, DHL, and FedEx and industrial part freight forwarders. These transport providers understand harmonised tariff classes and customs documentation to reduce delays.

Imported taxes and compliance marking affect landed pricing. Electrical connectors normally have low tax rates, however owners should check with their customs dealer. ETL, CE, and RoHS approval markings are needed for US-sold products to avoid regulatory issues.

How to Choose the Right P20 Circular Waterproof Plug for Your Business Needs?

When choosing waterproof connectors, you need to make sure that the technical specs match the needs of your application's environment and how it works. This evaluation process weighs the need for performance against the available budget, while also taking into account factors like long-term dependability and upkeep.

Assessing Application Requirements

The working system sets minimum performance. Rain-exposed equipment must have IP67 ratings. Underwater sensors and fountain lighting controllers need IP68 certification and appropriate depth ratings for continuous submersion.

Temperature range impacts material choice. Silicone seals function well from -40°C to 150°C, which covers most industrial applications. For use near heaters in extreme cold or heat, fluorosilicone or Viton seal materials may be needed.

Chemical exposure evaluation prevents early failure. Chemicals and fertilizers affect farming gear. Maritime users face salt spray. Industrial uses include cutting oils, acids, and cleaners. Material suitability charts indicate which sealants and building materials can withstand various chemicals.

The actual load must fit within the current capacity plus a safety buffer. For continuous use, a 10A circuit needs 15A or more connectors to avoid overheating. The voltage should be 20% higher than the system voltage to protect insulation against abrupt spikes.

Material Quality Verification

How thick the contact pin gold plating is determines connector lifespan. Good vendors state metal thickness and testing methods. Request cross-sectional metallurgical analysis reports for high-stakes applications to verify specifications.

UV protection and impact strength depend on housing material grade. Virgin PA66 nylon outperforms recycled mixtures outdoors. Suppliers should provide UL flammability and material clearances.

Varying firms use varying quality O-ring materials. Medical-grade silicone has a constant compression set compared to commercial varieties. Testing techniques should include accelerated aging experiments that simulate years of environmental exposure.

Certification and Compliance Validation

TUV and CE certifications indicate foreign-standard third-party testing. Buyers should request test results instead of accepting marks. Test settings, measurable data, and pass/fail standards are detailed in reports.

RoHS compliance records a material's composition to prove it doesn't include banned substances. This approval helps enterprises meet their environmental obligations and sell equipment in regulated markets.

ETL, like CE in North America, says the product fulfils NFPA electricity safety standards. This accreditation ensures fire safety and shock hazard prevention for insurance and building code compliance.

ISO9001 certification proves the factory's rigorous quality control. It shows that the organization is committed to consistent production and growth, even though it can't guarantee product perfection.

Sample Testing and Validation

By asking for pre-production samples, you can try the product out for yourself before committing to large sales. Installation accuracy and how easy it is to install are all affected by locking force, lock contact, and how easy it is to install.

By testing your own ingress protection, you can be sure that what the supplier says is true. Submersion testing in a controlled setting, like a simple bucket test with a set depth and time, can find problems with the sealing before they lead to fails in the field.

By putting samples through a series of temperature changes, you can make sure that the gasket works well across all of its intended uses. Mechanical cycling, which involves mating and unmating several times, shows how fast contact wears down and how long a lock mechanism lasts.

Pricing Structure Understanding

Due to economies of scale in making P20 circular waterproof plug, the unit price goes down as the order number goes up. Figuring out where the price breaks in different levels helps you balance the costs of keeping inventory with the benefits of placing larger orders.

The total cost of ownership is more than just the price of the car. Labor costs go down when assembly is easy. Long life means that replacements aren't needed as often. Reliable performance gets rid of the need for emergency repairs and stops production. These practical factors often make it worth paying more for higher-quality connections at first.

The cost of customization depends on how complicated the changes are. There is a small fee to add different cable lengths to standard catalogue items. It costs more to make custom pin configurations that need new contact parts. Individual changes to homes that require the making of molds are expensive and require large-volume contracts.

Installation and Maintenance Tips for Maximum Lifespan

If waterproof connectors work as well as they're supposed to in the field, it depends on how well they were installed. Maintenance practices increase the useful life of things by finding early signs of wear and tear before they break.

Field Assembly Procedures

The first step in cable preparation is selecting the proper wire size for the pin-terminating range. The connector requires 6–8 mm of exposed conductor, thus the strip should be that long. Clean cuts eliminate unsecured wires that could short.

Field-assembly connections with screw terminals simplify wiring. Insert the stripped conductor into the terminal chamber with no exposed wire outside the connecting body. Tighten the terminal screw to finger-tight plus a quarter turn for the desired pressure. Overtightening damages the terminal. When tightened too little, high-resistance connectors heat up.

Check O-ring placement visually. The seal should not flex or fold to let water in. A thin layer of silicone grease on the O-ring improves closure and reduces entry force.

Adjust the cable gland to fit the wire bundle's outside diameter. Prior to wire termination, clip the cable. Push the gland forward and into the connector body after making electrical connections. Tighten to fit. The compression should secure the cable jacket without stretching.

Mating Connection Steps

Carefully line up the connector plug with its socket, paying attention to any keying features that make sure they are in the right place. For push-pull designs, you have to push forward until you hear a click that means the locking mechanism is engaged. For threaded connections, turn the coupling nut clockwise until it is hand-tight, and then use a wrench to turn it an extra quarter-turn.

To make sure the locking is solid, try to pull the link apart with some force. When properly connected, connections don't come apart. Loose links let water in and make electrical contact that doesn't always happen.

Preventive Maintenance Practices

Visual checks done on a regular basis find problems early. Check to see if the cable jacket is damaged near where the connector goes in. Wear or cracks in the jacket mean that there isn't enough strain relief. Check the housing for cracks or UV damage that can be seen on the plastic parts as surface chalking.

Oxidation can happen even after gold plating, but contact cleaning can get rid of it. Low-resistance connections can be kept up in harsh environments by disconnecting them once a year for inspection and cleaning the contacts with an electronic contact cleaner.

Troubleshooting Common Issues

O-ring replacement is planned maintenance. Elastomers degrade over time from ozone and stress. Replace seals every three to five years to prevent age-related leaks, no matter how wonderful they look.

Thermal imaging detects high-resistance linkages before they break. Hot patches indicate corrosion or weak terminations.

Moisture usually enters due to faulty installation, not product problems. Disassemble the link to inspect the O-ring. Keep cable gland pressure high enough to crush cable jacket.

Electrical continuity that fluctuates may indicate damaged or oxidized connections. Clean the contacts with the proper fluid, then inspect for mechanical damage. Too many mating cycles may have worn away the gold covering to the base metal.

Vibration loosens connectors, either because the locking mechanisms broke or because they were improperly mated. Look for broken tabs or worn detents on the closing device. Replace broken parts instead of fixing them on site.

Conclusion

Finding industrial waterproof connectors online requires technical know-how, the ability to evaluate suppliers, and knowledge of factors that affect the total cost of the purchase that go beyond the unit price. When properly specified and installed, the P20 circular waterproof plug format has been shown to be reliable in a wide range of situations. Direct links with manufacturers let you make changes and get engineering help that is useful for complicated projects. B2B platforms offer competitive prices and a range of suppliers for basic needs. The best way to protect your equipment purchase and keep it running is to install it correctly and do regular upkeep to keep it in good shape.

FAQ

What lead times should I expect when ordering waterproof connectors online?

Standard configurations from well-known manufacturers usually ship within 7–10 business days if you order a moderate amount. Most sample orders are sent out by fast mail within two to three days. Custom configurations that need unique pin layouts or wire systems take three to four weeks to set up and make. Using these lead times to plan when to buy things keeps projects from being late.

Can suppliers customize waterproof plugs for specialized industry requirements?

OEM and ODM services are available from reputable manufacturers to meet the specific needs of each application. You can change the way the pins are arranged, choose different types and lengths of cables, change the color of the housing to make it easier to find, and make hybrid assemblies with power and signal contacts. The best answers can be found by talking about needs with the manufacturer's engineering team early on in the design process. Custom versions usually have a minimum order quantity of 500 to 1000 pieces.

How do I verify compliance with international safety standards?

Instead of believing claims without proof, ask for copies of the real certification test results. Report numbers on real TUV, CE, ETL, and RoHS certificates can be checked in the databases of the certification bodies. ISO9001 certificates should have up-to-date information on the accreditation body and the times they are good. Independent labs checking samples adds another level of assurance for mission-critical uses where approval authenticity is a worry.

Partner with Cablein for Reliable Industrial Waterproof Connectivity

Cablein Technology offers tested industrial-grade P20 circular waterproof plug options made for tough settings where losing connection is not a choice. Our field-assembled circle connectors protect against IP67 and IP68 environmental factors and can be installed without any tools, which saves you money on labor costs and speeds up the finishing of your project. Our goods are certified by TUV and CE and have ISO9001:2015 quality systems to back them up. They meet international standards and work well in temperatures ranging from -40°F to 150°F.

We can meet both small-scale sample needs and large-scale production needs as a direct P20 circular waterproof plug manufacturer that keeps over 10,000 pieces of each standard item in stock. Our engineering team uses more than 30 utility model patents to offer OEM/ODM customisation, which includes everything from hybrid pin configurations to full wire assembly services. This lets us meet specific needs that standard catalogue goods can't. Cablein offers low wholesale prices, technical support 24 hours a day, and fast shipping around the world through partnerships with UPS, DHL, and FedEx. This is true whether you're looking for P20 circular waterproof plug suppliers for LED infrastructure, industrial automation systems, or renewable energy installations.

Email our technical sales team at nick@cableinco.com to talk about your unique connector needs, get technical drawings, or set up a trial sample. If you need solid connectivity options built to last, we're ready to help your project success.
