Heavy Duty LP16 Inline Cable Connector for Industrial Applications

The LP16 inline cable connector is a compact, high-performance circular connector engineered for demanding industrial environments where connectivity failure is not an option. Built with a PA66 nylon housing, gold-plated copper alloy contacts, and silicone sealing rings, it delivers IP67/IP68 waterproof protection across a -40℃ to +105℃ operating range. Supporting 2–9 pin configurations at up to 10A and 500V, with 2000+ rated mating cycles, this connector serves automation, LED lighting, renewable energy, rail transit, and security systems. CE and RoHS certified under ISO9001:2015, it is a trusted wire-to-wire solution for engineers and procurement teams worldwide.

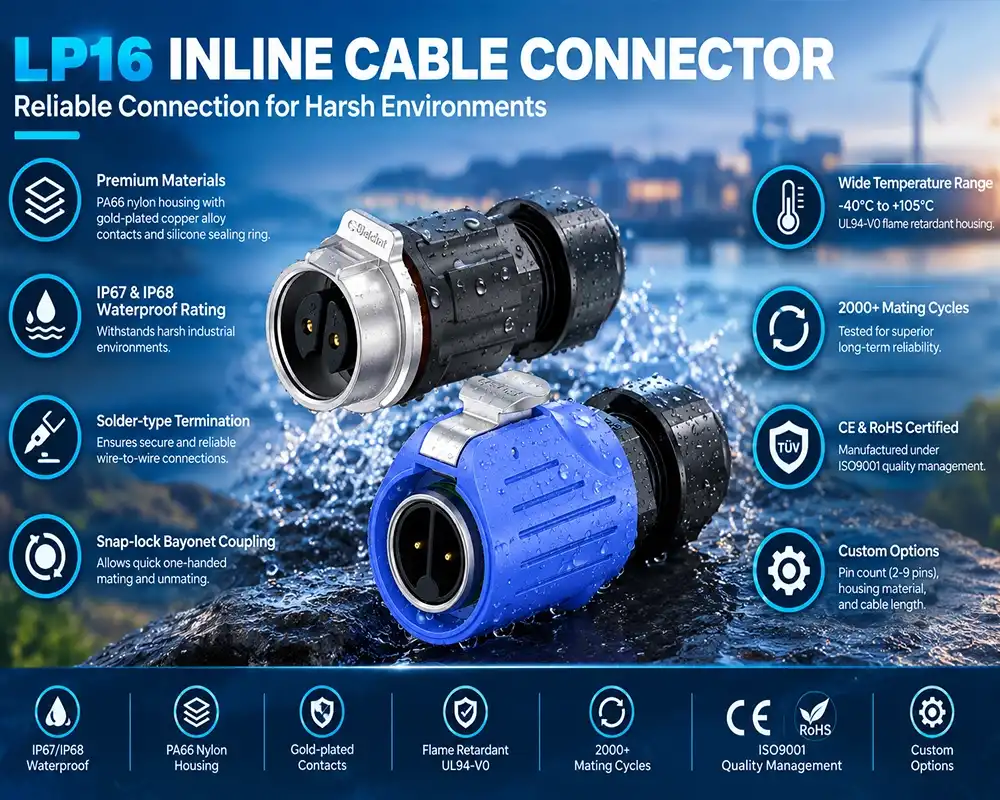

LP16 inline cable connector

Understanding the LP16 Inline Cable Connector: Specifications and Applications

What This Connector Actually Does

The LP16 inline cable connector is not like panel-mount connectors, which need to be fixed to the chassis. Instead, it works as a true inline solution, making a sealed, tool-free cable-to-cable bridge wherever the job calls for it. With the snap-lock bayonet coupling, technicians can mate with one hand and get tactile feedback to make sure the connection is secure without having to look. This design gets rid of the need for threaded connection tools, which makes large-scale operations much faster.

Core Technical Specifications

Here is a snapshot of what defines this connector's industrial-grade performance:

Housing material: PA66 nylon (UL94-V0 flame resistant); zinc metal version for places that are sensitive to EMI
Contacts: Copper alloy contacts that are gold-plated; contact resistance less than 5mΩ; insulation resistance more than 500MΩ
Waterproof rating: IP67 and IP68—completely dust-tight, tested for submersion resistance
Temperature range: -40°C to +105°C; made sure by thermal shock cycling methods
Pin configurations: 2 to 9 pins; a maximum current of up to 10A; and a voltage of up to 500V
Cable compatibility: Works with wire sizes from 4mm to 9mm
Mating cycles: More than 2,000 rounds of mating have been confirmed through mechanical endurance tests
Certifications: CE, RoHS, and made according to ISO9001:2015

These requirements are based on what real-world businesses like green energy, industrial automation, and LED infrastructure need. The IEC 60529 standard, which is the world standard for ingress protection ratings, says that IP68 means complete dust exclusion and protection against continuous immersion. This rating is very important for outdoor and subsurface deployments [1].

LP16 Inline Cable Connector vs. Alternative Connectors: Making the Right Choice

How It Compares to the LP12 and Other Circular Connectors

The LP12 connector has a similar push-lock system, but it only works with cables that are 12 mm in diameter. This means that it can only carry a limited amount of power. For projects that need more than one signal and power pin combined, or that need stronger wire gages, the LP16 inline cable connector is a big step up without adding any extra bulk. Panel-mount M12 ports are still a popular choice in automation settings, but they need to be integrated into the frame, which the inline design gets rid of completely.

This waterproof circular connector is unique because it has gold-plated contacts, two silicone sealing rings, and a snap-lock bayonet mechanism all in one standard body. Many competing goods in the same width class don't have one of these features. They do this to save money on each unit while giving up long-term dependability. This connection is definitely heavy-duty because it has been tested for up to 96 hours with salt spray and up to 2500V of voltage on the insulator. Mouser Electronics' industry performance benchmarks show that gold-plated contacts in circle connectors greatly increase their oxidation-free service life in salty and wet conditions [2].

How to Properly Use and Troubleshoot LP16 Inline Cable Connectors?

Installation Best Practices

Before putting the parts together, make sure you have the right number of pins and cable diameter for your LP16 inline cable connectors. Cut the ends of the wires to the right length, put the leads into the solder-type termination cups, and then evenly apply controlled heat. People often forget to do this step, which is sliding the sealing ring into place before putting the cable gland nut. This is the main reason why IP rating fails in connections that are placed in the field.

Once everything is put together, line up the faces that fit together, push until you hear the snap-lock connect, and then do a light pull test. Correct engagement stops unintended decoupling during vibration, which has been seen as a way for things to go wrong in robots and train travel [3].

Common Failure Points and Fixes

Connector performance deteriorates for three recurring reasons in industrial environments:

Pin corrosion: Usually caused by not sealing the pins properly during installation. Check the rubber ring for damage from being compressed, and replace it if it is.
Signal instability under vibration: This usually means that the mating depth is not enough. Re-mate and make sure you can hear the click proof.
Water ingress at the cable entry: Make sure the cable gland nut is tightened up to the right level and the cable diameter fits the collet size.

Regular maintenance, like eye checks every three months and pull-force tests once a year, makes the service life much longer than the 2000-cycle average.

Procurement Guide: How to Buy LP16 Inline Cable Connectors for Your Business?

Sourcing Strategy for B2B Buyers

When buying industrial-grade waterproof plugs, there are more factors to consider than just the unit price for LP16 inline cable connectors. Total cost of ownership includes labor for installation, how often it needs to be replaced, and the risk of not following the rules. If an uncertified connection fails IP rating testing in a foreign market, the project will be delayed and will cost a lot more to fix than it saved in the first place.

When looking for a supplier, these things should come first:

Certifications on file: CE, RoHS, and ISO9001:2015 paperwork should be ready right away, not promised after the order has been placed.
MOQ and inventory depth: Large projects with stable stock of 10,000 or more pieces per SKU have lower lead time risk.
Customization capability: To make molds for different pin counts, housing materials, and wire lengths, not all providers offer this service.
Delivery lead time: Standard orders usually ship within 7–10 days; special setups need to be scheduled separately.

Sourcing directly from a maker eliminates the authentication risk common with third-party distributors. The FCC and UL guidelines for U.S. imports also say that CE and RoHS paperwork has to be able to be tracked back to the factory where it was made [4].

Why Choose Cablein's LP16 Inline Cable Connectors for Your Industrial Needs

Manufacturing Standards That Back Every Unit

Cablein Technology was started in 2017 and has its main office in Shenzhen's Longgang district. It has a production center that's 6,000㎡ and more than 200 engineers and techs working there. Before being sent out, each LP16 inline cable connector unit is tested to make sure it is 100% waterproof. This is not a batch sampling process; each unit is checked individually. This protocol is in line with the requirements of ISO9001:2015 for quality management and shows a dedication to delivering without any problems.

The company has more than 30 utility model patents for technologies like quick-connect, solder-free, and high-power waterproof. Cablein's connectors meet legal standards in North America, Europe, Japan, and Australia at the same time, thanks to their CE, RoHS, ETL, PSE, SAA, TUV, and CQC certifications. Customization is a real feature, not just a sales pitch. Engineering drawings show that the housings can be made of zinc metal or PA66, have anywhere from 2 to 9 pins, and be made to fit specific molds or wire harness lengths [5].

Conclusion

The LP16 inline cable connector solves a specific and long-standing issue in industrial connectivity: how to safely extend or bridge wires in places that punish weak connections. Because it is waterproof up to IP67/IP68, has gold-plated contacts, snap-lock operation, and can handle a wide range of temperatures, it can be used in automation, lighting, energy, transportation, and security. This connection is strong enough to be used in tough situations because it has been certified and goes through strict quality tests that include salt spray, dielectric withstanding voltage, and thermal shock routines. The specs and dependability of the supply chain make a strong case for procurement and engineering teams looking at long-term connector solutions.

FAQ

Can the LP16 handle both power and signal in the same connector?

Yes. Designs that use both power and data can be made with the multi-pin setups (2–9 pins). The LP16 inline cable connector can handle up to 10A of current per pin, and the signal pins keep their insulation resistance above 500MΩ. This means it can be used for industrial IoT and sensor-power wires together.

What is the difference between IP67 and IP68 on this connector?

IP67 certifies protection against being submerged for 30 minutes at a time up to 1 meter deep. IEC 60529 says that IP68 adds continuous submersion at greater depths to this. Depending on your application setting, you can choose either one.

Does the snap-lock mechanism stay engaged under continuous vibration?

The spring-loaded bayonet coupling is designed to keep the two parts from coming apart by accident when it's under mechanical stress. It has been proven to work by automatic mating cycle testing and thermal shock procedures that meet the needs of rail and robots deployment.

Are metal housing versions available for EMI shielding?

There are versions with zinc alloy housings for places that need to block electromagnetic interference, and versions with PA66 nylon housings are standard for light, corrosion-resistant deployments.

What customization options does Cablein offer?

Custom pin numbers, housing materials, wire lengths, and private mold development can all be done with Cablein. OEM and ODM clients can get help from engineering teams with technical documents and fast prototyping.

Partner with Cablein — Your Trusted LP16 Inline Cable Connector Manufacturer

Cablein Technology delivers industrial-grade waterproof connectivity backed by 9 years of production experience, 30+ patents, and certifications accepted across North America, Europe, and Asia-Pacific. Stable inventory exceeding 10,000 pieces per item and a 7–10 day standard lead time keep your production schedule on track. Reach our engineering team directly at nick@cableinco.com or visit connectorswaterproof.com to request a quote or product sample for your LP16 inline cable connectors application today.
