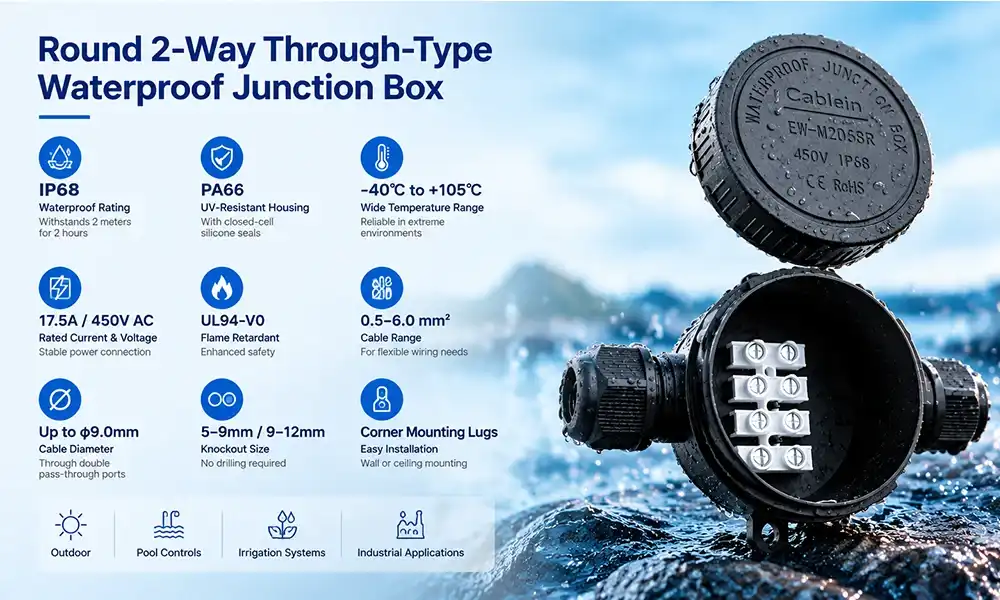

How Does a Round 2-Way Through-Type Waterproof Junction Box Protect Outdoor Electrical Connections?

A round 2-way through-type waterproof junction box protects outdoor electrical connections by creating a sealed, continuous cable pathway that blocks water, dust, UV degradation, and mechanical impact from reaching live terminals. Cablein's model achieves IP68 certification—verified at 2 meters for 2 hours—using a UV-resistant PA66 housing and closed-cell silicone gasket. The twist-lock lid applies even compression across the seal face, while interchangeable silicone rings grip cables from φ5.0 to φ9.0mm without gaps. Rated at 17.5A / 450V AC with a 2500V AC withstand test, it keeps low-voltage landscape, pool, and irrigation circuits safe regardless of soil moisture or weather exposure.

Understanding the Design and Functionality of Round 2-Way Through-Type Waterproof Junction Boxes

Before you pick a shelter for an outdoor split, there are a few things you should know about them. That round shape is useful in the real world, not just pretty to look at.

PA66 Housing and Closed-Cell Silicone Sealing

Its body is made of UV-stabilized PA66 nylon, a thermoplastic that is strengthened with glass fibers and stays strong even after years of being in full sunlight. The silicone gasket between the lid and body is made of closed cells that don't compress. This means that the seal stays tight even after being heated and cooled many times between -40℃ and +85℃. A test that was done at 85°C for 168 hours shows that there are no changes in size during the hot summer months, which are usual for pool and landscape setups.

Dual Pass-Through Cable Ports

The two wire gland ports that face each other make the through-type configuration. Cables come in from one side and go out from the other side in a straight line. This gets rid of the wire scheme with dead ends that keeps water inside a box. Rubber rings that can be switched out can fit wires with a diameter of ±5.0mm to ±9.0mm in each port. It is stated in IEC 60529 that the wire jacket is where IP-rated casings fail most of the time. With this flexible gland system, the width of the seal can be precisely matched to the wire jacket.

Twist-Lock Lid Mechanism

It's possible for the rotating locking lid to engage more than one contact point at the same time. This makes the closure force spread out evenly around the edge of the gasket. To seat the lid without putting too much stress on the PA66 threads, you should use 2.5Nm of force. In screw-lid designs, on the other hand, gaps appear where the bolts aren't tightened all the way. The IK08 rating for impact shows that the housing can handle a 5-joule mechanical shock. This makes it useful for installations near places where people walk a lot or where equipment vibrates a lot.

Key Benefits of Using This Waterproof Enclosure in Outdoor Applications

Rain, salt spray, UV rays, changes in temperature, and bumps into things are some of the things that can damage electrical equipment outside. The main ways this enclosure protects you are listed below:

• IP68-rated submersion protection keeps terminal connections dry at 2-meter depth for 2 hours, covering conditions from poolside flooding to buried irrigation runs. Field installers report zero water ingress after a 24-hour soak test when glands are torqued correctly.
• UL94-V0 flame retardancy means the PA66 self-extinguishes within 10 seconds under a direct flame, meeting the fire safety threshold required by many commercial electrical codes and CE directives.
• Tool-free AWG 1.5 terminal block lets DIY end-users complete field connections without crimping tools. Wire saddles hold conductors under vibration, which reduces the loose-terminal failures that generate product returns on Amazon and eBay listings.
• IK08 mechanical impact resistance protects the housing from a 5-joule blow, equivalent to a 0.5 kg object falling from roughly 1 meter—practical protection in landscape and construction environments.

Water entering via cable entry ports and UV exposure weakening the housing cause outside round 2-way through-type waterproof junction boxes to fail. The enclosure's silicone sealing mechanism keeps water out and its UV-resistant PA66 housing prevents material deterioration. Due to its sealing design and housing material, the enclosure may decrease maintenance and product returns.

Installation Guide and Best Practices for Round 2-Way Waterproof Junction Boxes

In the real world, an IP68 rating may or may not work depending on how well it was set up. The steps below come from what the manufacturer says to do and from mistakes that installers often make when working on landscaping and pools.

Cable Preparation and Gland Selection

Take off the outer jacket to see the conductors, and check that the cable's diameter is between φ5.0mm and φ9.0mm. Choose the rubber ring plug that fits your wire well. An egg-shaped hole will be made if the ring is too big. It will put too much stress on the jacket if it's too small, which could damage the insulation over time.

Gland Torque and Lid Closure

Connect each wire to its own port and manually tighten the compression gland. To get to 2.5Nm, use a screwdriver with a power limiter. Overtightening the compression gland may distort the rubber sealing ring, reducing its sealing efficacy. Over time, groundwater or moisture may enter the enclosure via cable jacket holes caused by inadequate tightness. In order to close the twist-lock lid, line up the body's position labels with it and turn it clockwise until it clicks. Make sure there is no gap in the gasket and that it is fully compressed.

Post-Installation Verification

If the job is going to be buried or submerged, it's worth the extra time to check it after 24 hours of being submerged before backfilling. Make sure the pressure is the same all the way around the jacket before you use either cable joint. If there are any bumps, it means the cable or ring is not round or the right size. This needs to be fixed before the installation can be finished.

Comparing Round Through-Type Enclosures with Other Junction Box Types

If the buying team knows how a round-through design fits in with other choices, they won't offer too little or too much safety.

Round vs. Square Enclosures

There is more room for multi-conductor terminations inside square boxes, but each corner is a stress concentration point where cracks start when the round 2-way through-type waterproof junction box is hit or freezes and thaws several times. Because it's round, the mechanical load is spread out evenly. This makes the round container stronger in places where there is a lot of shaking or temperature change. You can clean curved surfaces better than square ones because they are smooth and don't have cracks like square ones do.

Through-Type vs. Surface-Mount Designs

A surface-mount junction box is used at the conclusion of a wire route or to unite conductors. If a circuit continues, more cable entry points or connectors may be required. In contrast, a through-type junction box simplifies cable routing by allowing cables to enter and leave from any side. This design reduces water entrance sites in daisy-chained irrigation systems and series-wired landscape lighting by decreasing entry points.

Certification Benchmarks Across Manufacturers

When you compare sellers, CE and RoHS paperwork makes sure that the goods can be sold in Europe. TUV testing adds another level of safety by verifying IP and flame-retardancy claims. Quality checks are planned instead of done one batch at a time when ISO 9001:2015 production approval is given. People who want to buy things in the U.S. should also ask for proof from UL or ETL if the local codes require parts that are listed.

Procurement Considerations for North American and European B2B Buyers

When looking for outdoor waterproof shelters, there are more things to think about than just the price per unit. Cost of ownership is always based on three things:

Certification Documentation

The product's CE, RoHS, REACH, and TÜV certificates need to be up-to-date and unique. You can't just give them to everyone in the company. RoHS and REACH are important for European platform sellers to meet the needs of safety checks by marketplaces. Even if they don't need a full listing yet, U.S. sellers who want to sell on commercial channels should still ask for UL or ETL test reports. This is because more and more, Amazon and other platforms are marking items as unsafe electrical items.

MOQ Flexibility and Inventory Reliability

They can try the market before committing to full container loads when they place their first order of 200 to 500 units. More than 10,000 of each item are kept in stock by Cablein. Standard orders are sent all over the world in 7–10 days thanks to partnerships with UPS, DHL, and FedEx. When an item is out of stock for two weeks, a seller's ad rank drops. This isn't just because of price. It's just as important how quickly and how much they have in stock.

OEM and Custom Options

You can get private-label packages, cable entry diameters that aren't standard, custom terminal block designs, and cable glands that are already put in. With these options, resellers can make their listings stand out and get fewer returns by sending customers an enclosure that already fits their cable needs.

Conclusion

Outdoor electrical systems use a round 2-way through-type waterproof junction box because of the material it is made of, its shape, and the fact that it has been approved, not because of what the company says on the box. PA66 doesn't break down in UV light and can handle a wide range of temperatures. The closed-cell silicone seal and twist-lock lid keep the IP68 rating even after being opened and closed many times. When compared to multi-entry options, the through-type port layout keeps the seal from being exposed as much. These things about outdoor splice enclosures make them better for irrigation systems, garden lighting, or pool controls. They cut down on refunds and the cost of maintenance over the life of the product.

FAQ

1. What cable sizes does this enclosure accept?

The silicone ring system works with cables that have a diameter of φ5.0mm to φ9.0mm. For projects that need wire jackets of different sizes, rings can be bought separately so that all of them can fit in the same housing.

2. Is it safe to use near chlorinated pool water?

Yes. Pa66 casing and stainless steel fittings are designed for outdoor use, including poolside installations. However, materials and exposure circumstances determine chlorine and salt resistance. The enclosure's IP68 designation shows water ingress resistance under test circumstances, but not pool chemical resistance. Before using, check the manufacturer's chemical compatibility data and IP68 test parameters for installations in chlorinated water.

3. Can the terminal block be replaced or customized?

Cablein lets you make your own combinations of terminal blocks as an OEM option. One-piece units come with an AWG 1.5 block that is already cut for you. You can get pole numbers and wire sizes that aren't normal for sales that are only for one job.

4. What certifications apply to this product?

CE, RoHS, REACH, and TÜV are some of the newest safety marks. ISO 9001:2015 has been registered at the place where the goods are made. Each unit goes through a 100% waterproof security test before it is sent out.

5. What is the recommended lid torque?

The manufacturer says that a closure torque of 2.5Nm is the goal. It's always possible to do this with a screwdriver that doesn't put too much stress on the seal or housing threads.

Partner with Cablein for Your Next Waterproof Junction Box Order

Cablein Technology sent ports with an IP68 rating to power projects outside in more than 100 countries in 2017. We'll get back to you within 24 hours, no matter if you need a standard round two-way through-type waterproof junction box for an Amazon FBA listing or a custom-built assembly for a commercial pool installation. You can get examples, certificates, or a round 2-way through-type waterproof junction box supplier price that is made just for you based on your needs and number of boxes. Email our sales team at nick@cableinco.com.

References

1. International Electrotechnical Commission. IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). IEC, 2013.

2. Underwriters Laboratories. UL 94: Tests for Flammability of Plastic Materials for Parts in Devices and Appliances. UL Standards, 2018.

3. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM, 2019.

4. International Electrotechnical Commission. IEC 60695-2-11: Fire Hazard Testing – Glow-Wire Flammability Index Test Method for End-products. IEC, 2014.

5. International Organization for Standardization. ISO 9001:2015 Quality Management Systems – Requirements. ISO, 2015.

6. European Parliament. RoHS Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment. Official Journal of the European Union, 2011.
