How to Choose a Waterproof Junction Box for Harsh Outdoor Environments

Choosing the right waterproof junction box starts with matching the product's protection rating, material grade, and cable entry configuration to your actual site conditions. For most outdoor electrical projects—whether you're wiring LED floodlights, roadside sensors, or irrigation controllers—a square 2-way inline waterproof junction box rated IP67 or IP68 covers the majority of real-world exposure risks. Built from UV-stabilized PA66 nylon with a silicone gasket and pre-molded cable knockouts, this format reduces field labor while maintaining a verified seal across temperature extremes from -40°C to +105°C.

Understanding Waterproof Junction Boxes and Their Key Benefits

Outside waterproof junction boxes are more than just a shell made of plastic. They are proven to keep live wires away from wet, dangerous environments. Making the wrong choice here could cause inspections to fail, water damage to circuits, and repairs that cost a lot of money.

What IP Ratings Actually Mean

"Ingress Protection," or IP, tells you how well a container keeps solids and liquids out. IP65 can handle water jets, IP67 can handle being submerged in water for 30 minutes at 1 meter, and IP68 can handle being submerged in water for a long time above 1 meter. IP67 is the very least that should be used for installations that are buried or below ground. IP68 is needed for anything that will be near water or that could flood.

Why Material Grade Matters

A lot of cheap covers are made from recycled or empty nylons that bend or break quickly when they are exposed to UV light for two years. A good PA66 that has been preserved by UV light lasts outside for more than ten years and stays strong when hit and true to size. The housing must be UL94-V0 flame-retardant so it can put out fires on its own, which is needed for most commercial and public projects.

The Role of Gasket Design

A round silicone or TPE gasket is used as a water barrier. It is pressed down evenly by screws that are fixed to the lid. Bad gasket compression in the field is the main reason IP ratings don't work. This can happen when screws are lost or cross-threaded. With a captive-screw lid, the hardware stays on the box at all times, so this risk is gone.

Key Factors to Consider When Choosing a Waterproof Junction Box

Before specifying any enclosure, you need to assess three site variables: sustained moisture exposure, cable diameter range, and mounting surface. These three inputs determine IP rating, knockout size, and enclosure geometry.

Matching IP Rating to Exposure Level

Roof-mounted CCTV brackets or wall-hung sensor housings are exposed to rain and moisture – IP65 may be good enough. Cable splices in planted planters or roadside conduit trenches are going to be periodically flooded –IP68 is the right solution. One typical procurement mistake is to specify one rating lower than what the climate dictates, leading to warranty claims during the first rainy season.

Sizing for Cable Range and Terminal Capacity

A single SKU junction box takes 0.5–6.0 mm2 conductors and covers most low-voltage landscape and building automation circuits. The pre-molded knockouts, scaled for 5-9 mm and 9-12 mm cable diameters, enable installation personnel to choose the proper gland without cutting or drilling—protecting the seal from day one. Using 40A, 450V-rated terminal blocks for signal wiring and power supplies all without combining enclosure types.

2-Way Versus Multi-Way Inline Options

A 2-way straight-through box is one cable in and one cable out. Use it for in-line splices on a lighting run or sensor loop. A multi-way box is needed when a circuit splits to three or more termination locations. Selecting 2-way when branching is required results in field-wired tee connections outside a sealed enclosure, which inspectors often highlight. This difficulty is avoided totally if the box type is matched to the circuit topology at the design stage.

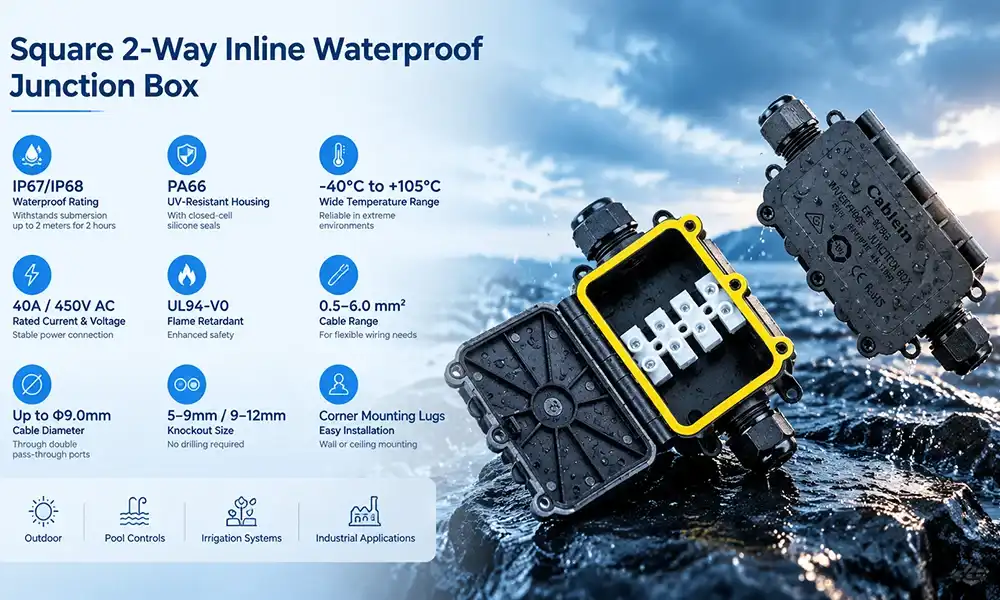

Evaluating the Square 2-Way Inline Waterproof Junction Box for Outdoor Use

The Cablein square 2-way inline waterproof junction box solves some of the problems professional electricians confront on commercial and public building sites. Here are the biggest style pros you should consider before you buy:

• PA66 nylon shell with silicone gasket: The injection-molded housing is UL94-V0 flame retardant and has passed ISO 4892-2 accelerated UV aging comparable to 10 years of outdoor exposure. The silicone gasket retains its compression set at its perimeter across hundreds of temperature cycles from -40°C to +105°C.
• 72-hour hydrostatic test for dual IP67/IP68 certification: Each manufacturing batch is tested for static water pressure for 72 hours, not just the design samples. This validates that the manufacturing consistency is consistent with the approved standard.
• Factory-formed knockouts are sized to accept 5 to 9 mm and 9 to 12 mm cables, eliminating the need for field drilling. This maintains gasket continuity and avoids a typical cause of seal breakage during installation.
• 40A/450V, 0.5–6.0 mm2 removable screw terminal. Terminal strip pulls free for pre-wiring on the bench. Crews cut conductors off at ground level and snap the block back into the housing before installing — decreasing installation time per connection point.
• Corner mounting compatible domes for M4 / M5: It has 4 raised bosses that take M4 or M5 fasteners, thus it fits normal metric hardware without any adaptor plates. The square shape is flush with flat walls and cable trays.

Comparing Market Options and Making the Best Procurement Decision

Buyers looking for waterproof enclosure suppliers should look at four things: authorized test results, homogeneity of batches, ability to alter, and the minimum order quantity that can be adjusted.

Certified Test Data vs. Self-Declared Ratings

Some dealers label their products as IP68 without getting them tested by a third party for EN 62444 wire retention or hydrostatic pressure. Don’t only ask for CE certifications of compliance. Request test reports with follow-up. All Cablein packages are supplied with inspection records and test results according to ISO9001:2015.

Batch Color Consistency

Customers are not satisfied when more than 1 box is placed in an open location because of the color discrepancies between the batches of items. The color remains within a specified range for repeat orders since the PA66 is blended in the same manner each time and injection molding settings are regulated.

Flexible Order Quantities and Customization

For OEMs who want a square 2-way inline waterproof junction box for their branded luminaire lines, in bespoke colors, with laser-etched names and connection settings pre-installed. Cablein can satisfy your demand of 500 pcs or more. They can also protect your unique ideas with an NDA. For contractors that just need fifty to one hundred pieces to fill in the gaps between orders, standard stock is available in 1-3 business days.

Step-by-Step Guide on Installing a 2-Way Inline Waterproof Junction Box

If you put together a certified enclosure the right way, it will work at the IP level it was made for.

Cable Preparation and Gland Selection

If you strip the cable, you will find that the conductor is the correct length, which is normally 40–50 mm for wiring in screw terminals. Locate a cable clamp that can fit the size of the hole and grab the jacket instead of the wire insulation. Tighten the gland to the force level recommended by the gland manufacturer. Usually, water comes in after fitting because it is not tight enough.

Terminal Connection and Block Reinsertion

To tighten the screw, push each stripped conductor all the way to the correct end point. Ensure that the force is appropriate for the conductor's cross-section. Replace the terminal block in the housing guides and push it down until it clicks with all wires connected. Before proceeding, ensure no wire insulation is caught behind a termination screw.

Lid Seating and Final Seal Check

Make sure the silicone gasket is all the way down in its groove before you shut the lid. There should be no folds or gaps. Tighten the captive screws in a cross pattern to evenly distribute the pressure on the exterior. After installation, check that the seal extends beyond the front of the lid. This demonstrates that it was pressed properly and the cover is nice.

Conclusion

When selecting a waterproof junction box for outdoor installation, you need to ensure that the IP rating, material quality, and features that suit your demands are all correct for the task. UV-stabilized PA66 with IP68 certification. The ones without a label will endure a shorter period. Secure lid screws, replaceable terminal blocks, and pre-molded wire knockouts are characteristics that help minimize the possibility of an installation error. Proven and proven, the Cablein square 2-way inline waterproof junction box is a great choice for contractors, engineers, and procurement teams. The quality is the same in every batch, and the quantity may vary.

FAQ

1. What is the difference between IP67 and IP68 for outdoor junction boxes?

If something has an IP67 rating, it means it can be submerged in water up to 1 meter for 30 minutes. Under IP68, something can be submerged in water below 1 meter for a certain amount of time and at a depth that both the customer and the maker agree on. When setting up near drains or underground join points, IP68 is the right measure.

2. Can a 2-way inline box handle both power and signal cables?

Yes, as long as the grade of the terminal block is good for both. Any 40A/450V block in the same family of enclosures that can accept ranges from 0.5 to 6 mm² can handle both low-voltage signal lines and line-voltage power feeds.

3. How do I verify that a supplier's IP68 claim is legitimate?

Ask for records of the EN 62444 cable retention tests and reports of the hydrostatic tests for each batch. A reputable ISO9001:2015 seller of square 2-way inline waterproof junction boxes will include these papers with the delivery itself.

4. Is PA66 better than ABS for outdoor enclosures?

PA66 is better than regular ABS because it can withstand higher temperatures, is more resistant to UV light after stabilization, and keeps its shape better at low temperatures. When working on projects that will be hit by strong sunlight, temperature changes, or machines, PA66 is the better choice.

5. What customization options are typically available for OEM buyers?

Custom colors, brand marks etched with a laser, different terminal block configurations, and certain knockout sizes are some of the OEM options. Most makers need a minimum order number, which is usually 500 pieces, in order to change the tools used for color or logo changes.

Partner with Cablein for a Proven IP68 Junction Box Solution

To contractors, distributors, and OEM brands in more than 100 countries, Cablein offers square 2-way inline waterproof junction boxes that are CE- and RoHS-certified. Most items in stock ship within one to three business days, and it takes seven to fifteen days to confirm a special order. You can use us on project papers because we've been making things for 9 years, have more than 15 patents, and follow ISO9001:2015 quality standards. Email our team at nick@cableinco.com right away to get samples, prices, or technical drawings.

References

1. International Electrotechnical Commission. IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). IEC, 2013.

2. Underwriters Laboratories. UL 94: Tests for Flammability of Plastic Materials for Parts in Devices and Appliances. UL Standards, 2013.

3. International Organization for Standardization. ISO 4892-2: Plastics — Methods of Exposure to Laboratory Light Sources — Part 2: Xenon-Arc Lamps. ISO, 2013.

4. European Committee for Electrotechnical Standardization. EN 62444: Cable Glands for Electrical Installations. CENELEC, 2013.

5. International Organization for Standardization. ISO 9001:2015: Quality Management Systems — Requirements. ISO, 2015.

6. International Electrotechnical Commission. IEC 62262: Degrees of Protection Provided by Enclosures for Electrical Equipment Against External Mechanical Impacts (IK Code). IEC, 2002.
