Type C Waterproof Connectors Are Engineered To Provide Robust Performance
Type C waterproof connectors are engineered to provide robust performance in the most challenging industrial environments, bridging the gap between modern connectivity standards and the harsh realities of outdoor installations. The LP16 USB Type-C waterproof connector from Cablein Technology exemplifies this evolution, delivering IP67/IP68-rated protection while maintaining the versatility of USB Type-C data and power transmission. Traditional USB ports simply weren't designed for moisture, dust, or mechanical stress, but industrial-grade waterproof Type-C connectors solve these limitations with precision-engineered sealing systems, ruggedized housings, and bayonet locking mechanisms that ensure secure connections even under extreme temperature fluctuations and continuous vibration.
Understanding Industrial-Grade USB Type-C Waterproof Connectors
Connectivity for today’s industrial activities must be able to survive harsh weather conditions without affecting performance. Waterproof Type-C connections take a big step up from consumer-grade ports, combining military-grade protection with standardized USB-C capability.
Core Design Features and Protection Standards

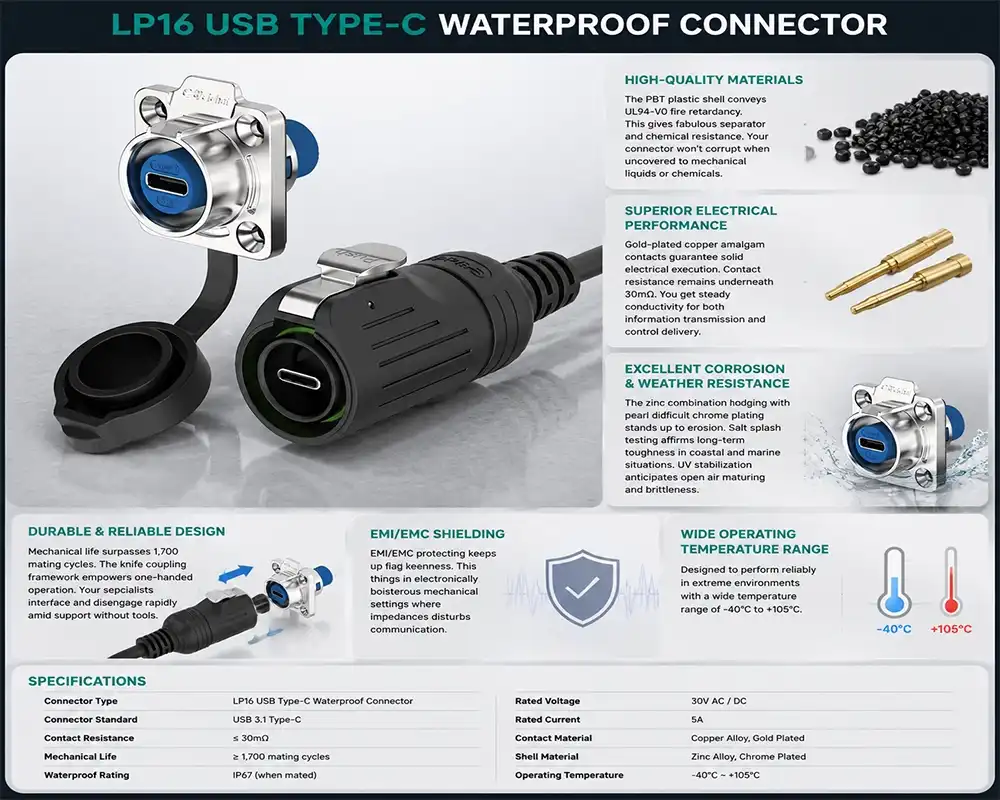

The LP16 series has a panel-mount feed-through design that offers a sealed pass-through point in equipment enclosures. This female-to-female arrangement enables cable connections from both sides of the panel with full environmental protection. The IP67 certification provides protection against temporary immersion to one meter for half an hour, whereas the IP68 version provides for continuous immersion at depth specified.
The connection housing is made of PBT plastic with UL94-V0 flame retardancy, high chemical resistance, and dimensional stability. The gold-plated connections of copper alloy are dependable for conduction of both 10 Gbps data and up to 100 W power with contact resistance less than 30 mΩ. The shell is made from zinc alloy with a pearl-hard chrome coating that is resistant to corrosion in salt spray conditions, making it suited for coastal and marine environments.
Operational Specifications and Environmental Resilience
Operating temperature ranges from -40℃ to +105℃, including everything from arctic outdoor installations to high-temperature industrial machines. The snap-lock bayonet coupling device provides secure one-handed mating and unmating, saving installation time and avoiding inadvertent disconnection. These connections have mechanical longevity of more than 1,700 mating cycles, much above that of typical USB ports.
In electrically noisy surroundings, EMI/EMC shielding helps preserve signal integrity to prevent radio frequency interference from interfering with transmission. UV stabilization ensures long-term durability for installations that are exposed to constant sunshine, preventing exterior aging and brittleness of the material.

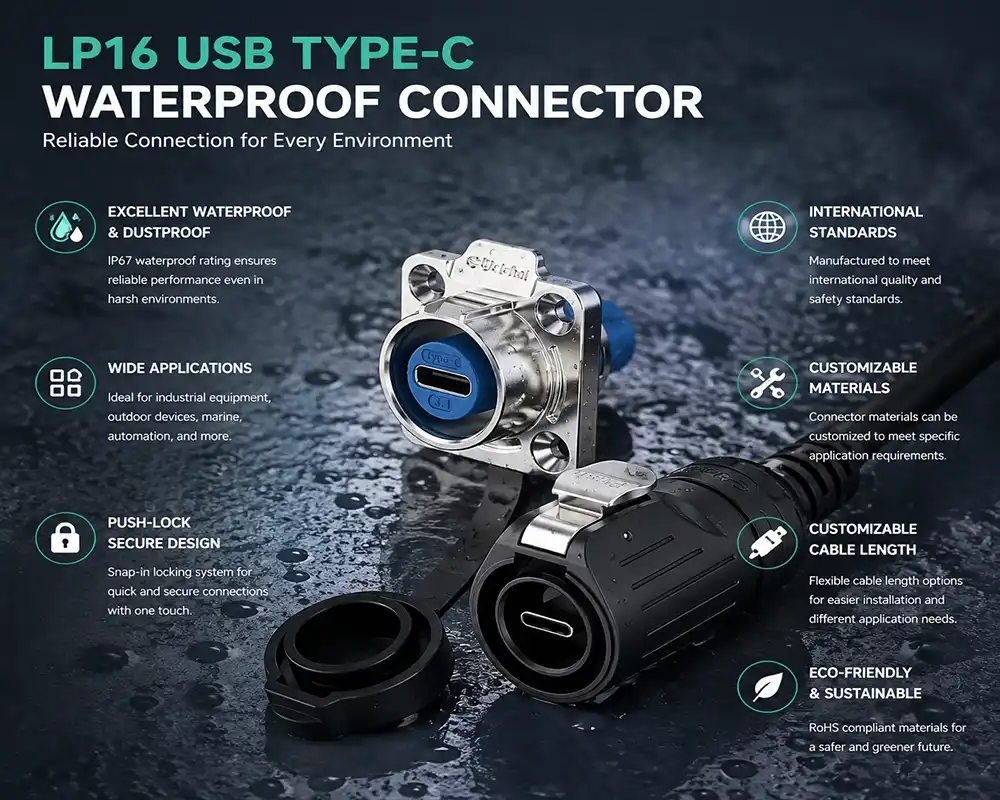

Advantages of Waterproof Type-C Solutions Over Standard Connectors
Standard USB Type-C ports fail rapidly when exposed to industrial conditions. Water infiltration causes short circuits, dust accumulation degrades electrical contacts, and vibration loosens friction-fit connections. LP16 USB Type-C waterproof connector variants eliminate these failure modes through fundamental design improvements.
Enhanced Environmental Protection
The seal mechanism serves as a barrier to liquid entry and particle contamination. The connection and seal mate and compress the O-rings and gaskets to seal the connector against moisture intrusion, even under pressure. This protection greatly increases the life of the component over the unprotected option.
For outdoor and marine applications, corrosion resistance is crucial. Its chrome-plated housing and gold-plated connections withstand oxidation and chemical assault from seawater, industrial solvents, and ambient contaminants. The equipment is designed to operate in situations where conventional connections would break within months.
Mechanical Stability and Vibration Resistance
The bayonet locking mechanism offers physical retention that friction-fit connections do not have. As the device is used, the vibration and movement create forces that slowly loosen the normal USB connections. The Type-C waterproof connectors’ positive locking mechanism preserves electrical contact under all mechanical stresses.
This stability is necessary for mobile equipment, transit systems, and industrial gear subjected to constant vibration. Secure connections on CNC machines, robotic arms, and rail transit equipment avoid occasional failures and resulting problems in diagnosis.
Simplified Installation and Maintenance
Toolless installation saves labor and speeds scheduling. Waterproof Type-C assemblies are easy to connect/disconnect during maintenance without specific tools. The visible and tactile confirmation of the bayonet lock avoids installation mistakes typical of threaded or compression-type industrial connections.
Less Maintenance = Lower Total Cost of Ownership. Environmental protection may help to minimize premature wear and save equipment downtime for replacement or repair of connectors. Your production schedules are steady, and emergency service calls are down.
Comparing Waterproof USB Solutions for Industrial Applications
For procurement managers, there are many alternatives for waterproof connection. Knowing the differences between competing technologies allows you to make educated judgments based on operational needs.
IP Rating Variations and Their Practical Implications
Connectors rated IP67 can withstand transient exposure to water and are thus well suited for outdoor installations when moisture exposure is caused by intermittent rain or cleaning activities. IP68-rated versions are suitable for continuous submersion, a need for underwater sensors, maritime electronics, and equipment exposed to flooding situations.
Selecting the proper degree of protection balances expense with environmental needs. Specifying protection too tightly costs money. Specifying it too loosely compromises dependability. Correct evaluation of installation circumstances will lead to appropriate specification.
Interface Standards and Compatibility Considerations
USB Type-C enables a single interface for data and power, and it is reversible. This adaptability is not available with other waterproof USB solutions based on Type-A or Micro-USB standards that need separate power cords with lower data speeds.
The ubiquity of USB Type-C in consumer and industrial gadgets improves inventory management and decreases cable sprawl. Standardize equipment to a single interface type to ease procurement and field service operations.
Material Quality and Long-Term Durability
Cheap waterproof connections are made of poor materials, and they break down fast. Cheaper plastic compositions become brittle under UV exposure, plating quality impacts corrosion resistance, and contact spring tension degrades with repeated mating cycles.
Premium connectors like the LP16 series are manufactured from materials that are tested to stringent standards. Long-term performance is verified by salt spray testing, heat cycling, and accelerated aging methods. The production quality and environmental responsibility are proven by ISO9001 and RoHS compliance and TUV and CE certifications.
Procurement Strategies for Waterproof Type-C Connectors
Effective sourcing balances technical specifications, supplier capability, and total acquisition cost for LP16 USB Type-C waterproof connector. Understanding the procurement landscape helps purchasing teams secure reliable supply while optimizing budgets.
Supplier Evaluation and Quality Assurance
Direct contacts with manufacturers allow for technical assistance and customization that distributors can't provide. Cablein Technology has more than 10,000 pcs per item in stable inventory; therefore, we can guarantee availability for prototype and production quantities. With 6,000 square meters of facilities and over 200 qualified individuals, we provide flexible OEM/ODM customization with quick engineering cooperation.
Certification verification confirms conformity with international standards. CE, ETL, PSE, SAA, and TUV certifications confirm safety and performance claims. ISO9001:2015 accreditation shows that quality management is done in a systematic way. RoHS and REACH compliance ensures environmental responsibility and regulatory compliance in the European and North American markets.
Lead Times and Inventory Planning
The typical product availability facilitates quick prototyping and short manufacturing timelines. Fast delivery, 7-10 days, promotes agile development timeframes and saves inventory holding costs. Lead times vary, depending on the intricacy of a custom order, and may be lengthy, so it’s best to reach out to suppliers early in the project planning process.
– Buying flexibility is affected by order minimums. Buyers may plan purchases that balance inventory costs against the benefits of bulk pricing via knowledge of MOQ frameworks. Established manufacturers have a tiered pricing system, which promotes greater commitments without penalizing modest pilot purchases.
Technical Support and After-Sales Service
Manufacturers’ engineering support during product selection may save expensive specification mistakes. Suppliers with strong application expertise may assist customers in balancing performance, cost, and environmental criteria. “We offer 24-hour technical support and full-service support to ensure that customers have smooth experiences from the initial enquiry to field deployment.
Warranty protection and failure assistance are provided for long-term investments. Clear warranty conditions and a timely claims process reflect supplier confidence in product durability. Replacement parts and maintenance service improve equipment service life and safeguard capital investment.

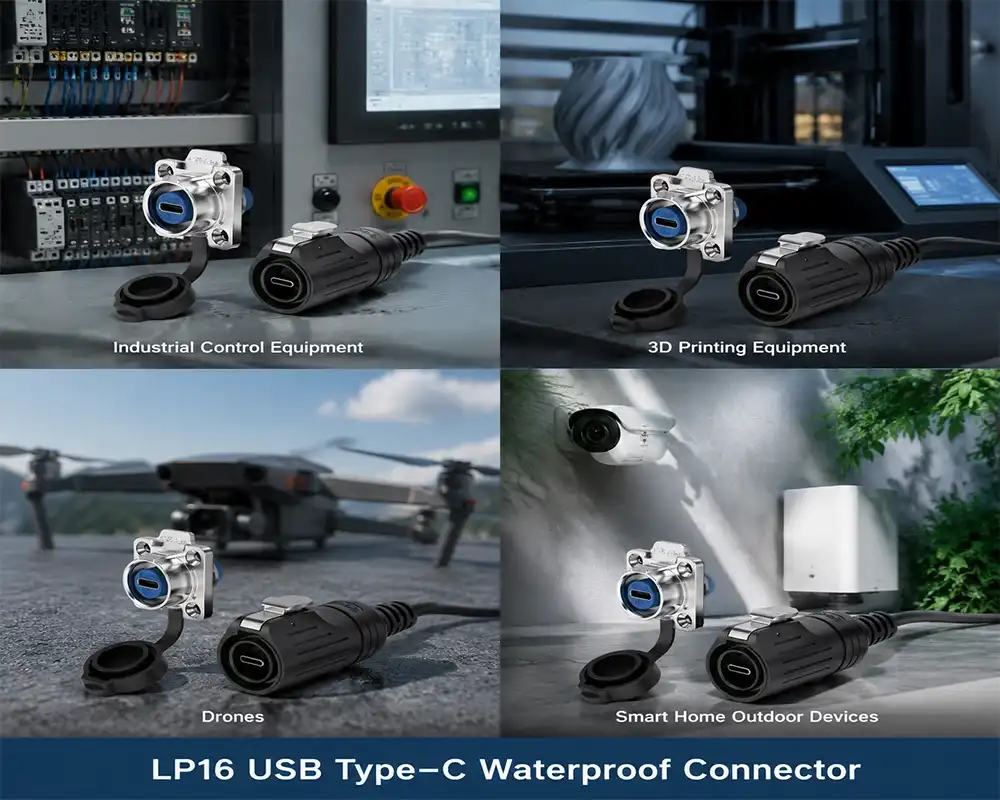

Optimizing Connector Selection for Specific Applications
Matching connector capabilities to operational demands maximizes reliability while controlling costs. Different industries face unique challenges that influence optimal product selection.
LED Lighting and Outdoor Display Systems
For example, landscape lighting systems and stadium displays need waterproof connections that can handle the rigors of constant outside exposure. The housing's resilience to UV keeps it from degrading, and its sealed interfaces stop rain from getting in. The LP16 connection temperature range is suitable for winter cold and summer heat and operates steadily in seasonal change.
Power supply capabilities Supports LED drivers and control systems with one connection. Data communication allows for dynamic control of illumination and diagnostic feedback. The integrated solution lowers cabling complexity and installation labor as compared to separate power and data connections.
Industrial Automation and Robotics
CNC machines and robotics systems are used in harsh settings that are contaminated with oil mist, coolant spray, and metal dust. Waterproof connections prevent fluids from getting in and causing electrical malfunctions and data mistakes. The bayonet lock resists vibration and the stress from moving equipment cables.
To update software and debug, programming ports and diagnostic interfaces need dependable connections. The USB Type-C ports are protected to allow field servicing without opening sealed enclosures, while providing equipment protection and maintenance access.
Renewable Energy and EV Infrastructure
Systems for monitoring solar power and EV charging stations are always outside and subject to high electrical demands. * High current transmission capacity meets power supply needs * Environmental sealing assures long-term dependability. The resistance to salt spray is a must for coastal installations, as the usual connections corrode quite fast.
Supplier credentials are crucial due to international certification requirements for export markets. Multi-regional standard-certified products facilitate worldwide deployment and help verify compliance.
Conclusion
Type C waterproof connectors represent a fundamental advancement in industrial connectivity, combining the versatility of USB Type-C with environmental protection necessary for harsh operating conditions. The LP16 USB Type-C waterproof connector series from Cablein Technology delivers IP67/IP68 protection, wide temperature operation, and mechanical durability that standard connectors cannot match. Procurement professionals gain reliable connectivity that reduces maintenance costs, extends equipment lifespan, and supports diverse applications from LED lighting to industrial automation. Selecting appropriately specified waterproof connectors aligned with operational demands optimizes total cost of ownership while ensuring long-term reliability in challenging environments.
FAQ
1. What distinguishes IP67 from IP68 waterproof ratings in practical applications?
IP67 connectors withstand temporary immersion up to one meter depth for thirty minutes, suitable for outdoor installations with rain exposure and occasional water contact. IP68 variants handle continuous submersion at specified depths, necessary for underwater sensors and equipment subject to flooding. Your specific environmental conditions determine which rating provides adequate protection.
2. Can standard USB Type-C cables connect to waterproof panel-mount connectors?
The internal interface matches standard USB-C specifications, but achieving rated IP protection requires the matching waterproof cable assembly with proper sealing components. Standard consumer cables lack the gaskets and locking mechanisms necessary for environmental protection.
3. How does vibration resistance benefit transportation and industrial equipment?
Equipment subject to continuous movement experiences forces that loosen friction-fit connections. The bayonet locking mechanism provides positive retention that maintains electrical contact during vibration, preventing intermittent failures common with standard USB ports in mobile applications.
Partner with Cablein for Reliable Waterproof Connectivity Solutions
Securing high-performance waterproof Type-C connectors require partnering with experienced LP16 USB Type-C waterproof connector manufacturers who understand your operational challenges. Cablein Technology combines nine years of industry expertise with advanced manufacturing capabilities and comprehensive international certifications. Our engineering team provides 24-hour technical support, helping you specify optimal solutions for LED lighting, industrial automation, renewable energy, and demanding outdoor applications. With stable inventory exceeding 10,000 pieces per item and fast delivery within 7-10 days, we support both prototype development and full production schedules. Contact our team at nick@cableinco.com to discuss your waterproof connectivity requirements, request technical datasheets, and explore customization options that align with your specific project needs.
