How do QC12 quick-clamp waterproof connectors differ from standard waterproof connectors?

When you're sourcing electrical connectors for outdoor installations, understanding your options can dramatically reduce project costs and installation time. The QC12 quick clamp waterproof connector represents a significant evolution in field-wiring technology compared to traditional waterproof connectors. The primary difference lies in its quarter-turn quick clamp mechanism, which allows tool-free installation in seconds—eliminating the need for wrenches, screwdrivers, or specialized crimping tools. Standard waterproof connectors typically rely on threaded couplings or compression glands that require manual tightening to specific torque values, often demanding trained technicians and additional assembly time. In contrast, the QC12 series offers IP67/IP68-rated protection through its dual-stage silicone seal system combined with a PA66 nylon housing and gold-plated brass contacts, delivering enterprise-grade waterproofing without compromising installation speed.

Introduction

Connectivity options for industrial settings need to be able to handle moisture, dust, high temperatures, and mechanical stress while still being electrically sound. When you buy QC12 quick clamp waterproof connectors, every choice you make affects operational uptime, maintenance costs, and worker safety. When engineers are asked to choose parts for LED lighting arrays, solar installations, or automation networks, they have to balance three important goals: protecting the environment, getting the parts installed quickly, and making sure they will work for a long time.

The QC12 quick clamp waterproof connector solves these problems with new design features that make field assembly easier without lowering performance. Traditional screw-type connectors have inconsistent sealing because of how they are installed. QC12 quick clamp waterproof connector systems, on the other hand, provide consistent waterproof integrity through mechanical indexing. This piece looks at how the QC12 quick clamp waterproof connector series stacks up against regular waterproof connectors in terms of technical specs, ease of installation, longevity, and overall cost of ownership. When buying teams know about these differences, they can make choices that are good for both the project budget and the performance needs.

Understanding QC12 Quick-Clamp Waterproof Connectors

The Cablein Technology QC12 quick clamp waterproof connector line is a field-assembled connectivity option made for rough outdoor situations. These connectors are based on a quarter-turn locking mechanism that keeps cable connections safe by rotating them instead of using threading or compression fittings. This way of thinking about design puts speed and dependability first in places where techs work on ladders, in small areas, or when the weather is bad.

Material Composition and Environmental Resilience

Long-term performance in difficult installations depends on the materials used for the parts. The QC12 quick clamp waterproof connector body is made of PA66 nylon, a material that stays the same size even when temperatures change and doesn't break down in UV light. This material stays strong from -40℃ to 105℃, so it can be used for projects in both cold places and hot ones, like the desert. Gold-plated brass contacts keep the low contact resistance even after more than 500 mating cycles by reducing oxidation. The plating stops the greenish rust that happens to plain copper in damp seaside areas. Dual-stage silicone seals make two barriers against water getting in. They have been tested to IP68 standards by submerging them for 72 hours. This multi-material approach strikes a good balance between environmental protection, mechanical strength, and electrical performance.

Quick-Clamp Mechanism and Installation Protocol

Installers of traditional threaded connectors have to line up pins, thread coupling nuts and apply the right pressure. This can be hard to do when wearing gloves or when placing the connector at an awkward angle. The QC12 quick clamp waterproof connector's quarter-turn system makes this process a lot easier. Technicians put the pre-wired cable into the connector body until it hits an internal stop. They then turn the clamp ring 90 degrees until they hear a click, which means the cable is engaged. With this tactile input, you don't have to guess if the link is properly sealed. The screw termination system works with cables with diameters between 3 mm and 6.5 mm and can handle both solid and stranded conductors without the need for adapters. This adaptability comes in handy when project requirements change in the middle of the work or when working with a mix of cables.

Technical Specifications and Standards for Compliance

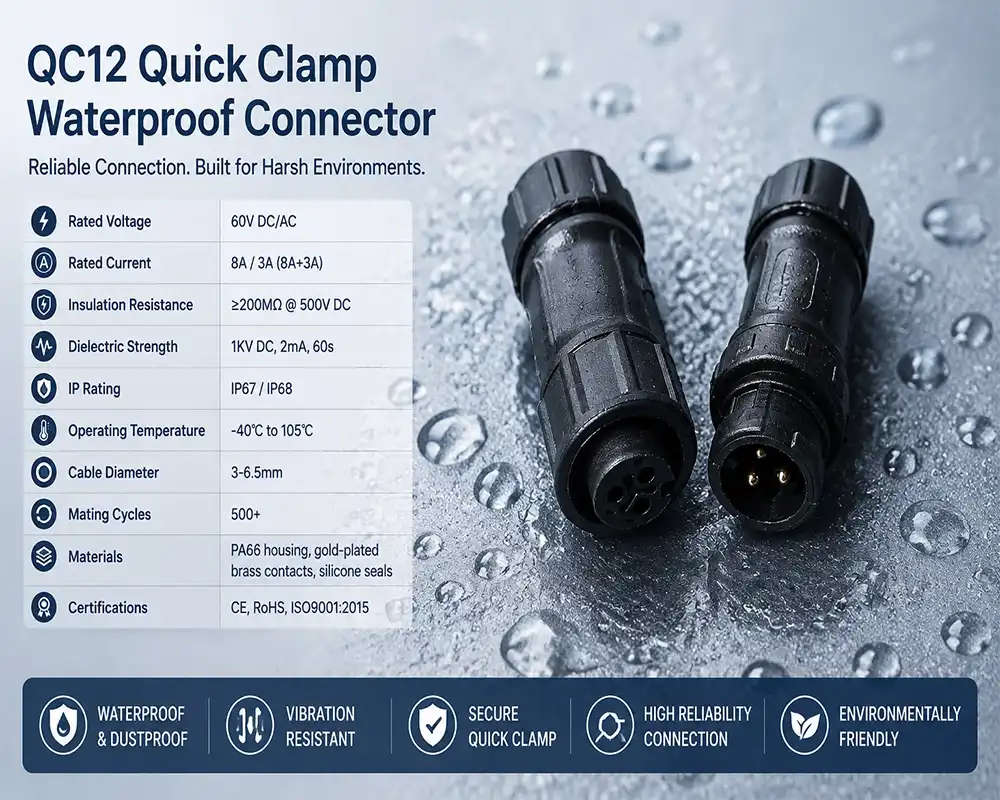

Metrics for measuring electrical performance set safe operating limits. The QC12 quick clamp waterproof connector can handle up to 8A of current and 60V DC/AC, making it a good choice for low-voltage LED arrays, sensor networks, and control circuits. Insulation resistance is higher than 200MΩ at 500V DC, which stops leakage currents that could cause annoying faults in monitoring systems that are too sensitive. Testing the connector's dielectric strength at 1KV DC for 60 seconds shows that it can handle voltage changes that happen a lot in open settings with long wire runs. CE and RoHS approvals show that the product meets European safety and environmental rules, and ISO9001:2015 quality management makes sure that the same level of quality is used in all production runs. These certificates are especially important for procurement teams that work with regulated businesses or foreign markets.

Comparing QC12 Quick-Clamp Connectors with Standard Waterproof Connectors

There are many differences between QC12 quick clamp waterproof connectors and normal waterproof connections, not just how they are installed. These differences include performance, failure modes, and lifecycle costs. Knowing these differences helps people who work in buying match the connectors they choose to the needs of the project.

Installation Time and Labor Cost Impact

It usually takes three to five minutes to connect a standard threaded waterproof connector, which includes pulling the wires, threading them, and applying pressure. If you do that for 200 nodes in an LED lighting network, it will take 10 to 16 hours of technician time just to put the connectors together. Because the QC12 quick clamp waterproof connector doesn't need any tools, this time is cut down to about 30 seconds per connection, which is a 6–10x improvement that saves a lot of work. For contractors working on fixed-price installations, this increase in efficiency has a direct effect on how much money they make from the project. Getting rid of specialised tools also lowers the chance that a project will be held up because of forgotten tools or broken tools in faraway places.

Sealing Consistency and Failure Prevention

To get the right seal compression with threaded connectors, you have to use your best judgement. When torque is too low, gaps open up that let water in, and when torque is too high, seals can deform or housing materials can crack. Studies of field failures in outdoor lighting systems show that about 40% of early failures are caused by poor connector setup. The QC12 quick clamp waterproof connector's indexed clamp system gets rid of this variable by making sure the seal is compressed correctly at the intended contact point. Cablein's own tests show that less than 0.1% of seals fail out of 10,000 installation cycles when standard methods are followed. Because of this, it is easier to train dozens of installers to follow the same torque specifications, which is especially helpful for large-scale deployments.

Durability Under Vibration and Thermal Cycling

Connectors in industrial settings are put under mechanical stresses that can make threaded couplings loosen over time. Vibrations happen all the time in HVAC systems, transportation infrastructure, and agricultural equipment, which wears down threaded connections over time. The QC12 quick clamp waterproof connector's clamp design keeps it from coming loose by engaging mechanically, not by friction between the threads. According to ASTM B117 standards, salt spray testing mimics decades of exposure to the coast. After 1,000 hours, the gold-plated contacts show little wear and tear. Thermal shock cycling between -40℃ and 105℃ proves that the PA66 housing stays stable in size and doesn't break easily like lower-quality plastics do. These benefits of longevity cut down on the number of upkeep tasks and the time between replacements.

Total Cost of Ownership Analysis

The initial purchase price is only one part of the economics of a connector. When you compare QC12 quick clamp waterproof connector lifetime costs, you have to include the costs of installation labour, downtime caused by failure, maintenance visits, and replacements. Standard connectors may cost 15 to 20 percent less per unit than quick-clamp options, but this advantage goes away when you look at how quickly they can be installed. A solar installation company said that moving to QC12 quick clamp waterproof connector connections cut the time it took to wire each panel from 8 minutes to 2 minutes. This meant that a two-person crew could finish an extra 20 panels every day. Even though the connectors cost a little more, the labour savings over a 500-panel project were more than $3,000. Lower failure rates change the economic situation even more by cutting down on warranty calls and service truck runs.

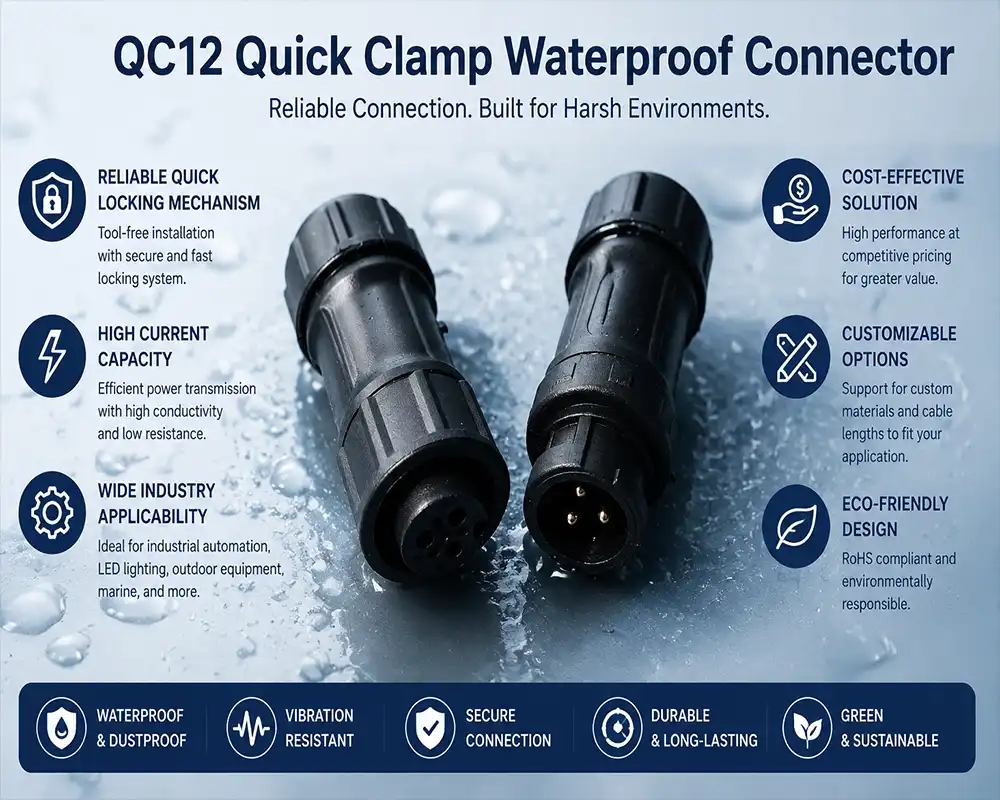

Advantages of QC12 Quick-Clamp Waterproof Connectors for Industrial Use

Outdoor LED lighting makers have to deal with tough competition and small profit margins. The QC12 quick clamp waterproof connector helps these businesses stand out by cutting down on the time it takes to set up and protect warranties. When a stadium lighting contractor installs 300 lights with QC12 quick clamp waterproof connectors, the 15-hour time savings over traditional connectors means the job can be finished a whole day earlier, saving the client money on scaffold rental and contractor overhead while also making the client happier. The UV-stabilized shell keeps the mechanical integrity and good looks of the connections after 3 to 5 years of sun exposure, when regular nylon connectors start to crack and turn yellow.

Long-term dependability is needed for renewable energy projects that are put in remote areas where getting service is hard and costs a lot. Installers of solar arrays who use QC12 quick clamp waterproof connectors for panel-to-combiner box wiring say it takes them a lot less time to figure out what's wrong with the system. With the quarter-turn disconnect, technicians can quickly separate sections for testing without using any tools. They can then reassemble the connections with confidence that the seals will still work. The wide temperature range makes it possible for sites to be put in both deserts (where surface temps can reach over 85℃ during peak sun hours) and northern climates (where winter temperatures drop to -35℃).

When factories use robotics, it can be hard because production lines need to be rearranged a lot to fit new goods. When rerouting sensor cables or moving photoelectric switches during line changes, manufacturing engineers like that the QC12 quick clamp waterproof connector can be disconnected without any tools. The grade of 500+ mating cycles means that normal maintenance can be done without affecting the performance of the seal or contact resistance. Because these connectors are chemically resistant to cutting fluids, hydraulic oils, and washdown soaps, they can be used in places like food processing and pharmaceutical production that have to clean their equipment regularly for hygiene reasons.

More and more, security and surveillance networks are putting outdoor cameras in tough spots like parking garages, waterfront areas, and traffic lights. Installers can put junction boxes close to the ground without worrying about puddles or sprinkler overspray because the IP68 rating lets them. QC12 quick clamp waterproof connectors make it easier to set up large groups of cameras, and the screw termination system works with the different types of cables that are often used in retrofit projects where new cameras are added to existing systems.

How to Choose the Right Waterproof Connector: QC12 vs Other Options

A structured evaluation method should be used to decide what QC12 quick clamp waterproof connectors to buy, weighing scientific needs against practical concerns. Understanding these choices is important because different apps value different connector traits differently. This way, you can avoid costly mismatches.

Matching Connector Specifications to Application Requirements

First, write down what the setting is like at the installation spot. Coastal areas need products that are very resistant to rust, like gold-plated contacts and UV-stabilized housings. Positive-locking mechanisms work better than threaded couplings in places with a lot of vibration, like railway signalling systems. Extreme temperatures call for materials that are rated for the actual operational range, not just the ambient conditions. For example, connector housings can get 20 to 30 degrees Celsius hotter in direct sunlight. When working with existing infrastructure or certain wire gauges, cable diameter compatibility is important. Common 16-22 AWG wire sizes used in low-voltage uses can fit in the QC12 quick clamp waterproof connector's 3-6.5mm range.

Evaluating Supplier Capabilities and Support Infrastructure

You can only get part of the story from technical specs. When evaluating a supplier, you should look at their production capacity, quality processes, and ability to make changes to your order. The ISO9001:2015 certification from Cablein Technology guarantees consistent production methods and protocols for tracking products. When putting in special sensors or proprietary equipment that needs non-standard contact arrangements, custom pin configurations are important. Pre-wired cable kits cut down on installation time even more by sending tested, ready-to-install connections instead of loose parts. Consistency in lead times affects project planning. Suppliers who keep 10,000 or more units of each type of QC12 quick clamp waterproof connector in stock can meet quick rollout plans or emergency repair needs.

Understanding Certification Requirements for Global Markets

Products that are meant to be exported need certifications that meet the needs of the market where they are going. CE marking lets you sell in countries in the European Union, while ETL or UL marking lets you sell in North America. Japan will need PSE certification, and Australia and New Zealand will need SAA approval. The QC12 quick clamp waterproof connector's multi-regional certifications make global sourcing easier for international businesses that want to make sure that all of their sites around the world use the same parts. RoHS and REACH compliance deals with rules about the environment that limit dangerous substances, keeping customs delays and market entry hurdles at bay.

Conclusion

A big step forward in field-wiring technology is the switch from standard threaded waterproof connectors to QC12 quick clamp waterproof connector designs. As shown by the QC12 quick clamp waterproof connector series, careful mechanical design can provide both better environmental protection and huge gains in installation efficiency. These connectors solve basic problems that have been bothering outdoor setups for decades. They do this by getting rid of the need for tools, cutting down on assembly time, and providing constant seal performance through indexed locking mechanisms. When looking at waterproof connectivity options, people in charge of procurement should not only look at the original costs of the parts, but also the total lifecycle costs, which include labour, dependability, and upkeep. The QC12 quick clamp waterproof connector's IP68 protection, gold-plated contacts, and quarter-turn installation make it useful in a wide range of industrial settings, from LED lights to green energy systems.

FAQ

What makes QC12 connectors more suitable for harsh environments than standard options?

The QC12 quick clamp waterproof connector is waterproof up to IP68 and has a shell made of PA66 material that doesn't break down in UV light, heat, or chemicals. When submerged for a short time, the dual-stage rubber seal system keeps the safety in place, and the gold-plated contacts keep them from oxidising in damp conditions. Standard links often use cheaper metals that break easily when exposed to UV light and might not have any extra covering.

How does the quarter-turn mechanism improve installation reliability?

Installers have to guess how tight to make traditional threaded connectors, which leads to variations in seal compression. The QC12 quick clamp waterproof connector's numbered clamp system lets you know when it's properly engaged by feeling and hearing it. This mechanical alignment makes sure that the seal works the same way every time, even if the user has done it before. This cuts down on failures in the field that are caused by bad assembly.

Can QC12 connectors accommodate custom configurations for specialized equipment?

Cablein Technology lets you make changes, like using different cable lengths or non-standard pin counts, and they also offer pre-wired kits. When standard setups don't work for a project, custom mould development can help with unique designs. This adaptability is helpful for original equipment makers (OEMs) who need to add QC12 quick clamp waterproof connectors to finished goods that need certain form factors or electrical properties.

Partner with Cablein for Your Waterproof Connectivity Needs

Choosing the right QC12 quick clamp waterproof connector provider will determine whether your project actually becomes more efficient or runs into problems you didn't expect. With nine years of experience, Cablein Technology has been designing waterproof interconnection solutions for tough industrial uses. Our QC12 quick clamp waterproof connector series is the result of many rounds of constant improvement based on real-world field performance data and customer feedback from installations in the security, automation, LED lighting, and green energy businesses.

We keep more than 10,000 units of each type of QC12 quick clamp waterproof connector in stock at all times, so normal orders can be delivered in 7–10 days, and we can also accommodate faster turnaround times when project plans require it. Custom configurations get extra engineering help to make sure the designs meet both the functional needs and the limitations of what can be manufactured. Before it is shipped, every QC12 quick clamp waterproof connector goes through several levels of quality checks, such as IPX8 submersion testing, salt spray exposure, and thermal cycling. It also comes with a full guarantee and quick technical support.

Our team can help you whether you're an R&D engineer testing prototypes, a procurement manager looking into QC12 quick clamp waterproof connector manufacturers, or a production manager planning large-scale deployments. We can tailor our advice to the problems you're facing in your application. Talk to nick@cableinco.com about your connection needs and ask for technical information, samples, or quotes on large orders for your next project.
