Industrial RJ45 Ethernet Waterproof Connector: Features and Benefits

When outdoor networks fail, the culprit is rarely the switch or the cable — it's the connector. An RJ45 ethernet waterproof connector solves this by combining standard Ethernet compatibility with industrial-grade sealing. Cablein's field-installable solution carries IP67/IP68 ratings, supports Cat5e and Cat6 transmission at up to 1000 MHz, and operates from -40℃ to 150℃. Built from PA66 nylon with gold-plated phosphor bronze contacts and a silicone sealing ring, it handles rain, dust, submersion, and vibration without signal loss — making it a dependable choice for outdoor surveillance, industrial automation, LED lighting, and renewable energy installations.

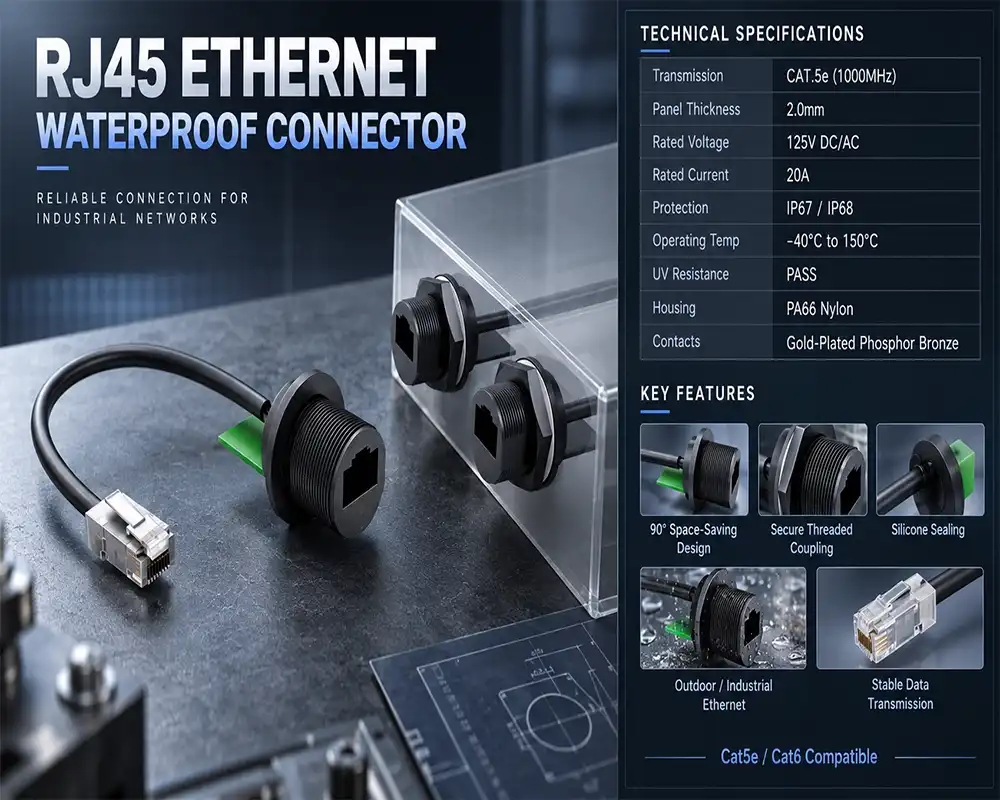

RJ45 ethernet waterproof connector

Understanding Industrial RJ45 Ethernet Waterproof Connectors

Standard RJ45 plugs were made for controlled environments inside. As soon as you put them outside, like on a stadium lighting mast, a factory floor, or a solar tracking station, moisture and dust start breaking down the electrical contacts within weeks. In order to fill this gap, industrial RJ45 ethernet waterproof connectors use precise mechanical engineering instead of weather protection at the surface level.

Cablein's connector has a threaded locking collar and a silicone O-ring gasket that press down evenly against the matching surface when the connector is put together. This makes a constant seal with no ways for air to get in. The PA66 nylon housing doesn't break down in UV light or when it's hit by something heavy, and the gold-plated phosphor bronze pins keep their contact resistance below 20 mΩ even after more than 750 mating rounds. Insulation resistance is higher than 500 MΩ, which keeps the integrity of the signal even in places with a lot of moisture.

IP67 vs. IP68: Which Protection Level Do You Need?

Both ratings are clearly explained in the IEC 60529 standard. IP67 protects against short-term immersion up to 1 meter for 30 minutes, so it can be used for outdoor installations that will be exposed to rain and surface water. IP68 adds to this by allowing continuous submersion at depths specified by the manufacturer. This makes it the best choice for deployments next to irrigation systems, underground conduit runs, or marine decking. Cablein has both types, so engineers can choose the right amount of safety based on the surroundings of each installation point instead of over-specifying for the whole project.

Benefits of Using Waterproof RJ45 Connectors in Industrial Applications

When an industrial network connector breaks, it costs a lot more than just buying a new part. Aberdeen Research says that unplanned downtime costs manufacturers an average of $260,000 per hour. This risk is lower with RJ45 ethernet waterproof connectors because they don't have the two most common ways that they can fail: oxidation-driven contact resistance creep and liquid ingress that causes short circuits.

In real life, these are the main speed benefits this connection brings:

Extended service life under UV and salt-spray exposure. The PA66 housing passes tests for UV protection, and metal parts are proven to be resistant to corrosion after 48 to 96 hours of salt spray testing according to ASTM B117. This is very important for outdoor LED signs and marine security towers that would normally have their connectors changed every year.
POE and POE+ compatibility without thermal derating. The connector can handle IEEE 802.3at POE+ loads without contact heating, even though it has a rated current of 20A and a voltage of 125V DC/AC. This is a specification gap that causes lower-grade sealed plugs to fail.
Stable signal transmission across Cat5e and Cat6 standards. Bandwidth support up to 1000 MHz works with Gigabit Ethernet and is enough for PLCs, sensors, and HMI screens to share data for industrial control.

Because of these benefits, there are fewer maintenance cycles, lower total costs of ownership, and fewer project delays due to network outages caused by connectors. For purchasing managers who look at cost-per-year instead of unit price, sealed industrial connections are always better than regular ones.

Comparing Waterproof RJ45 Connectors: What to Consider Before Purchasing?

Not every RJ45 ethernet waterproof connector works the same, and the specs sheet doesn't always give you the whole picture. Contact plating thickness is important—50μ" gold plating on phosphor bronze works better than regular tin plating in wet and high-cycle situations. The long-term compression of the seal is affected by how hard the housing material hardness is. Softer plastics soften over time, letting the O-ring lose contact pressure.

Field-Installable vs. Pre-Terminated Assemblies

Pre-terminated waterproof Ethernet wires make buying easier, but they can be hard to keep track of when different lengths are needed on-site. This problem can be fixed by Cablein's solder-type field-installable design, which lets installers connect the connector straight to any Cat5e or Cat6 wire at the installation site. This gets rid of the need to keep a variety of cord lengths in stock and makes buying things easier while also cutting down on the need to discard extra stock. You don't need any special crimping tools other than normal field kits to use the solder ending method with both solid and stranded wires.

Evaluating Supplier Reliability for B2B Procurement

When purchasing managers look for an RJ45 ethernet waterproof connector supplier, they should look at more than just the specifications. They should also consider the supplier's production consistency, certification status, and delivery ability. Cablein uses ISO9001:2015 for quality control, keeps a steady stock of 10,000 or more units of each SKU, and serves most orders within 7 to 10 days. CE and RoHS certifications show that a product is safe for use in North America and Europe.

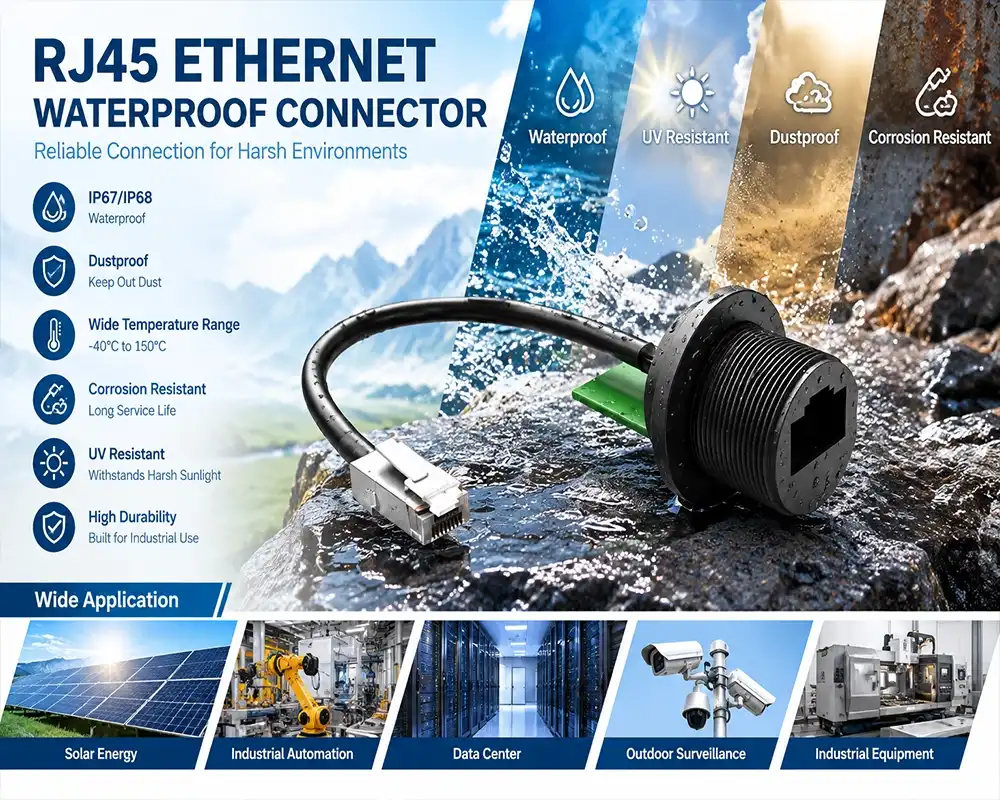

RJ45 ethernet waterproof connector advantage

Installation and Maintenance Best Practices

A sealed connector only works as well as it was put together. It is important that the silicone sealing ring fits properly before the locking collar is tightened. If it doesn't, there are ways for water or other things to get in, which means the IP rating is useless.

Step-by-Step Field Assembly

Put the sealing ring and cable gland nut on the cable before you solder. Finish the soldering, let the joints cool completely, then push the gland assembly forward and turn the locking collar with strong, even force. Check the sealing ring visually to make sure it is compressed evenly. A torque-controlled approach stops over-compression, which can change the shape of the gasket and make the contact seal area smaller.

When the sealing ring is inspected regularly, the surface should be checked for surface cracking, which can be caused by UV damage or chemical exposure. Under normal cycling conditions, gold-plated contacts don't need to be cleaned. However, setups that are exposed to salt spray should have the connectors taken apart and gaskets replaced every year as a preventative step.

Procurement Guide: Buying Waterproof RJ45 Connectors for Industrial Use

When sealed network plugs are bought by businesses, they usually look at the total cost of ownership instead of just comparing unit prices. A 30% more expensive connection that cuts down on two service calls a year makes up for its cost in the first repair cycle. When you bulk purchasing from a factory-direct source, the unit cost goes down and batch consistency is guaranteed, which is very important for QA teams that have to meet failure rate goals across big deployments.

Cablein lets OEMs and ODMs change the type of cable, its length, the orientation of the connection, and the pin design. For large projects with specific technical needs, private mold development is available, and fast prototyping lets engineers test the design before committing to full production.

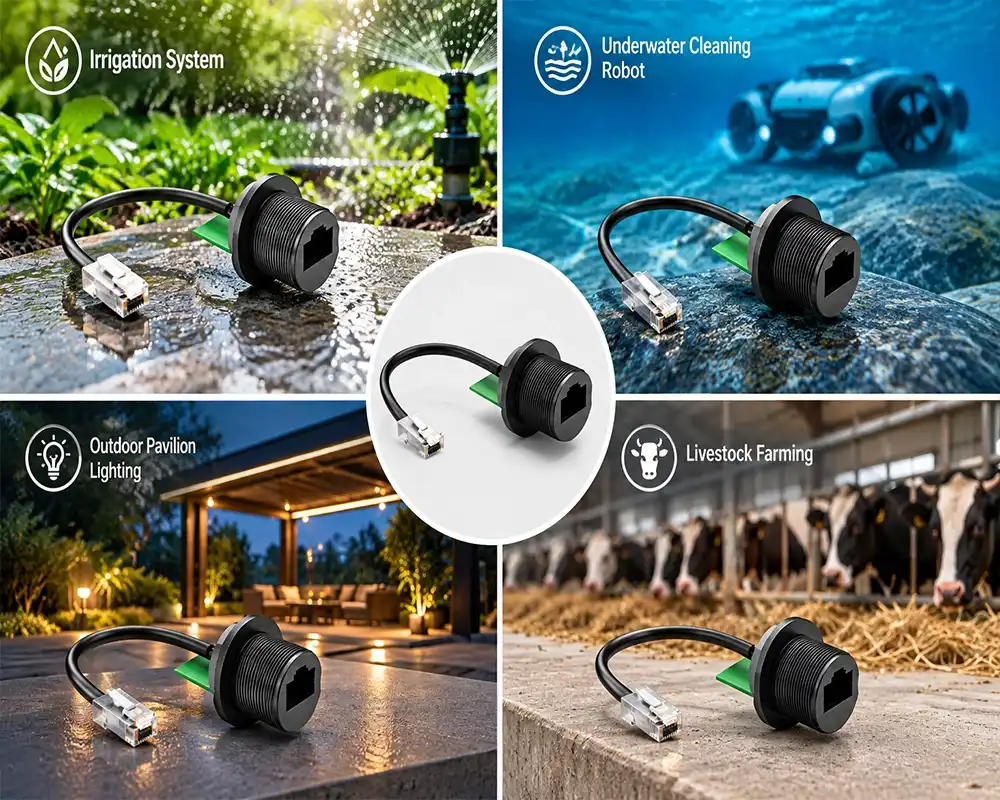

RJ45 ethernet waterproof connector application

Conclusion

In conclusion, connecting an industrial network outside in harsh conditions needs more than just weatherproofing. It needs material science, precision sealing engineering, and consistent manufacturing. Cablein's RJ45 ethernet waterproof connector combines IP67/IP68 protection, transmission that is Cat6-compliant, field-installable termination, and certified compliance into a single, small unit. This connector changes the weakest link in your network design with a part that is made to last longer than the system it's connected to. It can be used for surveillance systems, automating a factory floor, or connecting tracking nodes on a solar array.

FAQ

What is the difference between IP67 and IP68 for a waterproof RJ45 connector?

If you submerge something up to 1 meter deep for 30 minutes, IP67 will protect it. IP68 covers deeper, longer submersion at depths specified by the manufacturer. For standard outdoor use, choose IP67. IP68 is better for underwater runs or marine uses.

Is this connector compatible with POE+ devices?

Yes. Cablein's connector can handle POE+ (IEEE 802.3at) loads without thermal derating because it has a 20A rated current and a 125V rated voltage.

Can I use it with shielded Cat6 cable?

Standard Cat5e and Cat6 wires can connect to the connection. For shielded STP/FTP configurations in high-EMI areas, get in touch with Cablein's engineering team to make sure that your specific cable construction will work.

What certifications does this connector carry?

The standard is to have CE and RoHS approvals. Quality control methods based on ISO9001:2015 are used in manufacturing. For some product lines, you can get extra certificates like ETL, PSE, SAA, and TUV.

How do I know when the sealing ring needs replacement?

The silicone ring is breaking down when you can see cracks, thickening, or thinning on the surface. If you work with chemicals or salt spray, you should change them every year as a safety measure, even if there isn't any obvious wear.
