Top-rated M25 overmolded waterproof connectors for outdoor use

Introduction

When looking for industrial connections that can be used outside, the M25 Overmolded waterproof connector stands out as a reliable choice that was made to withstand tough conditions. This complete guide talks about everything that people who work in quality control, procurement, and research and development need to know about these important parts. M25 Overmolded waterproof connectors with IP67 and IP68 ratings get rid of common failure points in outdoor electrical systems. They offer factory-sealed integrity that standard field-assembled options just can't match. Whether you're setting up LED lighting networks, solar energy systems, or industrial automation equipment, knowing what these connectors can do technically and how they can help you in real life will help you make smart purchases that protect your investment and make sure they work well for a long time.

M25 Overmolded Waterproof Connector

Understanding M25 Overmolded Waterproof Connectors

What Makes Overmolding Different

The M25 Overmolded Waterproof Connector is a big step forward in technology for connecting things outside. Overmolding is different from traditional field-assembled connectors because it uses precision injection molding to join the cable and connector housing into a single unit that can't be opened. The main weakness in standard designs is the wire entry point, where water can get in through capillary action. This manufacturing process gets rid of that point. It can fit wire sizes from 7mm to 15mm and has a 25mm metric thread for safe mechanical coupling. This makes it useful for both power and signal uses.

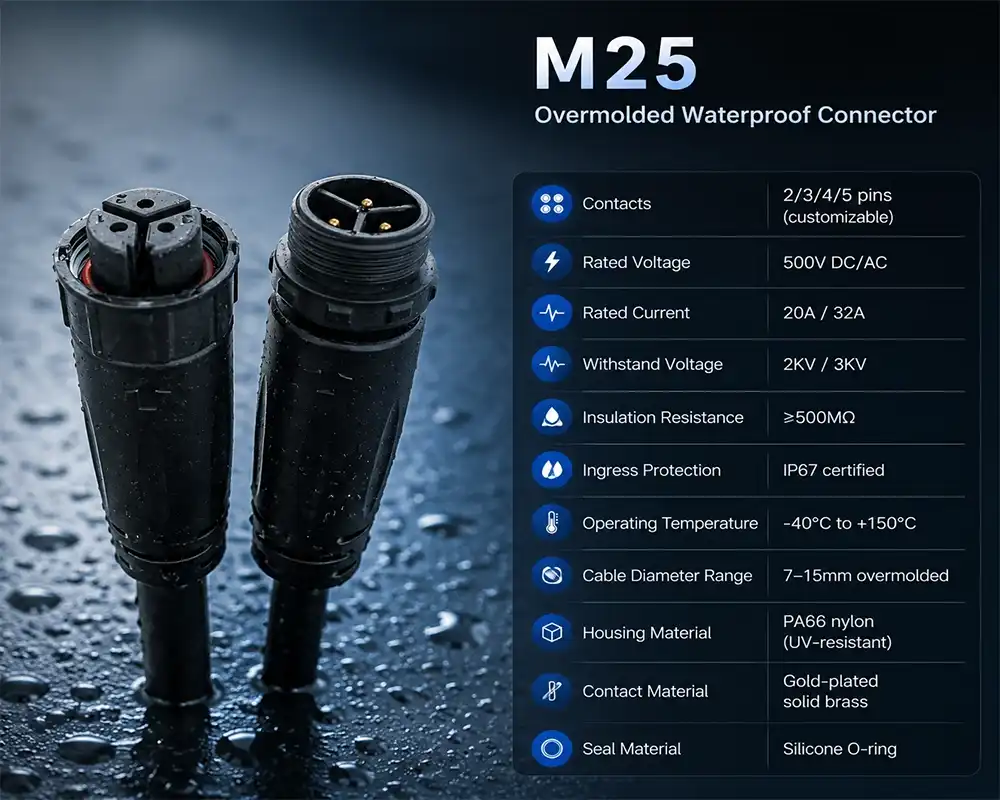

Core Technical Specifications

At Cablein, our M25 Overmolded Waterproof Connectors have strong PA66 nylon bodies and solid brass pins that are gold-plated to ensure good electrical conductivity. The silicone O-ring makes a strong seal that meets IP67 and IP68 ratings for ingress protection. This means that it completely blocks dust and water for a long time. These connectors can handle rated voltages of up to 500V DC/AC and can handle currents of 20A to 32A, depending on how the pins are set up. Insulation resistance is higher than 500MΩ, and tests for withstand voltage prove safety limits of 2KV to 3KV. The temperature range for operation is from -40℃ to 150℃, which includes harsh climates like the Arctic and the desert.

Material Engineering for Longevity

The choice of material has a direct effect on how well a connection works in outdoor settings. The strengthened PA66 nylon body is very resistant to UV light, so it doesn't break down over time in the sun like less durable materials would. Gold treatment on brass contacts keeps them from rusting and keeps their electrical performance stable even after hundreds of mating rounds. Stainless steel coupling nuts and mounting hardware that don't rust get rid of the need to worry about rust in coastal areas with a lot of humidity or salt spray. This mix of materials solves the problems that industrial customers have when standard links break too soon in tough outdoor setups.

Advantages and Applications of M25 Overmolded Waterproof Connectors

Superior Sealing and Mechanical Protection

Overmolded buildings have benefits that help solve practical problems in the real world. The design that is built in at the factory eliminates the chance of assembly mistakes that happen during field installation, where improper tightening or contamination during wiring can damage the waterproof integrity. Because it spreads mechanical stress over a bigger area instead of concentrating it at the cable entry point, the overmolded transition zone works well as a strain release. This is especially helpful in situations where there is vibration, temperature changing, or wire movement while the machine is running. A "wicking effect" happens when moisture moves between wire strands and into the connector body. This can happen with badly sealed field-assembled alternatives, but the one-piece design stops this from happening.

Diverse Industry Applications

These strong links work great in a lot of different industries. They provide the stable power connections that are needed for outdoor architectural lighting, arena lighting, and farming grow lights, all of which would stop working if they broke. Photovoltaic panels and energy storage batteries need to be able to transmit high currents and be reliable over a long period of time in order for solar energy systems to work. Robotics and sensor networks, as well as other industrial automation equipment, depend on M25 overmolded waterproof connectors to provide stable signal transmission and vibration protection. Outdoor waterproof protection is needed for CCTV systems and smart city monitoring networks that are part of security and surveillance infrastructure. For rail transit uses, connections must be able to handle steady vibration while still working electrically over long periods of time.

Installation Efficiency and Cost Savings

M25 overmolded waterproof connectors not only work better technically, but they also lower the total cost of ownership. The plan is already put together in the workshop, so it can be used right away. This saves time that would have been needed for field termination and testing. Installation teams can make connections in minutes instead of the hours or days that are needed for older wiring methods. This faster deployment is especially helpful for big projects where the speed of installation has a direct effect on project schedules. The sealed construction also lowers maintenance costs because it keeps out environmental pollution that would otherwise require early replacement or fixing of connection issues.

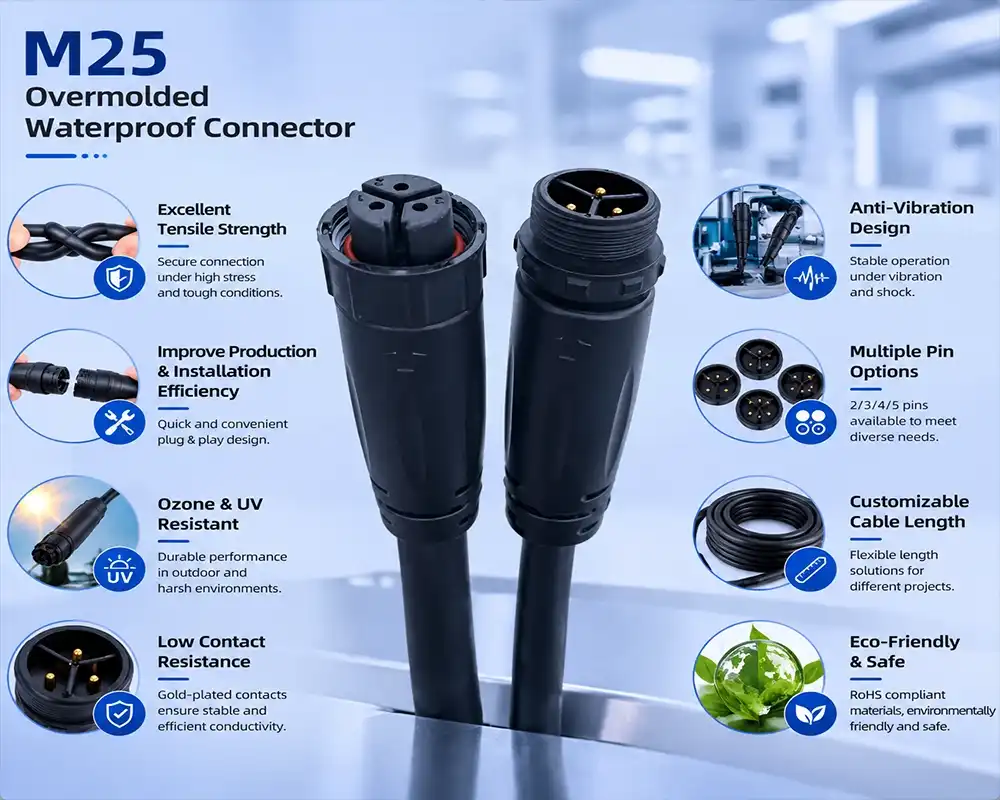

M25 Overmolded Waterproof Connector advantage

Comparing M25 Overmolded Waterproof Connectors with Alternatives

Overmolded versus Field-Assembled Solutions

When looking at different connector options, the performance differences between overmolded and field-assembled designs are very clear. Field-assembled connectors let you use custom cable lengths and make changes on-site, but they add the possibility of human error during installation. Not using enough sealing solution, joining incorrectly, or contamination during assembly can lower waterproof ratings. M25 overmolded waterproof connectors get rid of these issues by using controlled factory processes and checking them for waterproofness before sending them out. The trade-off is less flexibility in the field, but this can be easily worked around with good planning and standard cable lengths that meet most application needs.

Thread Size Considerations

Knowing the size of the threads helps you choose the right connection for your wire needs. M25 stands for a 25mm metric thread that can be used for medium to heavy cable assemblies. M20 connectors can fit smaller cables with outside diameters of up to 12mm, and M25 connections can fit cables with outside diameters of up to 15mm. In some specifications, M25x1.5 is used, where 1.5 is the thread pitch in millimeters. The waterproof seal stays in place even when the cable is under a lot of mechanical stress because the thread size is matched to the cable width. Threads that are too big on small wires take up too much room and might not seal properly, while threads that are too small can't fit bigger conductors that are needed for high-current uses.

Material Trade-offs: Plastic versus Metal

Choosing the right connector body material means considering a lot of different factors. Heavy-duty PA66 nylon is resistant to chemicals, doesn't conduct electricity, and is lighter than other nylons. It also has enough mechanical power for most industrial uses. The material is stronger than brittle plastics and doesn't cost as much as metal alternatives. M25 overmolded waterproof connectors with metal bodies, usually made of nickel-plated brass or stainless steel, offer better electromagnetic shielding and better resistance to being crushed in situations where there are a lot of mechanical risks. Metal bodies, on the other hand, are heavier, cost more, and need to be carefully grounded to avoid electrical dangers. High-grade engineering plastics offer the best performance at a reasonable price for outdoor LED lighting, solar installations, and automation equipment.

Procurement and Buying Guide for M25 Overmolded Waterproof Connectors

Evaluating Supplier Capabilities

Find qualified suppliers whose industrial skills match your technical needs. This is the first step in successful buying. At Cablein, our ISO9001:2015-certified center keeps a stable inventory of more than 10,000 pieces of each item. This makes sure that the products are ready for both instant and planned deployments. Check a possible supplier's list of certifications, such as ETL, CE, PSE, SAA, RoHS, and REACH compliance, to make sure their goods meet international safety and environmental standards. Well-known companies should let you customize their products by changing things like the length of the cables, the number of pins (from 2 to 5), and the jacket materials to fit different chemical or temperature conditions. How quickly technical support responds is very important—suppliers should offer engineering advice during the specification phase instead of just taking orders.

Lead Times and Custom Solutions

Managing project schedules well requires knowing when things need to be made. Standard configurations can be shipped within 7–10 days from when they are first stocked, so they can be used for small-scale operations or quick replacements. Custom wire systems need more time for tooling and production, usually between 2 and 4 weeks, but this depends on how complicated the order is and how many of them there are. When planning big projects, share your predictions early so that sellers can keep enough inventory on hand. When you work with an OEM, you get committed account management and planned production runs that fit with the way you make things. Cablein has strong logistics relationships with UPS, DHL, FedEx, and freight forwarders. This lets us offer a range of shipping choices that balance cost and speed of delivery based on the urgency of the project.

Quality Assurance and After-Sales Support

Reliable suppliers follow strict quality control rules at all stages of production. Before it is shipped, every connector should be tested for waterproofing, insulation resistance, and continuity. Ask for test records or certifications that show the product meets the electricity and IP ratings that were given. After-sales help is very important if there are technical questions during installation or if problems come up out of the blue in the field. Suppliers who offer technical help 24 hours a day and quick ways to communicate show that they care about their customers' success after the original transaction. The warranty terms should make it clear what kinds of problems the product has and how to make a claim. These aspects of service set professional industrial suppliers apart from sellers of goods whose only goal is to beat competitors' prices.

Installation, Maintenance, and Troubleshooting Tips for Long-Term Performance

Proper Installation Procedures

When you install M25 Overmolded Waterproof Connectors correctly, you protect the waterproof integrity that was built into them. First, check both halves of the connector for any damage that happened during shipping. Make sure the O-rings are still in their holes and there are no twists or other trash in the way. Use a lint-free cloth to clean the matching surfaces and get rid of any dirt or dust that could damage the seal. Carefully line up the pins so that the contacts don't bend when joining the two halves of the connector. Then, hand-tighten the coupling nut until it fits snugly. Use the right tools to do the last quarter-turn, and be careful not to use too much force, which could damage the threads or bend the sealing surfaces. For panel-mount applications, make sure the mounting holes match the connector's requirements and use the lock washers that come with the connector to keep it from coming loose from vibration.

Routine Maintenance Best Practices

M25 Overmolded Waterproof Connectors don't need as much maintenance as field-assembled ones, but they should still be inspected every so often to make them last longer and find problems before they become major. During routine repair, look at the housings of connectors for cracks, discoloration from UV light, or mechanical damage. Thermal cycling can sometimes cause coupling nuts to become slightly less tight over time. Check the cable strain relief zones for signs that the cable jacket is cracking or coming away from the overmolded transition. Clean the outside of uncovered connectors with water and a light detergent to get rid of any dirt or salt that has built up and could eventually damage seals or metal parts. Keep track of trends in the state of your equipment's connectors by writing down what you found during inspections.

Common Issues and Solutions

Problems can happen with even the best M25 overmolded waterproof connectors, and they need to be fixed. Connection problems are usually caused by contamination rather than problems with the connectors themselves. Check the bodies of the connectors for moisture and let them dry completely before reconnecting. Contact wear from too many mating cycles may cause intermittent electrical performance. Gold-plated contacts can usually handle 500 to 1000 cycles, but harsh environments speed up wear. By replacing old connectors, you can keep other equipment from getting damaged by power that doesn't arrive at the right time. Water can get in even if the cable is properly installed. Check the cable for damage to the jacket that lets water in. Even the best connection can't seal a cable that isn't properly installed. If problems keep happening, you should talk to your supplier's expert team. They can look at the specifics of your application and suggest answers or other products that would work better.

M25 Overmolded Waterproof Connector application

Conclusion

Selecting the right M25 overmolded waterproof connectors for outdoor uses directly impacts system dependability, installation speed, and long-term operating costs. These factory-sealed solutions remove common failure modes associated with field-assembled options while providing proven performance across demanding industrial sectors. Knowing the technical details, properties of the material, and what the application calls for lets you make smart buying decisions that meet both the needs of the current project and long-term goals for equipment reliability. Working with well-known companies that keep up with certifications, quality control standards, and quick technical support will make sure that the connectors you buy work as expected for as long as they are used.

FAQ

1. What does the IP67 rating mean for M25 connectors?

If something has an IP67 rating, it means that it is completely protected against dust getting in and can be submerged in water up to 1 meter depth for 30 minutes. This rating makes sure that M25 overmolded waterproof connectors work reliably in outdoor settings that might get wet, flood, or be dusty, like on construction sites and in factories.

2. Can these connectors handle extreme temperature variations?

Quality M25 overmolded waterproof connectors work reliably across temperature ranges from -40℃ to 150℃, covering harsh climate uses. The PA66 nylon housing and special sealing materials keep their flexibility and waterproof integrity even after being heated and cooled many times. There are no cracks or seal degradation that would lower the protection ratings.

3. How do I choose between plastic and metal connector bodies?

Plastic PA66 nylon M25 overmolded waterproof connectors are great for most LED lights, solar, and automation uses because they are lightweight, don't conduct electricity well, and are resistant to chemicals. Metal frames offer better security against electromagnetic fields and mechanical damage in places where there is a high risk of crushing, but they are more expensive and heavier, and they need to be carefully grounded electrically.

Partner with Cablein for M25 Overmolded Waterproof Connector Solutions

Cablein Technology makes industrial-grade M25 overmolded waterproof connectors that are designed to work in harsh outdoor conditions for LED lights, green energy, industrial automation, and infrastructure projects. We are a producer with more than 30 utility model patents and 9 years of experience in the field. Our goods are ETL and CE certified and are made in accordance with ISO9001 standards and RoHS regulations. To meet the specific needs of each project, our engineering team can customize everything from the cable length and pin configuration to the jacket material and private labeling. You can talk to our technical experts about your application needs, get expert product suggestions, and get competitive prices on both standard inventory and custom cable assemblies by emailing nick@cableinco.com. We keep our stock levels solid and deliver within 7–10 days so that you can start using our products right away. During the whole project, we'll be here to help you with technical issues at any time.
