RJ45 Ethernet Waterproof Connector for Harsh Outdoor Environments

When outdoor network infrastructure faces relentless rain, dust ingress, or accidental submersion, a standard RJ45 plug simply cannot hold the line. An industrial-grade RJ45 ethernet waterproof connector seals your data link against moisture, corrosive elements, and mechanical stress while maintaining full Cat5e/Cat6 signal integrity. Cablein's field-installable solution combines IP67/IP68 ingress protection, gold-plated phosphor bronze contacts, and a PA66 nylon housing to deliver dependable connectivity across temperatures ranging from -40℃ to 150℃—making it the right choice for mission-critical outdoor and industrial deployments.

Understanding RJ45 Ethernet Waterproof Connectors

A sealed outdoor RJ45 ethernet waterproof connector is built differently than the clear plastic plugs that are used in buildings. A regular modular plug only uses pressure to keep its contacts in place. A waterproof version adds multiple layers of mechanical security to stop water from getting anywhere.

Core Construction and Sealing Mechanism

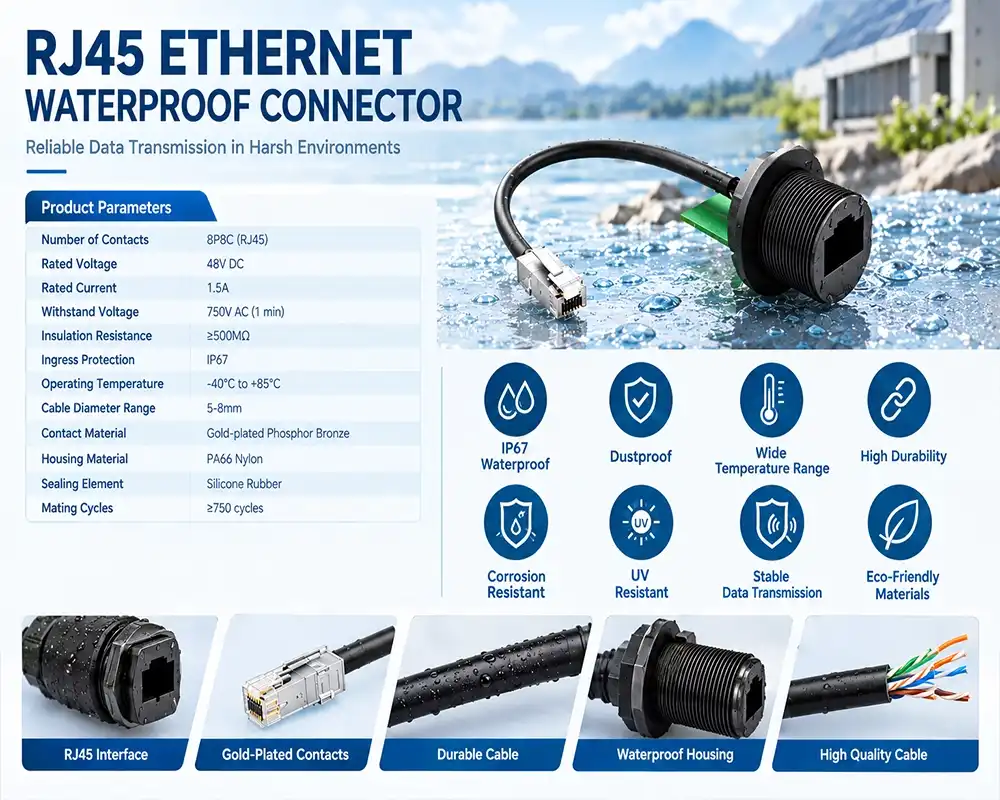

The shell of Cablein's connection is made of PA66 nylon, which is known for being resistant to UV light and tough under IEC 60529 testing standards. Inside the shell, gold-plated phosphor bronze pins have a contact resistance of less than 20 mΩ and an insulation resistance of more than 500 MΩ. This means that the signal stays stable even after hundreds of mating cycles. When the coupling nut is tightened, a precision-molded silicone sealing ring compresses evenly, making a continuous liquid barrier that doesn't change the way the conductors are lined up.

What IP67 and IP68 Actually Mean

According to IEC 60529. IP67 certification means that the RJ45 ethernet waterproof connector can withstand being submerged in water up to 1 meter deep for 30 minutes without getting wet. IP68 adds protection to depths and times set by the manufacturer, usually 2 meters for 2 hours. This covers situations like underground junction boxes or infrastructure in tidal zones. Both grades come with a "6" dust-protection tag, which means that no particles can get in under any pressure.

Benefits and Applications of Waterproof Ethernet Connectors in Harsh Environments

Changing from a regular plug to a sealed industrial RJ45 ethernet waterproof connector changes more than just the unit price when it comes to the total cost of an outdoor network project.

Measurable Advantages for Engineering and Procurement Teams

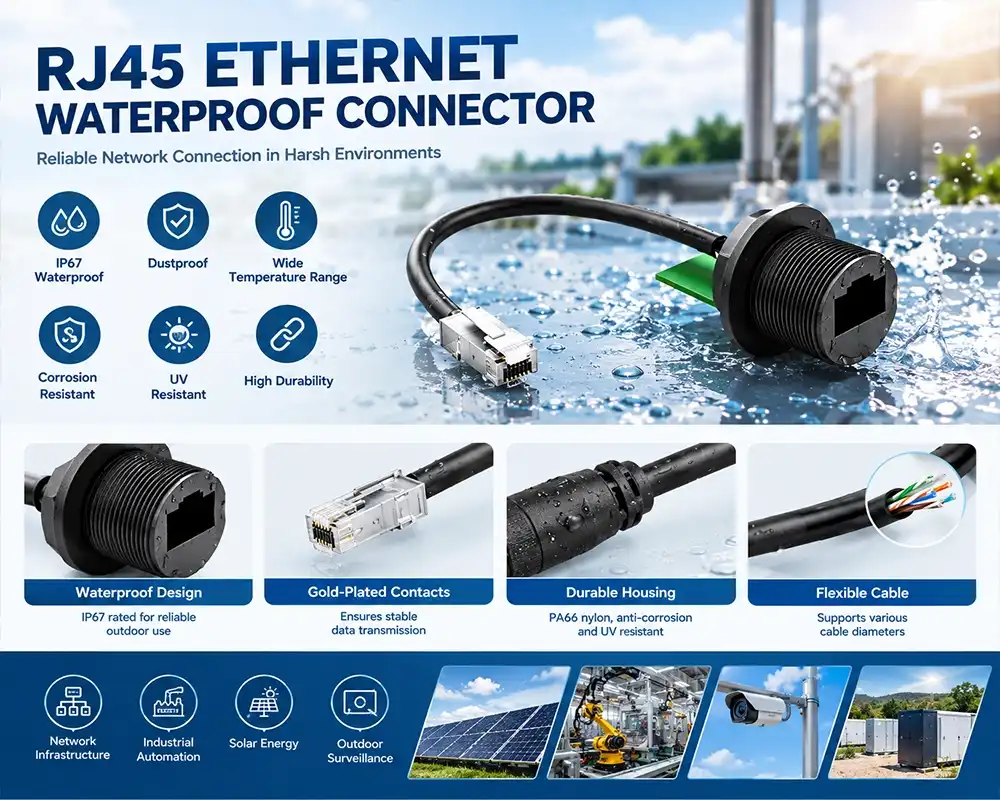

A corroded RJ45 contact raises impedance, lowers signal-to-noise ratio, and eventually requires maintenance visits that were not planned. A gold-plated, completely sealed interface, on the other hand, keeps its 1000 MHz frequency even after years of being exposed to the elements outside. Here are the main benefits of this kind of connector:

• Extended service life: Salt-spray and UV resistance tests show that the PA66 housing and plated contacts keep their properties after long-term exposure, which means they don't need to be replaced as often as alternatives that aren't protected.
• Reduced labor cost: The solder-type termination that can be installed in the field lets techs cut wires to the exact length that is needed on-site. This means that they don't have to buy pre-made stock and can install each connection point faster.
• POE and POE+ compatibility: A rated current of 20 A and a voltage value of 125 V DC/AC support both IEEE 802.3af and IEEE 802.3at power delivery, so a single cord can power cameras, access points, and sensors.

When there are fewer fails, there are fewer dispatch calls and less unexpected downtime, which directly addresses the buying pain point of high total ownership cost.

Where These Connectors Perform Best

One of the most difficult uses is for outdoor surveillance networks. In smart city operations, POE-powered IP cameras must be up and running 24 hours a day, seven days a week, even during the rainy season. RJ45 ethernet waterproof connectors on industrial automation floors are exposed to oil mist, coolant splashes, and constant vibration, all of which oxidize contacts that aren't protected within months. Salt-spray-resistant interfaces are needed to keep tracking data moving in renewable energy systems like solar panels on roofs and wind turbines in the ocean. Field-installable designs let you customize cables on-site, which is helpful for both LED arena lighting rigs and greenhouse automation systems.

How to Choose the Right Waterproof RJ45 Connector?

If you choose a RJ45 ethernet waterproof connector without an organized review framework, you might either buy one that doesn't work in the real world or one that has too many features that you'll never use. There are four useful stages in the choice.

Matching IP Rating to Deployment Depth

Most shelters that are placed on the outside of buildings don't need more than IP67. IP68 allows for longer periods of immersion, which is good for buried junction boxes, irrigation-zone controllers, or marina network panels. By making sure of the worst-case water exposure situation before placing a large order, you can avoid having to pay a lot of money to redesign later.

Shielding and Cable Compatibility

When using STP or FTP cable in places with a lot of electromagnetic interference, like factory floors, rail trackside cabinets, and broadcast venues, you need RJ45 ethernet waterproof connectors that keep the metal shielding continuity inside. Cablein's connector works with both Cat5e and Cat6 standards. Before placing an order, it is important to make sure that the cable's outer diameter fits the cable gland thread.

Certifications as a Procurement Filter

Most projects in the U.S. and Europe need to meet CE and RoHS standards and have an ISO9001:2015 quality control system in place. When buying things to send to other countries, procurement managers should also check to see if the buyer has the right ETL, TUV, or SAA certifications for that country.

Installation and Maintenance of Sealed RJ45 Connectors

The difference between a RJ45 ethernet waterproof connector that works as it should and one that lets water in during the first rainstorm is how it was installed.

Step-by-Step Field Assembly

The product description tells you how long to cut the wire jacket. Before ending the cable, thread it through the gland nut and compression sleeve. Attach each conductor to its matching pin using the solder-type termination. Use a cable tester to make sure you followed the right T568B or T568A wiring process after putting the board together. Tighten the gland nut to the torque value recommended by the manufacturer. Failure of seals in field installations is most often caused by not tightening enough.

Routine Maintenance Protocol

A visible check every three months can find problems like UV-induced housing darkening, gland nut loosening from vibration cycles, or silicone ring compression before they get bad enough to cause signal loss. Using a dry, lint-free cloth to clean gets rid of surface dirt without adding solvent chemicals that break down silicone. Before putting RJ45 ethernet waterproof connectors back together after being taken apart to reroute cables, a new silicone ring should be put on them to bring back their original IP-rated sealing performance.

Procurement and Supply Chain Considerations for B2B Clients

In large-scale deployments, supplier dependability is just as important as product specification. Cablein keeps more than 10,000 units of each item in stock and can fill most orders within 7–10 days thanks to transportation relationships with UPS, DHL, and FedEx. The engineering team does fast development and offers technical support from start to finish for OEM or private-mold projects that need custom wire lengths, pin configurations, or connector orientation. Before placing a volume purchase order with a new RJ45 ethernet waterproof connector supplier, purchasing managers should ask for sample units to be tested for IP immersion by a third party. This is in line with ISO9001 requirements for incoming inspection.

Conclusion

Standard plugs were never made to handle the threats that outdoor and industrial networks face. A sealed RJ45 ethernet waterproof connector made from UV-stable PA66 nylon, terminating with gold-plated contacts, and rated to IP67 or IP68 will protect the signal integrity for as long as the installation is in use. Installing a solder-type termination in the field simplifies inventory and cuts down on the time needed for work on-site. Buying an approved, thoroughly tested RJ45 ethernet waterproof connector is always the more cost-effective choice over the lifetime of a project, as long as the total cost of ownership is taken into account instead of just the unit price.

FAQ

Does an IP67-rated connector work with standard Cat6 patch cables?

Yes. The sealing is built into the housing and gland of the RJ45 ethernet waterproof connector, not the cable itself. A standard Cat6 wire with a suitable outside diameter can be threaded through the gland and then connected to the internal pins in the usual way. Before putting the gland together, always make sure that the outer width of the wire fits within its clamping range.

Can I reuse the connector after disassembly?

You can use the housing and contacts again, but you should get a new rubber closing ring. The compression set from the last installation makes it harder for the ring to form a consistent seal, which can lower the IP rating. You can buy replacement rings separately.

What is the difference between IP67 and IP68 for outdoor networking?

IP67 protects against short-term submerging up to 1 meter for 30 minutes. According to the maker, IP68 includes prolonged immersion at greater depths and for longer periods of time. IP67 is enough for most above-grade outdoor barriers. Applications below grade or in flood zones need IP68.

Does the connector support POE+ power delivery?

Yes. Both IEEE 802.3af (POE) and IEEE 802.3at (POE+) standards can be used with its 20 A current rating and 125 V DC/AC voltage rating.

Partner with Cablein for Your Next Outdoor Network Project

Cablein's industrial RJ45 ethernet waterproof connector can be ordered in bulk, as a sample, or with full OEM customization, including cable type, connector length, and orientation. As a reliable company that makes waterproof connectors and has CE, RoHS, and ISO9001:2015 certifications, we ship all over the world within 7–10 days from stable stock. To get a price that fits the needs of your project, email our tech team at nick@cableinco.com or visit connectorswaterproof.com to request a quote tailored to your project specifications.

References

1. IEC 60529 – Degrees of Protection Provided by Enclosures (IP Code), International Electrotechnical Commission, 2013.

2. Fluke Networks, Copper Cable Testing: Cat 6 and Beyond, 2022.

3. IEEE 802.3at-2009 – IEEE Standard for Local and Metropolitan Area Networks: Data Terminal Equipment (DTE) Power via Media Dependent Interface (MDI), IEEE, 2009.

4. ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus, ASTM International, 2019.

5. Connector Reliability in Harsh Environments, TE Connectivity White Paper, 2021.

6. ISO 9001:2015 – Quality Management Systems: Requirements, International Organization for Standardization, 2015.
