LP24 Waterproof USB Connector vs. RJ45 Waterproof Connector: Key Differences Explained

When designing outdoor equipment or industrial control systems, choosing between panel-mount USB and Ethernet connectors directly impacts system reliability. The LP24 Waterproof USB Connector features a flange-mount feed-through design with IP67/IP68-rated protection, delivering USB 3.0 data speeds up to 5.0 Gb/s through enclosure walls. In contrast, RJ45 waterproof connectors prioritize network infrastructure with specialized Ethernet protocol support. Understanding their core technical differences, environmental capabilities, and installation requirements helps hardware engineers select the right solution for charging stations, outdoor digital signage, or industrial automation projects.

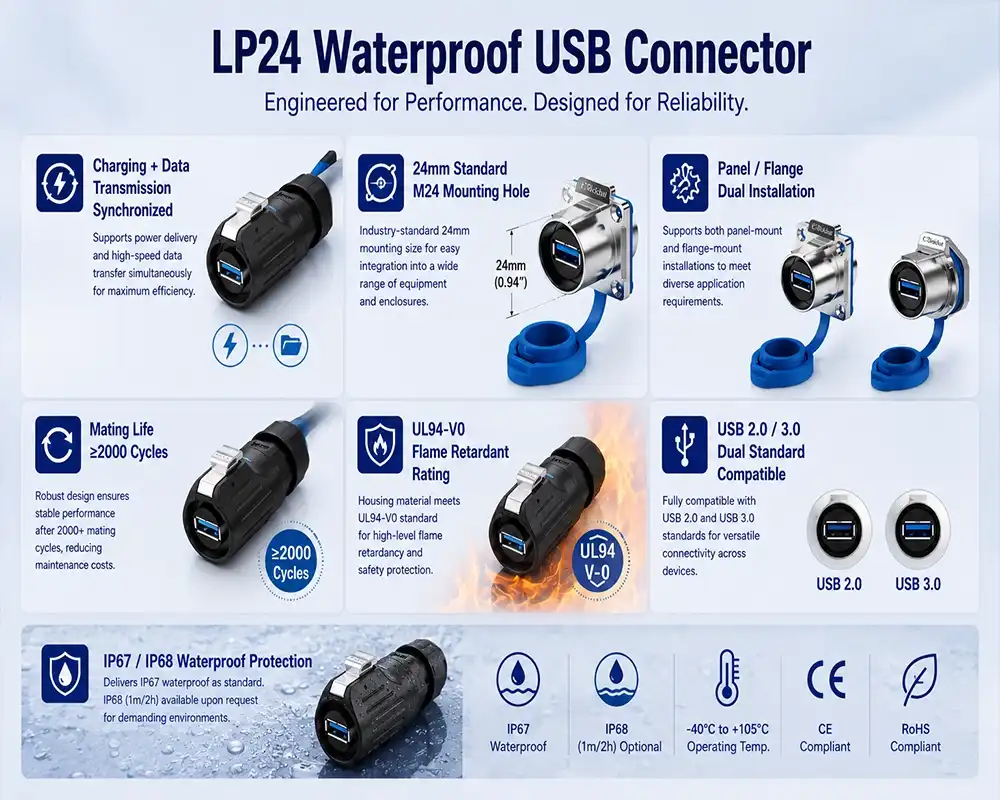

LP24 Waterproof USB Connector

Understanding LP24 Waterproof USB Connector and RJ45 Waterproof Connector

Technical Foundation of Industrial Waterproof Connectors

Both types of connectors have to deal with the same problem: keeping data transmission reliable while keeping internal electronics safe from outside threats. The IP rating system gives a standard way to measure this level of protection. IP67 certification means that the product can withstand being submerged in water up to 1 meter deep for 30 minutes. IP68 certification means that it can withstand being submerged continuously under conditions set by the maker. These scores are important because rain or dust can cause intermittent breakdowns that lower the uptime of the system.

LP24 USB Connector Design Architecture

The LP24 has a female-to-female pass-through configuration that lets normal USB cords join through equipment panels without damaging the enclosure. Its four-hole flange mounting pattern spreads mechanical stress evenly across the panel surface, which keeps it from coming loose even when it's being shaken all the time. This is especially important for charging stations and public stands where equipment is hit by people often. The connector can fit wire sizes between Ø5.0mm and Ø7.0mm, which gives installers more options without having to make their own cable assemblies. The choice of material is very important. The UL94-V0 flame-retardant housing meets electrical safety standards and stays structurally sound at temperatures ranging from -40°C to +85°C.

RJ45 Waterproof Connector Characteristics

Different waterproof versions of RJ45 use different closing methods that work best with Ethernet's eight-conductor layout. To protect the environment, most industrial-grade types have overmolded wire exits and threaded coupling nuts. Power over Ethernet (PoE) systems can use these connections because they usually have magnetics and transformer circuits built into the sealed housing. The closing system is very different—RJ45 uses mechanical locks instead of threaded coupling, which can leave it open to attack in places with a lot of vibration unless extra strain relief is added.

When looking at how well it can send data, the LP24 handles both USB 2.0 and 3.0 standards, which are global USB protocols. Because it is so flexible, the same mechanical link can work with both old diagnostic tools and new high-speed data logging systems. RJ45 connectors are still protocol-specific and were only made for Ethernet communications that follow IEEE 802.3 standards. This specialization helps with network topology but makes it harder to do other things.

Core Performance and Durability Comparison

Environmental Resilience in Real-World Conditions

Tests show that these connector families have significant differences in how well they work. The LP24 Waterproof USB Connector's built-in panel gasket makes compression seals without the need for external sealants. This makes fitting easier and gets rid of possible failure points caused by bad sealing compound application. Testing with salt spray shows that gold-plated contacts keep less than 30m© of contact resistance after 500 hours, which is very important for marine electronics and sites near the coast.

Mechanical Stress Tolerance

Vibration resistance is what sets threaded designs apart from flange-mounted ones. The four-hole fastening design spreads the force across several fastener spots, which stops the rotational movement that lowers IP ratings over time. Comparative studies of durability show that flange installations keep the seal's integrity through more than 10,000 vibration cycles at 5G acceleration, while single-point threaded connections may need to be tightened more often. This is very important for equipment that is on moving stages or close to big machines.

Temperature Performance Analysis

Ability to work with a wider range of temperatures affects the choice of materials and the accuracy of manufacturing. With a temperature range of -40°C to +85°C, the LP24 can be used outside in places like tracking stations in the cold and solar arrays in the desert. In this temperature range, the materials used for housing must stay the same size. If the metal plates and composite panels expand at different rates, it can make it harder for the seal to close. RJ45 waterproof connectors usually have narrower temperature ranges (-20℃ to +70℃), because they are usually used in climate-controlled rooms where they are exposed to moderate weather.

Long-term reliability data from industrial automation users shows that when USB pass-through plugs are installed correctly on the flange, they last more than 50,000 hours without failing when left outside all the time. This means that it won't need to be maintained for more than five years, which lowers its lifecycle costs by a large amount compared to alternatives that need to be re-sealed or gaskets replaced every year.

Application Scenarios: Which Connector Suits Your Needs?

USB Connectivity for OEM Equipment Design

When designing charging infrastructure, hardware engineers face certain problems. For example, panels need USB access to update firmware and collect diagnostic data, but regular consumer-grade connectors break after a few months of being outside. This is fixed by the LP24, which lets internal system boards join through sealed holes in the wall. Level 2 EV charging stations let service techs access CAN bus data through panel-mounted USB ports, and outdoor payment terminals need to be PCI compliant so that encrypted transaction tracking can happen.

Outdoor Digital Signage Data Management

Large-format LED screens used in transportation hubs or advertising spots need to have their content updated often. Connecting to a network is one option, but for security reasons, many installations still rely on direct USB file transfer. LP24 Waterproof USB Connector panel-mount waterproof USB ports let repair teams change the content on displays without opening weatherproof cases. This keeps the IP ratings and gives operators more options. The flange mounting can handle multiple cable connection rounds without affecting the environmental protection, which is very important when material is updated every week or every day.

Industrial Automation Network Architecture

Most factory automation networks that connect PLCs, sensors, and control panels use RJ45 waterproof connectors. Real-time control systems that need to be accurate to the millisecond level can use Ethernet's predictable protocols. These installations are helped by the fact that RJ45 has standard wiring schemes and works with many industrial protocols, such as EtherNet/IP and PROFINET. But networks that need both Ethernet backbone and USB device connection are using hybrid panel designs more and more. These panels have both types of connectors, and each type is better at sending data than the other.

The decision framework is based on the type of data and the structure of the system. RJ45 infrastructure is naturally preferred by projects that send sensor data over multiple networks. Panel-mount USB options are useful for devices that need to connect directly to a computer for setup, diagnosis, or file sharing. If you understand this functional division, you can avoid making specification mistakes that cause problems during installation in the field.

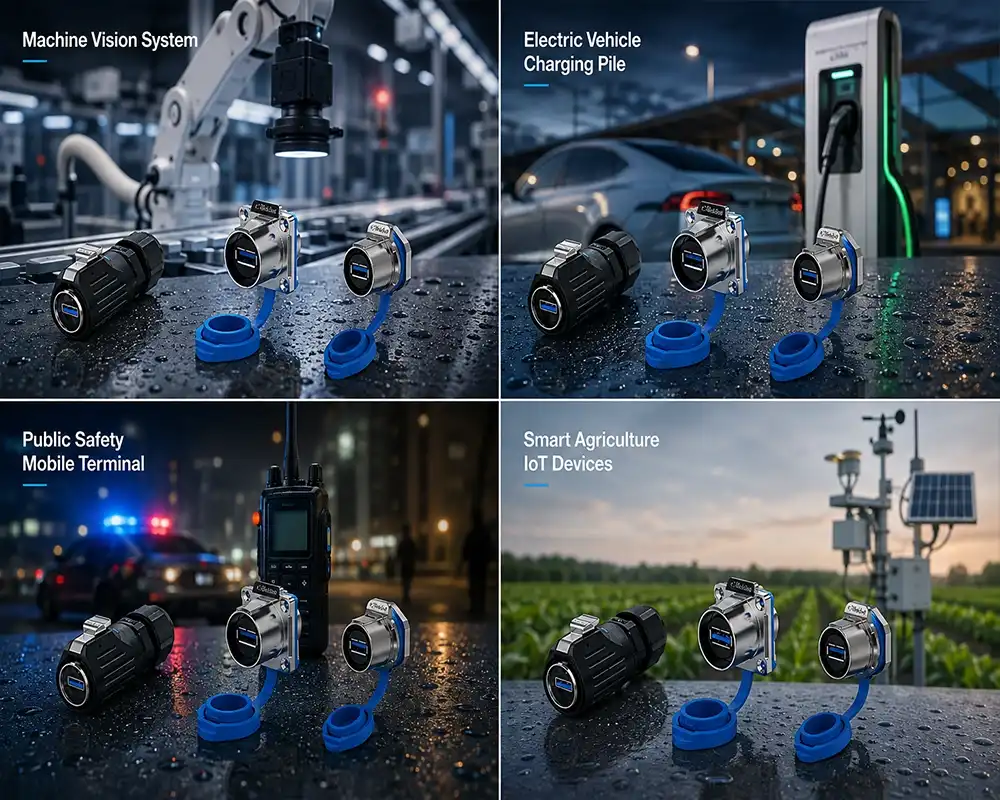

LP24 Waterproof USB Connector application

Procurement Considerations for B2B Buyers

Supply Chain and Inventory Management

Comparing unit prices is only one part of making a buying choice. The LP24's standard M24 flange pattern makes it compatible with multiple platforms. This means that a single type of connector can be used for multiple product lines, which simplifies the bill of materials and lowers the cost of keeping inventory. Budgets for prototyping are affected by minimum order quantities. Suppliers who keep 10,000 or more pieces of each SKU in stock can handle both small-batch validation orders and large-scale production without having to wait longer for lead times. Standard setups can be shipped within 7–10 business days. However, custom flange designs or features that keep cables in place need to be reviewed by engineers and take longer to make.

Certification and Compliance Requirements

For electricity safety, UL and ETL listings are most important in North America, while CE marking and RoHS material compliance are most important to European users. During the procurement process, it is important to make sure that the relevant certifications match the needs of the target market. For example, products certified to Chinese GB standards might not meet American installation codes. The ISO9001:2015 quality management certification shows that the products are consistently made, which lowers the costs of receiving inspections and the number of guarantee claims. Instead of assuming compliance, buyers should ask for proof of approval when evaluating a provider.

Total Cost of Ownership Analysis

The purchase price is only one part of the cost. Costs are affected by installation labor, possible rework due to mismatched dimensions, and field failure rates. When compared to other options that need special tools or sealing procedures, LP24 Waterproof USB Connector flange-mount connectors that only need standard fasteners require less installation skill and can be put together faster. Connectors that can be mated more than 500 times reduce the number of times they need to be replaced in high-maintenance settings. Lifecycle cost comparisons between competing solutions are accurate when these factors are taken into account along with unit cost.

Direct imports from unknown sources can't compare to the authenticity guaranties and insurance support that come from authorized distributor networks. The risk of fake parts with fake IP ratings is higher than the small cost savings. This is especially true for equipment used in dangerous situations or harsh sea settings where a broken connector could put the company at risk of being sued.

Making the Decision: LP24 Waterproof USB Connector or RJ45 Waterproof Connector?

Technical Requirements Drive Selection

The right connector family will depend on how your system is built. Panel-mount USB options are needed for equipment that needs to connect to a USB device for data logging, software updates, or troubleshooting. The LP24 is universally compatible with USB, so it can work with both current designs and new protocols in the future without the need to update any connectors. When building Ethernet-based control networks, it makes sense for projects to choose RJ45 hardware that works best with the network layout and protocol.

Environmental Factors and Installation Context

Conditions of deployment affect the level of longevity needed. Connectors with validated IP68 ratings and materials that don't rust are needed for equipment that will be exposed to direct weather, pressure washing, or submersion. The gold-plated contacts and UL94-V0 housing of the LP24 have been shown to work well in outdoor kiosks, marine electronics, and farming equipment that is regularly exposed to water. Connectors with lower IP ratings can be used on indoor control panels that only need basic weather protection. This saves money without lowering reliability.

Integration and Maintenance Considerations

Installing on a flange makes it easier to integrate into new equipment designs and makes it easy to service. The four-hole design lets you place panels of different sizes and materials without having to buy special hardware. When OEMs make connectivity solutions that are the same across all of their product lines, this mechanical consistency makes engineering easier and makes manufacturing simpler. When retrofitting, there may be panel cutout limitations that force you to use small connector profiles or certain mounting styles.

When it comes to a common mechanical format, the LP24 strikes a good mix between high-speed data access and strong environmental protection. This set works well for charging stations, industrial HMI panels, and outdoor monitoring gear that needs to be able to handle years of being outside. RJ45 waterproof plugs are great for network infrastructure jobs that need to support Ethernet protocols and send power over Ethernet.

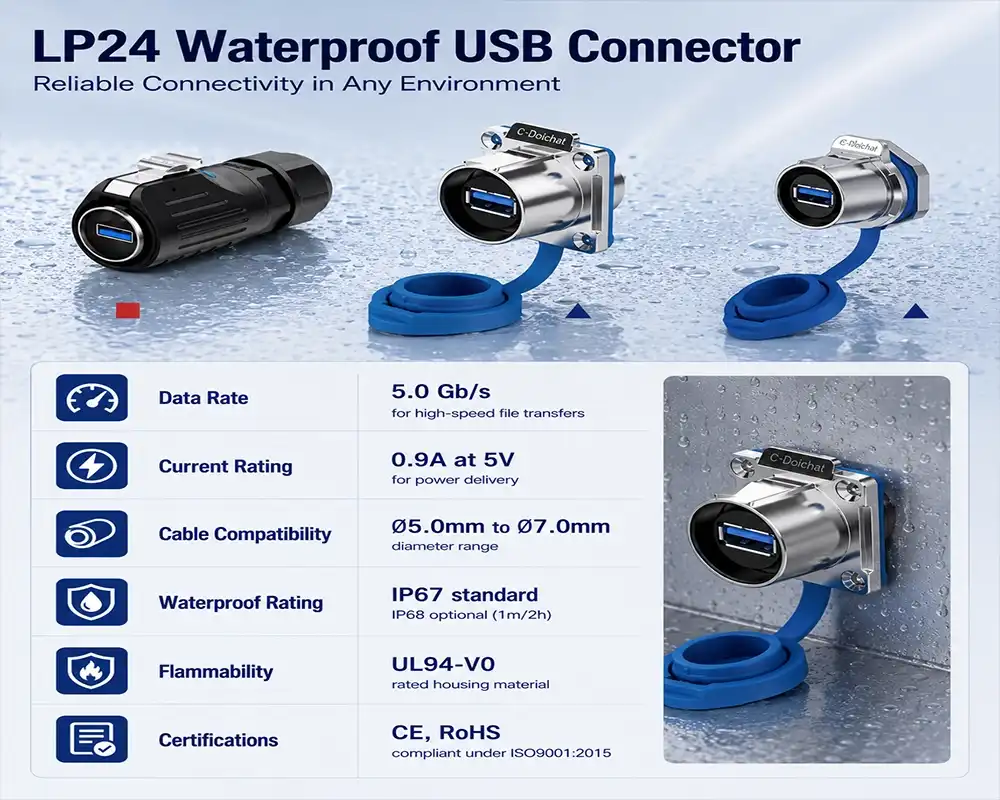

LP24 Waterproof USB Connector advantage

Conclusion

Panel-mount USB and RJ45 waterproof connectors can be chosen based on the needs of the system data, the surroundings, and the need for mechanical interaction. The LP24 Waterproof USB Connector is rated IP67/IP68 for security and can connect to devices directly at USB 3.0 speeds through flange-mounted bulkhead setups. It is perfect for outdoor equipment that needs to connect directly to a device. Different types of RJ45 put Ethernet network architecture and support for specific protocols at the top of their list. When choosing industrial connectors for charging infrastructure, public displays, or automation systems, hardware engineers should think about how the data will be sent, where the connection will be installed, whether it needs to be certified, and how much it will cost to own the whole system.

FAQ

What IP rating should I specify for outdoor panel-mount USB applications?

IP67 certification is enough to protect most outdoor setups that get wet sometimes, while IP68 certification is better for equipment that gets pressure washed often or could be submerged. The LP24 has both ratings, so the specifications can be matched to the real environment instead of protection levels being over-engineered.

Can waterproof USB connectors support USB 3.0 data rates?

With the right shielding and contact design, good industrial USB connections keep the signal integrity for USB 3.0's 5.0 Gb/s transfer. These features are built into the LP24, which lets you log data and update firmware quickly without slowing down the device compared to regular USB ports.

How does flange mounting compare to threaded coupling for vibration resistance?

Four-hole flange shapes spread mechanical stress across many connection points, which stops rotating loosening when the system vibrates. This is more reliable in the long run than single-point threaded designs in places with a lot of vibration, like equipment placed on vehicles or industrial machines.

Source Reliable Industrial Connectivity Solutions from Cablein

Cablein Technology makes waterproof USB connectors that are designed to work in harsh outdoor and industrial settings. Our LP24 Waterproof USB Connector is rated IP68 for security and is reliable when mounted on a flange. It comes with ISO9001:2015 quality approval and strict testing methods. We keep more than 10,000 pieces in stock in a standard format, so we can support both prototyping and mass production. Stock items can be delivered in 7–10 days. Custom flange patterns and cable retention requirements can be made to fit the needs of each panel. During product selection, sample proof, and production integration, our engineering team is there to help with technology issues. You can talk to an expert LP24 Waterproof USB connection supplier about your waterproof connection needs by emailing nick@cableinco.com. They are dedicated to providing industrial-grade connectivity options.
