What are the benefits of M25 Overmolded Waterproof Connector?
The M25 overmolded waterproof connector delivers exceptional reliability through its factory-sealed construction, combining heavy-duty PA66 nylon housing with gold-plated brass contacts and IP67/IP68 ingress protection. This industrial-grade solution eliminates field assembly errors, withstands extreme temperatures from -40℃ to 150℃, and provides corrosion-resistant performance ideal for outdoor LED lighting, renewable energy systems, industrial automation, and transportation infrastructure. Its one-piece design ensures long-term waterproof integrity while reducing installation time and total cost of ownership for demanding applications.
Understanding M25 Overmolded Waterproof Connectors
What Makes M25 Overmolded Technology Different
This type of M25 overmolded waterproof connector is defined by its 25mm metric thread coupling device, but overmolding greatly improves performance. Injection molding joins the cable jacket directly to the connection body during production. This makes a barrier that keeps moisture from wicking through the cable, which is a typical place where field-assembled options fail. Multi-conductor wires and terminal parts are put together in this way to make a single rugged unit that is checked for waterproofness before it is sent out.
Material Composition and Construction Standards
The outside is made of heavy-duty PA66 nylon, which is resistant to UV light and has the mechanical power needed for outdoor use. Inside, gold plating is applied to solid brass pins to lower contact resistance and keep them from oxidizing over thousands of mating cycles. When you put the precision-molded silicone O-ring on the connection that goes with it, you get IP67 protection against dust and short-term immersion, or IP68 protection for ongoing immersion up to certain depths. Extra care is taken at the point where the cable enters the system. Overmolded strain relief spreads mechanical loads over a larger surface area, keeping the wire from wearing out from vibrations or the weight of the cable.
Technical Specifications That Matter

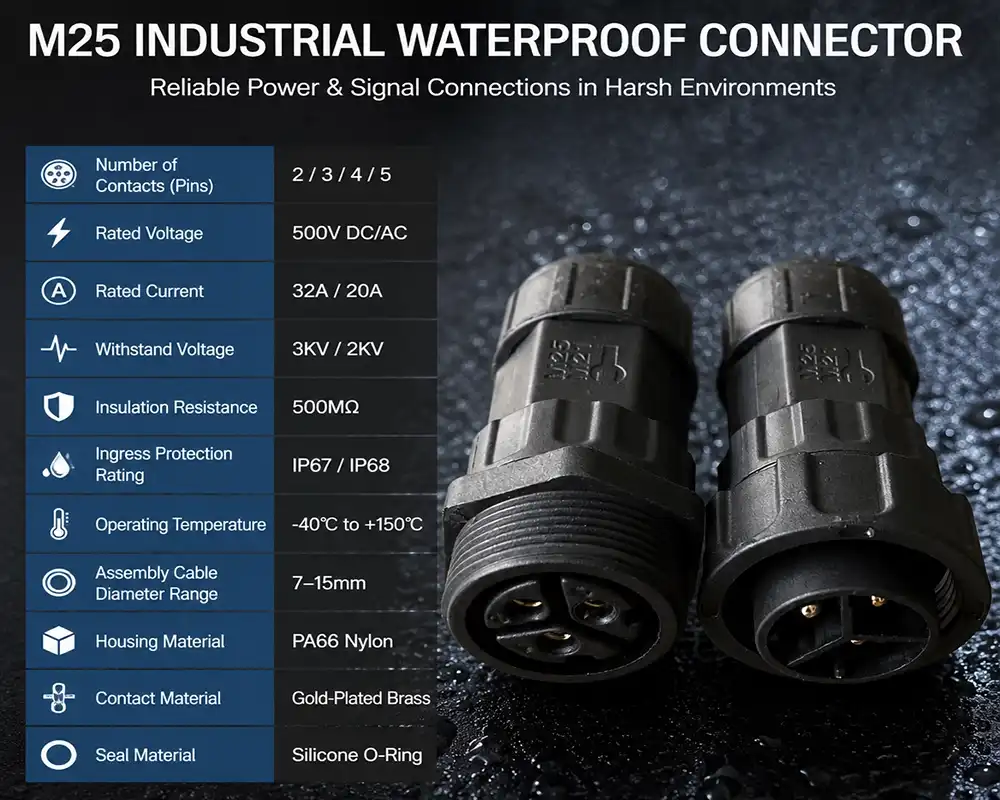

The rated power is 500V DC/AC, and the current handling ranges from 20A to 32A, based on how the pins are set up. Insulation resistance is higher than 500MΩ, which keeps the signal strong even in places with a lot of moisture. The M25 overmolded waterproof connector can fit wires with an outer width of 7mm to 15mm, and the number of pins can be changed from 2 to 5. Testing for voltage up to 3KV confirms safety margins for high-power uses. Because of these specs, the connector can be used in places where electrical stability must not be affected, like in solar inverters, EV charge stations, and outdoor control systems.
Core Benefits of Using M25 Overmolded Waterproof Connectors
Superior Environmental Protection
The IP67 grade means that the device is protected against dust and can be submerged in water for 30 minutes. Versions with an IP68 rating can withstand being submerged in water for a long time, which makes them necessary for irrigation systems, fountain lighting, and marine equipment. In contrast to regular fittings that have separate wire glands, the overmolded design doesn't have a joint where water can get in. For installations near the coast, resistance to salt spray is very important. Galvanic corrosion and rust are problems that regular metal connections have in high-humidity or marine settings, but corrosion-resistant plastics and hardware keep these problems from happening.
Enhanced Mechanical Durability and Longevity
Vibration resistance is very important in industrial machinery and rail travel systems. It's like a shock cushion, and the overmolded transition keeps mechanical stress from building up at solder joints or crimp connections. Transportation equipment is always moving, but threaded locking mechanisms and flexible overmolding keep it from coming loose on its own. When temperatures change from -40℃ to 150℃, things expand and contract. PA66 nylon stays the same size across the entire operating range, while silicone seals stay flexible where rubber gaskets would crack.
Simplified Installation and Reduced Labor Costs
Factory-assembled design of the M25 Overmolded Waterproof Connector gets rid of wiring mistakes that happen in the field and slow down projects. Installers don't have to strip wires, crimp pins, or use heat shrink—all they have to do is thread the coupling nut and hand-tighten it. When compared to standard ways, this solder-free method cuts installation time by up to 70%. Assemblies that have already been tested come ready to be used right away, guaranteeing waterproof performance without the need for special tools or training. The consistency is important to production managers because it means that every connection meets the same quality standard. This cuts down on callbacks and warranty claims.
Lower Total Cost of Ownership
Overmolded options are more cost-effective over time, even if they cost more per unit than standard connections at first. Lower construction labor costs quickly make up for higher material costs. More importantly, lower failure rates mean less money is spent on downtime. Replacing a failed connector in a working solar farm or streetlight network costs money because it takes time to figure out what's wrong, rents equipment, and stops production. Maintenance times are longer because locked links don't let dirt in. Quality managers like it when performance is reliable, and buying departments get budget approval based on proof that reliability has improved.
Comparing M25 Overmolded Waterproof Connectors With Alternative Solutions
To get waterproof ratings, standard M25 connectors with different wire glands need to be carefully put together, which introduces the possibility of human mistake. It's easy for field techs to forget to do things like properly seat O-rings, tighten compression nuts to the exact torque specs, and check the integrity of the seals when they are pressed for time. Designers have to use more than one connection when a single M25 would have been enough because M20 connectors can handle less power. Metal-bodied IP68 options have strong housings, but they cost 30–50% more and weigh a lot more, so they can't be used for large-scale projects like smart city lighting networks.
The cost-benefit analysis changes based on the number of applications. Field-wireable plugs let you change cord lengths on-site, which is useful for developing prototypes or making small runs of less than 100 units of equipment. Once output goes over 500 units per year, factory-molded assemblies become a strong option because they save time and money on work. For projects that need IP68 submersion ratings, overmolded construction is pretty much the only way to go because field-assembled options rarely seal well enough to last under water pressure.
Applications and Industry Use Cases of M25 Overmolded Waterproof Connectors
Renewable Energy Infrastructure
Solar systems that cover acres of dry land have to deal with strong UV rays, changes in temperature, and sometimes sandstorms. The M25 overmolded waterproof connector connects generators to junction boxes and keeps the electricity flowing for 25 years. For wind turbine pitch control systems to work, the links must be able to withstand vibrations and not come loose as the nacelles spin millions of times. Offshore sites have to deal with salt spray. Materials that don't rust stop electricity problems that require expensive repair helicopters to be sent out.
LED Lighting Systems
Stadium floodlights use a lot of power and are mounted on tall poles that can be affected by wind. The M25 overmolded waterproof connector can handle 300W to 500W LED drivers, and strain relief keeps the cables from moving when they get tired. There are hundreds of fixtures that go into architectural facade lighting. Factory-assembled connectors make installation quick during short construction windows. In greenhouses, where the temperature and humidity are constantly changing, agricultural grow lights have to deal with high humidity. The IP68 grade protects them from condensation-related shorts.
Industrial Automation Equipment
Food preparation plants have to use harsh cleaning chemicals and high pressure every day. M25 overmolded waterproof connector variants that are rated IP69K can handle these strict hygiene rules. Robotics companies put overmolded assemblies into articulating arms so that internal cable routing problems don't happen. On factory floors, sensor networks need to be able to send signals reliably even when there is electromagnetic interference and mechanical shaking. Even after thousands of connect/disconnect cycles during equipment reconfiguration, the gold-plated contacts still have low resistance.
Transportation and Smart City Projects
Cameras that watch for traffic are put on poles that are out in the weather, road salt, and engine fumes. When highway work zones have strict due dates for completion, fast installation is important. Rail transport systems need connections that keep the signals working by vibrating all the time and have safety certifications that have been proven. Smart streetlight networks with thousands of nodes benefit from standard wires that are already put together. This makes inventory less complicated and lets technicians switch between repair zones.
How to Choose and Procure the Best M25 Overmolded Waterproof Connector
Matching Technical Requirements to Application Needs
First, make sure that the electrical parameters are correct. The voltage and current ratings must be higher than the maximum operating loads by a safety margin. The choice of pin count relies on whether the application needs separate ground lines or lines that carry both power and signals. The material of the cable jacket is important. PVC can be used indoors or in light outdoor situations, while polyurethane (PUR) can handle oil and wear in industrial settings. Extreme temperature rates are based on climates. For example, Arctic systems need to be able to handle -40°C, while engine compartments need to be able to handle 150°C.
Evaluating Supplier Capabilities and Certifications
Reputable makers have ISO9001:2015 certification, which shows that they control the production process, as well as product-specific approvals like ETL, CE, RoHS, and REACH compliance. When exporting equipment or bidding on government contracts with strict rules, these certifications are important. Suppliers who offer OEM customization services offer more value than just stock goods. For example, private mold development lets suppliers create their own connector designs that stop fake replacement parts. Responding quickly to technical support requests is what sets competent vendors apart from order-takers. Engineering teams should help with cable specifications, strain relief optimization, and waterproof testing protocols.
Understanding Lead Times and Inventory Management
Standard versions can usually be shipped within 7-10 days from stock, which makes them great for fast testing and small production runs. Manufacturing wait times for custom cable systems range from two to four weeks, based on how complicated they are and how many are ordered. Strategic buyers place blanket orders for things that will be used up quickly, which ensures a steady supply without keeping too much inventory on hand. Emergency support skills are important—can the supplier speed up important orders when broken equipment threatens production schedules?
Warranty Terms and Long-Term Partnership Value
Good makers stand behind their goods with clear warranties that cover both problems with the materials and the way they were put together. Make it clearer how to file a claim and whether defective units need to be sent back for analysis or replacements should be sent right away. Long-term relationships have benefits beyond just lower prices. Suppliers learn a lot about your application needs and can offer better products and let you know about problems in the supply chain. Checking references with current customers shows how reliable a supplier is under pressure, like when parts are in short supply or when quality stays the same over multiple years of contracts.
Conclusion
The M25 overmolded waterproof connector solves important industrial connectivity problems with its factory-sealed design, ability to withstand harsh environments, and ease of installation. It can handle a wide range of temperatures, has an IP67/IP68 rating, and is mechanically durable. These qualities make it perfect for hard outdoor and industrial uses where link failure costs a lot. Even though the unit price is higher than options that are built on-site, the total lifecycle value is higher because of less work, less upkeep, and better reliability. A good procurement process balances technical requirements with supplier certifications, customization options, and the quality of long-term support to meet both immediate project needs and long-term operational performance goals.
FAQ
1. What distinguishes IP67 from IP68 waterproof ratings?
IP67 approval guards against dust and short-term immersion up to 1 meter for 30 minutes. This makes it good for outdoor gear that gets wet or splashed with water from time to time. IP68 protects against continuous submersion at depths and for lengths of time defined by the maker. This is important for underwater lights or equipment placed in areas that are likely to flood.
2. Why does overmolding improve connector durability compared to field assembly?
Factory overmolding gets rid of the spot on the cable where water usually gets into connectors that were put together in the field. Precision injection molding makes the seal tension the same around the whole wire, and built-in strain relief spreads out mechanical loads that would build up at hand-assembled terminations. Pre-tested assemblies guarantee waterproof integrity compared to connections made in the field, which depend on how skilled the installer is.
3. Can M25 connectors handle high-vibration industrial environments?
The molded-over transition acts as a sound dampener, which keeps wire termination points from wearing out. When there is constant shaking, a threaded coupling with locking features will not come away on its own. Gold-plated contacts keep their ability to conduct electricity even when they move very slightly, which would damage brass that hasn't been treated. Because of these features, M25 overmolded waterproof connectors are commonplace in heavy machinery and transportation.
4. What customization options support specific project requirements?
Manufacturers offer flexible cable lengths ranging from 0.5 meters to 50 meters or more, custom pin configurations that mix power and signal conductors, jacket materials that are best for chemical or abrasion resistance, and the option to private label or brand the cables. Some suppliers make their own molds for specific mechanical interfaces. This helps to differentiate the product and keep the aftermarket under control.
Partner with Cablein for M25 Overmolded Waterproof Connector Solutions
Cablein Technology offers certified M25 overmolded waterproof connector assemblies that are made to work reliably in the toughest situations. As an experienced manufacturer, we keep more than 10,000 pieces in stock in a common format. This means that we can deliver your project needs in 7 to 10 days. You can fully customize our engineering team's work. Just tell us the exact length of the cable, the arrangement of the pins, and the material of the jacket, and we'll come up with solutions that meet your needs. Our work is backed by ETL, CE, and RoHS certifications and is managed under ISO9001:2015 quality standards.
We know what the technical needs are for projects in LED lighting, green energy, industrial automation, and transportation because we have more than 15 utility model patents and our own research and development department. When you have questions about specifications, our expert help is available 24 hours a day, 7 days a week. Our OEM/ODM services are also very flexible, so they can handle both small prototype orders and large production orders. Get in touch with our experts at nick@cableinco.com to talk about your M25 overmolded waterproof connector needs and get prices that are tailored to your buying timeline and budget.
