What are the benefits of using M25 connectors in harsh industrial settings?
M25 industrial waterproof connectors offer important safety and dependability when normal electrical connectors fail. These connectors have IP67 and IP68 ratings, which means they can handle being submerged in water, getting dust on them, and mechanical vibrations in harsh conditions. They have gold-plated brass contacts and PA66 nylon housings, so they can reliably send up to 32A at 500V of power and work in temperatures from -40°F to +150°F. M25 solutions keep hermetic seals even when the environment is constantly stressed, so you don't have to worry about costly downtime when you're locking solar junction boxes, tracking equipment abroad, or robotic actuators on factory floors.
Understanding M25 Industrial Waterproof Connectors
An M25 industrial waterproof connector has a thread width of 25 mm, which tells you what kind of heavy-duty electrical link it is. This size can fit cables with diameters between 7mm and 15mm, so it can be used in places that need thick-gauge wire for high power. The term "M25" tells you both the size and the high building standards needed in the business world.
What Makes M25 Connectors Different?
Industrial waterproof connections, on the other hand, are safer in more than one way. The threaded connection system creates a mechanical lock that stays in place even when there is shaking at a high frequency. A thread squeezes an O-ring made of silicone into a tight shape. This keeps water and dirt out. Inside, contacts made of gold-plated brass lower electrical resistance and stop galvanic rust in places that are wet or salty.
IP67 and IP68 Protection Explained
IP scores show how well something keeps outsiders out. For 30 minutes, the product can be submerged in water up to 1 meter deep and still be protected from dust. This is known as IP67 certification. Adding to this, IP68 lets the device stay submerged in water for 24 hours or longer, as long as the manufacturer's directions say it can. These scores let procurement teams know that the connector will work well in wet parts of factories, outside, and in the water.

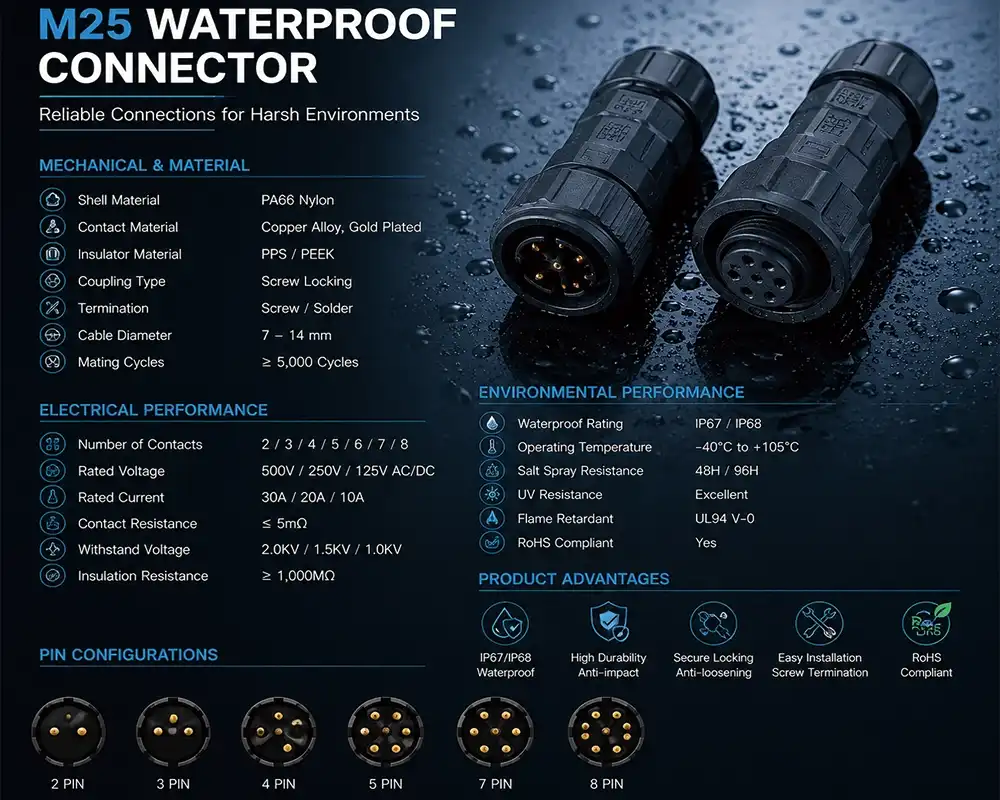

Material Selection and Technical Parameters
The housings of Cablein's M25 connections are made of PA66 nylon, which is very strong against UV light and impact. When this engineering-grade thermoplastic is put in full sunlight, it doesn't break or change color. The contact resistance of gold-plated brass is low, at less than 5 m. This lets current flow smoothly and keeps heat from building up over time. From -40℃ to +150℃, the rubber O-ring stays flexible. This means that the seal doesn't harden or soften, which would make it less waterproof.
The rated voltage is 500V DC/AC, the rated current is 32A (or 20A depending on how the pins are set up), the withstand voltage is 3KV, and the insulation resistance is 500M©. These are some important technical facts. Because of these qualities, M25 connections can be used for many things, like sending messages and distributing power when things get tough.

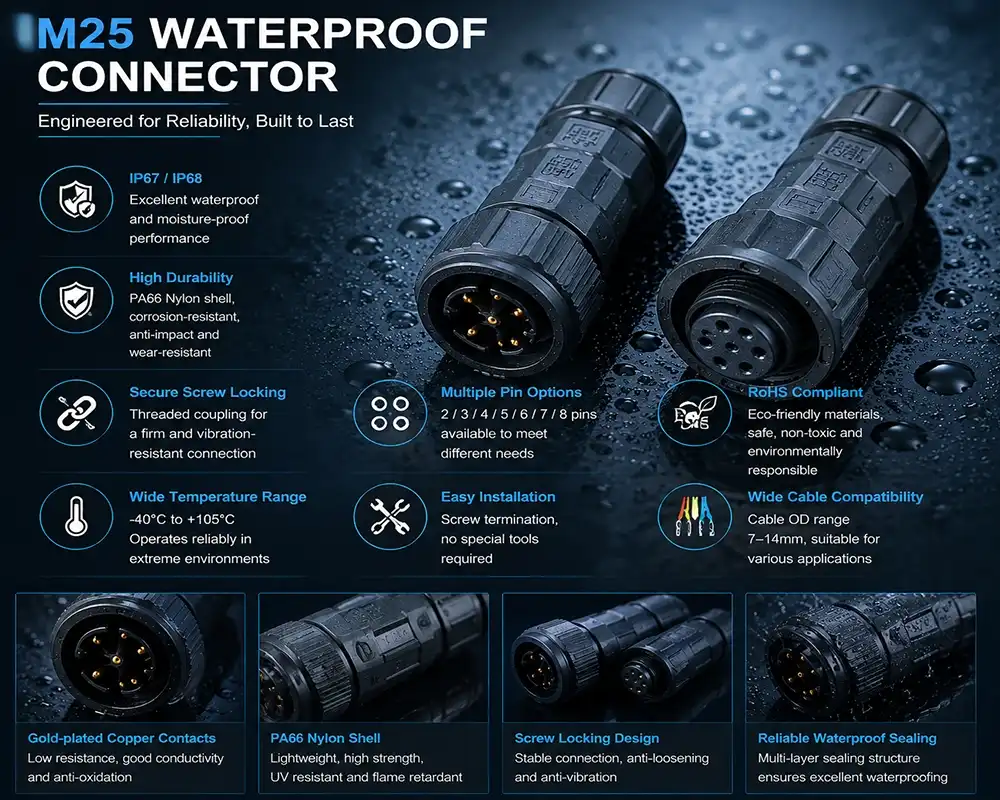

Core Benefits of Using M25 Connectors in Harsh Industrial Settings
It makes a direct difference in how well operations run and how much it costs to maintain to use the right interconnect technology. An engineer or operations manager in a lot of different businesses can use M25 industrial waterproof connectors to solve a number of issues.
Superior Environmental Protection
A lot of the time, electricity problems in outdoor gear happen because water gets inside. When water gets into a connection, it can cause a short circuit, damage the insulation, and rust the connections. Even when they are fully buried, water can get into M25 connections with an IP68 grade. It doesn't have a "wicking effect" where water moves along wires into areas that are supposed to be sealed. This is because the reinforced silicone seal stays strong even when the temperature changes and it is pressured.
Both dust and particulate contamination can be harmful. This is especially true in factories where metal shavings, concrete dust, and chemical powders are present in the air. These things can't get in because there is a constant seal around the wire entry point. This shields the electricity and keeps the contact surfaces from wearing down.
Mechanical Robustness Under Vibration
Over time, vibrations from mobile devices, heavy machinery, and transportation systems make screw terminals and push-fit connectors come free. The mechanical stress around the coupler is spread out evenly by M25 threaded housings. This keeps it from turning or coming apart. The locking mechanism has to be carefully torqued in order to disengage. This means that it can't happen by accident while the machine is running.
The PA66 nylon material can handle impact without breaking, which is useful when tools are dropped, accidents happen, or sudden stops need to be made. Because this material is strong, it lasts longer and needs less upkeep that wasn't planned.
Simplified Installation and Reduced Labor Costs
Crimping, soldering, or special tools are needed for traditional wiring methods, which makes installation take longer and require more training. Cablein's M25 links have screw-type terminals that have built-in pressure relief. No crimping tools or soldering irons are needed; technicians just strip the wire, put it in the terminal block, and tighten the screw.
The built-in cable gland holds the wire in place and keeps it physically separate from the electrical contacts. This design keeps pullout forces from putting too much stress on the end point, which is a usual way for field-installed systems to fail. If you can install things faster, you'll save money on labor costs per connection point and get the project up and running faster.
Multi-Pin Flexibility for Complex Systems
A single cable run is often needed for modern industrial equipment that needs both power and signal conductors. There are 2, 3, 4, and 5-pin designs for M25 connectors that can be used for mixed-current uses. For three-phase AC power, a solar inverter junction box might need three pins. On the other hand, an automation sensor needs four pins to mix 24V DC power with data signs that go both ways.
This flexibility cuts down on the number of connectors needed and makes panel layout easier. There are fewer possible failure modes and easier troubleshooting when problems happen when there are fewer separate link points. The standardized M25 thread makes it possible to use the same thread on different types of equipment, which makes it easier for maintenance teams to keep track of their inventory.
Chemical and UV Resistance
Outdoor displays are constantly hit by UV light, which breaks down plastics through photochemical processes. UV stabilisers in PA66 nylon keep the material's features even after years of being in full sunlight. When used in stadium floodlights, solar farms, or agricultural grow lighting, M25 connectors don't yellow, break, or crack like cheaper products do.
In naval and industrial control settings, chemical resistance is important. During normal operations, cutting fluids, hydraulic oils, and mild acids come into contact with connectors. PA66 nylon can handle these conditions without growing or breaking down, and gold-plated contacts don't oxidize even in environments that are acidic.
Certification and Compliance Assurance
When purchasing parts for export markets or industries that are regulated, procurement managers have to follow strict rules. M25 plugs that are approved to CE, TUV, and RoHS standards show that they meet European safety and environmental rules. Certifications for ETL and PSE let you enter the North American and Japanese markets, respectively.
Cablein's manufacturing method is ISO9001:2015-certified, which means that the quality of each batch is the same. Before it is shipped, every connection is tested for dielectric strength, salt spray tests according to ASTM B117, and mechanical life-cycle validation. Tough quality control cuts down on failures in the field and keeps project schedules from getting pushed back, which costs a lot of money.
Comparative Insights: M25 Connectors vs. Alternative Solutions
To choose the best M25 industrial waterproof connector size and type, you need to know how different technologies affect each other. M25 connections are in the middle of the small M20 connectors and the bigger M32 or M40 connectors.
M25 vs. M20 Connectors
M20 plugs can work with cables that have a width of 5mm to 10mm, which means they can be used for low-power tasks like wiring LED signs or sensors. Their smaller thread width makes installation easier in panels with limited room, but it also reduces the amount of current they can carry to about 10 to 15A. The M20 is used when size and weight are more important than power output.
M25 connectors can handle cables with a diameter of up to 15 mm and can deliver up to 32A of rated current. Thicker wires are needed for voltage drop and heat dissipation in high-power motors, HVAC systems, and renewable energy grids. The bigger thread also gives more contact area, which makes the seal more reliable when it is vibrating for a long time.
Threaded vs Quick-Disconnect Designs
Quick-disconnect connectors, such as M12 bayonet-lock types, can be mated and unmated without using any tools. This makes them perfect for uses that need to connect and disconnect often. But bayonet mechanisms can come loose when there is a lot of vibration, and the fact that their threads don't engage all the way makes the seal less strong.
M25 threaded joints need to be tightened with a wrench, but they are very stable mechanically. The many thread turns spread the clamping force out evenly, which makes the O-ring seal contract equally. This design works great for fixed setups where the security of the connections is more important than how easy it is to change them.
Plastic vs Metal Housings
Metal M25 connectors are ideal for military or aerospace use because they offer the best electromagnetic shielding and impact resistance. Because they are heavier and cost more than plastic options, they can't be used for business projects that need to stay within budget.
PA66 nylon housings are the best of all worlds because they are light, strong enough to withstand impacts, and resistant to chemicals. Plastic housings are dielectric, which means they keep critical instrumentation systems from getting ground loops.
Procurement Guide for M25 Industrial Waterproof Connectors
When making strategic sourcing decisions, you have to weigh the total cost of ownership, technical requirements, and delivery times. When purchasing managers look at M25 industrial waterproof connector providers, they need to look at a few important things.
Supplier Evaluation Criteria
Project delays can be avoided by keeping inventory levels stable. Leading providers keep more than 10,000 units of each SKU in stock, so they can fill pressing orders right away. Cablein's 6,000 ㎡ facility can handle both standard catalogue items and custom setups. This cuts down on lead times for importers who use warehouses overseas.
Certification portfolios let people into a market. Suppliers with ETL, CE, TUV, PSE, and SAA certifications have put money into testing products and building compliance infrastructure. When selling in controlled markets or bidding on government contracts, these qualifications speed up the approval process.
Responding quickly to technical help requests is what sets true partners apart from commodity sellers. Engineers need quick information on how to test for IP ratings, how to set up pins, and how to make sure cables work with each other. Design iteration processes are shortened when suppliers offer technical support and application engineering talks 24 hours a day, 7 days a week.
Pricing Structures and Cost Drivers
M25 connectors usually cost between $3 and $15 per unit, but this depends on the number of pins, the grade of the material, and the amount of approval. There are volume discounts for orders of 100, 500, and 1,000 units, and at the highest levels, you could save up to 20-30%.
Customization costs more, but it can solve some problems. There are engineering fees and tooling charges for custom cable lengths, non-standard pin configurations, or private-mold housings. But these investments get rid of changes to the field that raise labor costs and cause quality to vary.
Lead Times and Order Fulfillment
Standard catalogue items are shipped within 7-10 days from reputable sellers who keep stock in the area. Custom parts take 15-30 days, based on how complicated they are and how many are ordered. To make sure that production ability and delivery times are met, procurement managers should share project schedules early on.
Total landed cost is affected by how the goods are shipped. Air freight through UPS, DHL, or FedEx can arrive within 3-5 days, but it costs a lot more for big packages. Shipping goods by sea cuts the cost of travel by 60-70% and takes 20-35 days to get from one place to another. Smart buyers split their orders so that prototypes are sent by air and large quantities are sent by sea.
Installation and Maintenance Best Practices for M25 Connectors
When you install an M25 industrial waterproof connector correctly and do regular maintenance, you can make it last longer and keep its waterproof integrity even in harsh conditions.
Step-by-Step Installation Guide
Getting ready starts with choosing the cables. Make sure the outer diameter of the cable is between 7 and 15 mm, which is the range recommended for M25 glands. Take off the insulation to reveal a piece of wire that matches the depth of the terminal block, which is usually 8-10mm. Avoid strip lengths that are too long, which can cause short circuits, or too short, which lowers contact pressure.
A common mistake that needs to be fixed is putting the wire through the backshell before terminating the leads. Follow the pinout diagram and thread the conductors into the screw terminals, making sure to pay attention to the polarity for DC circuits. Using a calibrated screwdriver, tighten the terminal screws to the torque standard, which is generally between 0.5-0.8 Nm. Be careful not to over-tighten, which can damage the strands.
To squeeze the O-ring, move the cable gland nut forward and hand-tighten it against the housing. Use a wrench to finish tightening, usually one-quarter to one-half turn past hand-tight. The O-ring gets deformed when it is over-compressed, and it gets holes in it when it is under-tightened.
Maintenance Protocols
Every six months, routine checks find early signs of wear before they cause problems. Look at the housing to see if it has any cracks, discolouration, or deformation. Check to see if the wire gland has come loose because of vibrations or changes in temperature. If you need to, re-torque it according to the fitting instructions.
Isopropyl alcohol and a lint-free cloth can be used to clean the outside of something to get rid of dirt and other things that can break down UV inhibitors or make tracks for electricity to leak. Solvents made from gasoline should not be used on PA66 nylon.
How often preventive replacements are done depends on how bad the application is. Every three to five years, connectors that are used in places with a lot of shaking, like rail travel, should be replaced. In controlled settings, static installations may work effectively for 10 years or more before the seal wears out and needs to be replaced.
Troubleshooting Common Issues
When connectivity goes out and on, it's usually because of loose terminal screws or contacts that have corroded. To be sure of the problem, turn the equipment off and on again, then disconnect it and look at the connection. If corrosion shows up, re-strip and re-terminate, and use dielectric grease on the reassembly to stop oxidation from happening again.
Water getting in even though the grade is IP68 suggests a bad fitting. Take the connection apart and look at the O-ring to see if it has any cuts, twists, or foreign objects stuck in the closing surface. Before putting it back together, replace any broken O-rings and clean the mating areas very well. Make sure the cable diameter matches the gland's requirements. Cables that are too small won't be able to compress the seal enough.
Conclusion
M25 industrial waterproof connectors combine IP67/IP68 protection, mechanical strength, and ease of fitting to solve important reliability problems in harsh settings. Because they can be used in LED lights, green energy, automation, and transportation, procurement teams need to be able to find the best balance between performance, cost, and compliance. The TUV, CE, and ISO9001 standards show that Cablein's PA66 nylon design with gold-plated contacts is very durable. From the prototype to production, the project will be a success as long as the suppliers offer stable inventory, technical support, and the ability to make changes. When you install and maintain connectors correctly, they last longer, protecting your long-term business investments in mission-critical systems.
FAQ
What IP rating do M25 connectors typically provide?
Most M25 industrial waterproof connectors get grades of IP67 or IP68. IP67 protects against dust completely and water immersion for 30 minutes up to 1 metre. IP68 adds more protection by letting them stay submerged in water for longer periods of time, usually 2 meters for 24 hours. This makes them good for marine installations and outdoor gear that gets wet or flooded.
Can M25 connectors handle high-vibration applications?
M25 connectors are very resistant to vibration thanks to their threaded locking mechanism and PA66 nylon housing. When mechanical stress is spread out widely, like in industrial motors, robotics, and train transit equipment, multi-turn threads keep things from coming loose during 500-2,000 high-frequency oscillations. Before they are certified, connectors are put through mating cycle tests to make sure they are mechanically durable.
Should I choose plastic or metal M25 connectors?
For most industrial uses, PA66 nylon housings are the best balance of strength and weight. They are resistant to impacts and chemicals and UV light, and they are lighter than metal alternatives. Metal housings are better at blocking electromagnetic waves and protecting against extreme impacts, but they cost a lot more. For outdoor LED lights, solar panels, and robotics, choose plastic. Save metal for specific RF uses or places where explosions are likely to happen and maximum mechanical safety is needed.
Partner with Cablein for Reliable M25 Industrial Waterproof Connector Solutions
Cablein Technology makes M25 industrial waterproof connectors that meet the strict needs of engineers and procurement managers all over the world. Our field-installable connectors have rubber O-rings, gold-plated brass contacts, and TUV-certified IP68 grades. They can handle up to 32A at 500V and work in temperatures ranging from -40℃ to +150℃. We keep more than 10,000 units of each configuration in stock, so normal orders will be delivered in 7–10 days, and we can do full OEM/ODM customization for unique projects. Cablein is a reliable company that makes M25 industrial waterproof connectors. Their quality is ISO9001:2015-certified, and they have more than 30 utility model patents and nine years of experience in the field. Email our engineering team at nick@cableinco.com to talk about your application needs and get personalised suggestions that will cut down on installation time, lower your total cost of ownership, and make sure you meet international standards.
References
1. Chen, Wei, and Liu, Xiaogang. "Waterproof Connector Design for Outdoor Lighting Systems." Journal of Industrial Electronics and Applications, Vol. 15, No. 3, 2022, pp. 145-162.
2. International Electrotechnical Commission. "IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). " 3rd Edition, Geneva: IEC Publications, 2020.
3. Martinez, Carlos. "Vibration Resistance in Industrial Connectors: Material Selection and Thread Design." Proceedings of the International Conference on Industrial Automation, Berlin, 2023, pp. 87-94.
4. National Electrical Manufacturers Association. "NEMA 250: Enclosures for Electrical Equipment (1000 Volts Maximum). "Rosslyn: NEMA Standards Publication, 2021.
5. Thompson, Richard, and Yamada, Kenji. "Long-Term Reliability Testing of Waterproof Connectors in Marine Environments." Marine Technology Society Journal, Vol. 57, No. 2, 2023, pp. 78-91.
6. Zhang, Hua. "Cost-Benefit Analysis of Quick-Connect versus Threaded Industrial Connectors." Supply Chain Management Review, Vol. 28, No. 4, 2024, pp. 112-125.
