What Is an M20 Feed-Through Wire-to-Wire Waterproof Connector? A Complete Guide

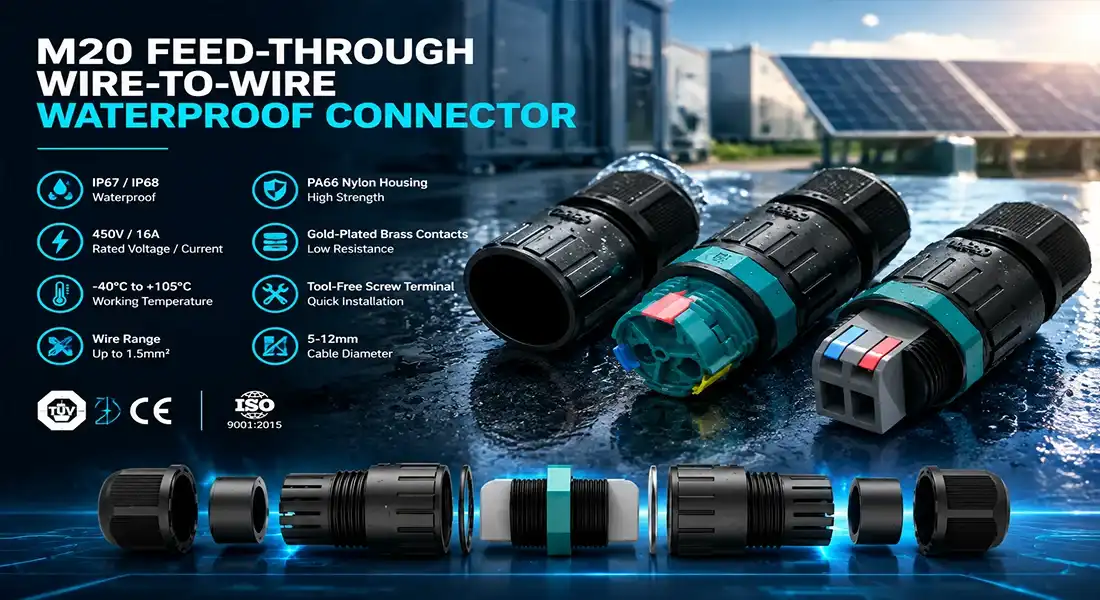

An M20 feed-through wire-to-wire waterproof connector is a precision-engineered electrical interconnect built around a metric M20 thread (20mm diameter). It creates a sealed, inline bridge between two cable ends, allowing power or signal to pass through panels, enclosures, or bulkheads without exposing the joint to moisture, dust, or corrosive agents. Rated IP67 or IP68, these connectors address field problems like capillary wicking, mechanical strain at splice points, and high failure rates from manual field joins—making them a go-to choice for outdoor lighting, smart city infrastructure, and industrial automation projects.

Understanding M20 Feed-Through Wire-to-Wire Waterproof Connectors

What "Feed-Through" Actually Means

What "feed-through" means is that the connection can let a wire go straight through a housing or panel while keeping an airtight seal on both the entry and exit sides. The inline straight-through body keeps the wire run short and doesn't need any panel cutouts or extra glands, unlike a normal plug-and-socket pair. This is especially helpful when adding to current conduit lines on traffic control cabinets or lights on the outside of a building.

How M20 Threading Defines Performance

This family of connectors is held together by the M20 metric thread, which has a nominal diameter of 20 mm. It can hold wires with cross-sections up to 1.5 mm² and cable outer sizes from 5 mm to 12 mm. The thread pitch keeps the coupling nut in place even when it's vibrating, which keeps cheaper compression fittings from slowly coming loose in coastal or industrial settings.

Where These Connectors Are Standardized

Please note that the M20 feed-through connectors are tested to make sure they meet the requirements of IEC 60529 and EN 62444 for cable glands. Conformity is checked by CE and TÜV marks, and ISO 9001:2015 manufacturing controls make sure that each batch is the same. This is a must-have requirement for procurement managers at lighting integrators and smart city contractors.

Benefits and Key Features of M20 Wire-to-Wire Waterproof Connectors

Material and Sealing Architecture

The high-strength PA66 nylon housing of Cablein's M20 inline waterproof connection is rated UL94-V0 for flame retardancy and UV protection. The silicone used to make the sealing ring is very stretchy, so it stays compressed even when the temperature changes from -40°C to +105°C. The resistance of the gold-plated brass contacts stays below 5mΩ, which lowers the voltage drop along strings of daisy-chained floodlights.

Electrical Ratings That Matter in the Field

The dielectric strength of the M20 feed-through wire-to-wire waterproof connector has been tested to meet international standards and is rated at 450V and 16A. These numbers allow high-wattage wall washers and projector lights to connect to the main power line without the need for a bigger wire fix. Here is a quick look at the main electrical specs:

• Rated voltage: 450V AC/DC
• Rated current: 16A
• Contact resistance: <5mΩ (gold-plated terminals)
• Wire cross-section: 0.5–1.5 mm²
• Cable OD range: 5–9mm or 9–12mm (gland-dependent)

450V AC/DC is the rated voltage.

Tool-Free Termination and Customization

These numbers directly lead to fewer complaints about voltage drops during long lighting runs and lower costs for repairs on the day the job is turned over.

Comparing M20 Feed-Through Connectors with Other Connector Types

M20 vs. M16 and M25: Choosing the Right Thread Size

M16 plugs work with signal lines that are thin (4–8 mm OD), but they can't handle the high current loads that main power feeds need. In normal luminaire runs, M25 connectors add extra bulk and cost and can't handle thicker wires. The M20 is in the middle. It can connect to 6–12 mm cables, which are common in 16A power circuits, but the body of the connector is small enough to fit into standard junction box knock-outs.

IP67 vs. IP68: Which Rating Do You Need?

IP67 protects against short-term immersion up to 1 meter for 30 minutes, which is enough for most urban landscape lighting projects. IP68 certification allows continued submersion at depths set by the maker. This makes it the best choice for oxygenation pumps in aquaculture, underwater lights for features, and shoreline infrastructure that gets wet from the tides. Cablein has both ratings in the same M20 platform, so project engineers can choose based on environmental risk instead of connection model.

OEM vs. Generic Supply: A Procurement Reality Check

When you buy generic M20 feed-through wire-to-wire waterproof connectors from sources you can't trust, they often skimp on the silicone O-ring durometer or use recycled PA66 that isn't as stable in UV light. The real way to tell the difference between auditable supply and speculative savings is through TUV and CE certificates given by accredited third-party labs, not self-declarations. When buyers spend more than $30,000 USD a year on connectors, they usually find that certified OEM sources pay for themselves within one warranty claim cycle.

How to Select and Procure the Ideal M20 Feed-Through Waterproof Connector

Matching Specifications to Your Project Environment

For starters, look at the temperature range and IP grade. A Florida building facade job along the coast needs both IP68 salt-spray protection and a UV-stable housing. For a 5G small-cell cabinet to work in the north, the -40°C lower bound must be backed up by test data from thermal cycling, not just a claim in the datasheet. Before you send out a purchase order, make sure you get test reports, not just certificates.

Evaluating Supplier Reliability

A supplier's fit for project-driven buying is based on lead time, MOQ tiers, and audit access. Cablein has more than 10,000 of each item in stock, and most orders are sent out via DHL, UPS, or FedEx within 7 to 10 days. For big bids with tight deadlines, pre-assembled harness choices cut down on the work that needs to be done on-site and speed up the fitting process.

Customization and Volume Pricing

At 500, 1,000, and 5,000 pieces, volume pricing tiers usually kick in. Custom mold choices are available for OEM installers who package connections as part of a full luminaire system. These options include housing color, wire length, and pin count. Qualified buyers can conduct ISO 9001:2015 factory audits, which helps smart-city integrators do the dual-sourcing due diligence they need.

Installation and Troubleshooting Guide for M20 Feed-Through Connectors

Step-by-Step Installation

Before putting the wires into the screw ends, thread the line through the gland body. Pull the coupling nut tight by hand until the silicone ring fits against the wire jacket. Then, use a measured wrench to apply 2.0–3.0 Nm of pressure. If you tighten the O-ring too much, it will bend and break the seal. If you tighten it too little, capillaries can get in over time.

Common Field Failures and Fixes

It's almost always because the gland isn't torqued enough or the OD of the wire jacket isn't within the range that was given for the connection body is wet. Before installing, check the cable OD against the gland insert you chose. If contacts rust after being exposed to salt spray, it's probably because they aren't made with gold. Check the material certificates against the approved supplier datasheet.

Maintenance Intervals

Every year, check connectors that are near the coast or that get wet. Check the state of the O-rings, the connecting nuts, and the contact surface finish. Replace the O-rings if the compression set is more than 20% of its original thickness. On a building facade that is already in use, proactive replacement on a set schedule costs less than a single emergency service call.

Conclusion

The M20 feed-through wire-to-wire waterproof connector solves a specific and recurring problem in outdoor power distribution: how to extend or join cables reliably when weather, vibration, and UV exposure work against every connection point. PA66 housing, silicone sealing, gold-plated contacts, and TUV/CE certification combine to produce a connector that performs across its rated service life rather than failing at the first monsoon season. For project managers running tight installation schedules, the tool-free termination and pre-assembly options reduce labor risk at the job site.

FAQ

1. What is the maximum cable diameter supported?

Depending on the gland insert chosen, the M20 feed-through connector can fit wire outer sizes ranging from 5 mm to 12 mm. It comes in two sizes, one for 5–9mm and one for 9–12mm.

2. Can I reuse these connectors after disconnection?

Yes. The screw-terminal arrangement allows for more than one joining cycle. Before each reconnect, check the silicone O-ring for cracks on the surface or compression set. If you see any wear, replace it.

3. What is the difference between IP67 and IP68 here?

IP67 protects against short-term submerging up to 1 meter for 30 minutes. IP68 covers continuous submersion at a depth and for a length of time specified by the manufacturer. For fixed placements underwater or in tidal zones, choose IP68.

4. Is the PA66 housing resistant to cleaning agents?

Yes, PA66 is resistant to typical industrial oils, fuels, and alkaline cleaning solutions. This means that the connection can be used in wash-down areas for food processing and in factory automation settings.

5. How do I avoid cross-threading during installation?

Align the connection nut by hand before you put any force on it to turn. Once the first thread fits smoothly, use a calibrated wrench to tighten it to 2.0–3.0 Nm. This nut should never be touched by power tools.
