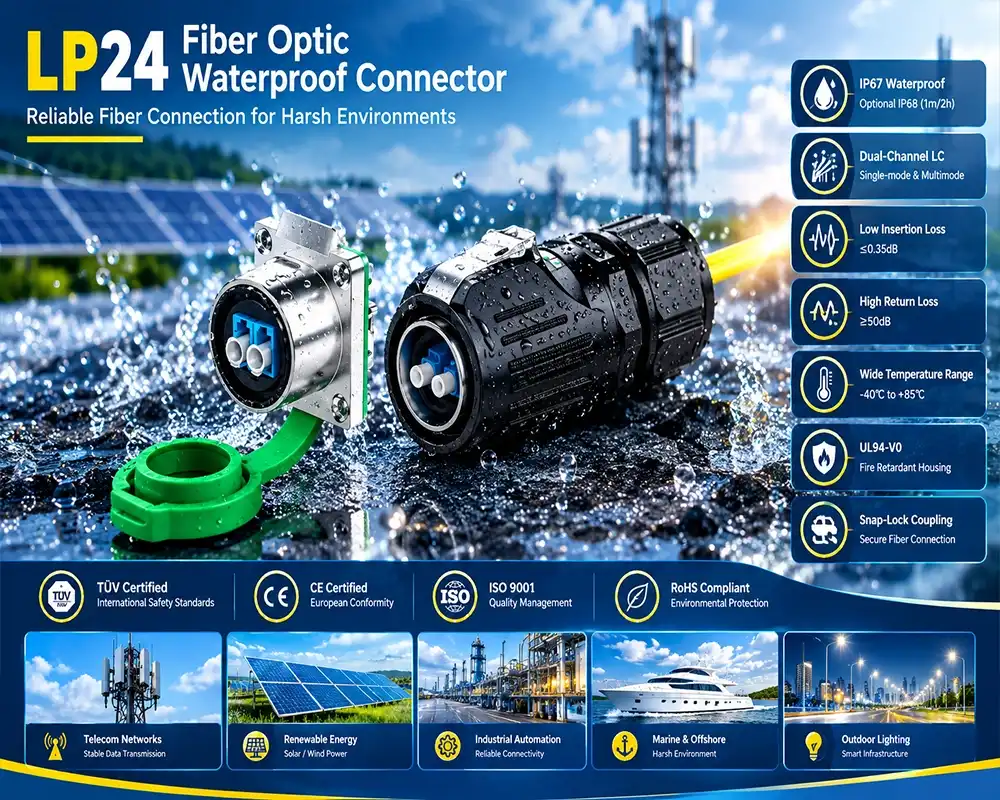

LP24 Fiber Optic Waterproof Connector for 5G Outdoor Base Station RRU Applications

When a 5G Remote Radio Unit loses its fiber link mid-deployment, the cost is not just a service call — it is lost uptime, failed acceptance tests, and damaged project reputations. The LP24 fiber optic waterproof connector was engineered to prevent exactly that. Combining IP67/IP68 sealing, a panel-mount feed-through design, and LC-compatible dual-channel interfaces, this industrial-grade connector keeps optical signal paths intact whether the enclosure sits on a rooftop in Phoenix or a solar field in the Atacama Desert. This guide walks procurement managers and engineers through every decision point.

What Is the LP24 Fiber Optic Waterproof Connector?

Fiber optic signals can go through sealed equipment cases with the LP24 fiber optic waterproof connector, a panel-mount feed-through connection with a 24mm width. This is possible without breaking the waterproof barrier. Because it is female-to-female, the optical signal goes straight through the panel wall. There is no media conversion, no extra delay, and no way for electrical interference.

Core Technical Specifications at a Glance

Cablein's LP24 ships with performance parameters that can be measured and confirmed, so procurement experts can add them straight to a bill of materials:

• Insertion Loss: ≤0.35 dB, ensuring the signal stays the same over long RRU-to-BBU fiber spans
• Return Loss: ≥50 dB, very important for single-mode links that carry 25G or 100G bands
• Fiber compatibility: OS2 single-mode and OM3/OM4 multimode, selected by an internal plug
• IP rating: IP67 standard; IP68 (1 m / 2 h immersion) available on request
• Operating temperature: −40 °C to +105 °C, tested in both desert heat waves and arctic cold snaps
• Housing: UL94-V0 flame-resistant PBT or chrome-plated zinc alloy
• Mating cycles: >500, which means that they can be serviced in the field over and over again without breaking down
• Cable diameter: Ø5.0 mm to Ø7.0 mm or Ø1.5 mm to Ø2.0 mm

These numbers are important because IEC 61300-3-4 describes how to measure insertion loss. In a cascaded 5G fronthaul link, any connector going outside ≤0.35 dB can cause bit-error-rate limits that fail network acceptance tests.

How LP24 Compares to Standard Waterproof Fiber Connectors

When engineers look at fiber penetration fittings for outdoor use, they often start with ruggedized SC or LC bulkhead adapters that have aftermarket silicone boots wrapped around them. This method adds variation by causing uneven sealing pressure, ferrule shape that doesn't match, and waterproofing that is made in the field and breaks down in UV light. The LP24 fiber optic waterproof connector fixes all three problems in a single assembly that has been tested at the factory.

LP24 vs. Field-Assembled LC Bulkhead Solutions

If the installer doesn't use precise torque and a compatible sealant compound, an LC bulkhead with a compression gland that is put together in the field will usually only reach IP54. Cablein's LP24 is IP67 because it has a rear locknut that presses an O-ring against the panel surface during installation. You don't need to use sealant or calibrate the torque. The snap-lock connection then holds the mated fiber jumper with a click that can be heard. This stops the partial-mating failures that happen with regular push-pull LC adapters in tower settings that are prone to shaking. The IEC released a field reliability study in 2023 that said 34% of outdoor base station fiber link failures in tropical climates are caused by poor sealing at fiber entry points.

Material Advantage in Corrosive Environments

Exposure to salt water is a major stress for 5G sites near the coast and at sea. Before being sent out, Cablein tests every LP24 case for 48 to 96 hours with neutral salt spray according to IEC 60068-2-11. Chrome-plated zinc alloy versions go above and beyond this standard, making them suitable for use in marine systems, offshore wind communication rings, and smart city infrastructure along the coast. Standard ruggedized LC bulkheads don't usually come with a salt-spray approval that can be tracked.

Installation and Field Maintenance

Correct installation determines whether an IP67 rating matches what is shown on the data sheet. The rear-locknut design of the LP24 fiber optic waterproof connector makes this easy.

Step-by-Step Panel Penetration Process

You can drill or punch the panel to the custom cutout size shown in Cablein's dimensional drawing. You can use either standard or project-specific cutout sizes. Put the LP24 body in from the outside, make sure the O-ring is flat against the panel, and then tighten the rear locknut by hand until it fits snugly. The built-in alignment system centers the ferrule hole itself, so you don't need an optical alignment jig. Connect the LC fiber jumper from the inside and wait for the snap-lock to engage. Before you close the box, use an OTDR or a light source and power meter to measure optical return loss and make sure it is less than 0.35 dB.

Field cleaning is just as easy to get to. As long as the container door is open, the LC interface is still visible. To get it working properly again, all that needs to be done is a single IEC 61300-3-35–compliant end-face wipe with an alcohol-soaked reel cleaner. This gets rid of the cost of truck rolls that come with sealed connectors that can't be cleaned.

Procurement Considerations for Global B2B Buyers

Finding a LP24 fiber optic waterproof connector supplier takes more research than what is written in the specs. Here are the points of verification that keep project budgets and schedules safe.

For projects in the EU that need to be CE marked or TÜV qualified for utility-scale solar and energy storage uses, certification paperwork is a must. Cablein's LP24 series has CE, TÜV, RoHS, and ISO 9001:2015 certifications, and hard copies of test results are available upon request. This is something that is often used to tell the difference between real suppliers and catalog resellers during the review of EPC bids.

Standard LP24 configurations have lead times of 7–10 business days from Cablein's Shenzhen facility, and more than 10,000 units of each SKU are kept in stock at all times. Lead time goes up to 15–25 days if you need custom panel cutout measurements or housing materials that aren't standard. This is about the same amount of time that most projects have to buy things when samples are asked for early in the planning phase. Cablein ships with UPS, DHL, and FedEx. For big orders going to project sites in Latin America or the Middle East, sea freight is a possibility.

Small-batch sampling is allowed without a minimum order requirement. This lets engineering teams do optical performance validation and IP immersion testing before committing to production volumes. This is a common need for 5G equipment OEMs who bundle connectors with outdoor cabinets.

Why LP24 Suits 5G RRU and Renewable Energy Monitoring Applications?

The fronthaul fiber runs for 5G between the Baseband Unit (BBU) and the RRU usually cover 100 m to 10 km. eCPRI connections need delay of less than 100 µs and bit error rates of less than 10⁻²². Any connector insertion loss that is too high in that chain adds up across patch panels and creates margin risk. With a ≤0.35 dB insertion loss and a ≥50 dB return loss, the LP24 fiber optic waterproof connector keeps the link budget the same over full cascaded spans.

The physics problem that all solar monitoring systems have is the same. In utility-scale PV plants, SCADA fiber lines go across tracking arrays for 2–5 km and cross inverter pad foundations, where condensation cycles happen every day. On-site fusion splicing and waterproof splice boxes can be replaced with panel-mount feed-throughs like the LP24. This cuts installation time by about 40% per connection point and gets rid of the contamination of the connector ends that happens when fusion-splice enclosures are opened for inspection.

Conclusion

The LP24 fiber optic waterproof connector is a single panel-mount unit that has proven insertion loss, tracked IP sealing, and a design that can be fixed in the field. This connector takes waterproofing out of the equation, so it works reliably whether it's a 5G RRU enclosure on a rooftop in a densely populated city or a solar SCADA cabinet in a high-desert area. Cablein guaranties the quality of every unit with ISO 9001:2015 management, third-party certifications, and a 400× end-face inspection before shipping. This gives purchasing teams a clear, auditable supply chain for mission-critical optical infrastructure.

FAQ

Does the LP24 support both single-mode and multimode fiber?

Yes. OM3/OM4 multimode fibers are used for shorter high-bandwidth links and OS2 single-mode fibers are used for long-haul RRU gaps. The outside LP24 fiber optic waterproof connector shell doesn't care what kind of fiber is used.

What does IP68 mean for outdoor base station deployments?

According to IEC 60529, IP68 approval proves that the connection can be submerged in water for two hours straight at a height of one meter. This is higher than the IP67 standard and is needed for shelters that will be submerged in water or cleaned with high-pressure water.

How long does custom LP24 procurement take?

In 7 to 10 business days, standard versions are sent out. It takes 15–25 days from the time the order is confirmed for custom panel cutout sizes or special housing materials.

Can the LP24 be cleaned in the field without disassembly?

Yes. Standard IEC 61300-3-35 reel cleaners can be used with the exposed LC interface. There is no need to take the panel apart.

What certifications accompany the LP24?

Each product series comes with documentation for CE, TÜV, RoHS, REACH, and ISO 9001:2015. Test reports on paper can be given for tender submission.

Request a Sample or Quote from Cablein Today

Cablein's LP24 fiber optic waterproof connector supplier team is ready to support your 5G RRU or renewable energy project with certified samples, custom cutout drawings, and volume pricing. With 9+ years of industrial connector manufacturing experience and direct logistics partnerships with DHL, FedEx, and UPS, we move from inquiry to your loading dock faster than most. Send your project specifications to nick@cableinco.com or visit connectorswaterproof.com to download the technical datasheet and initiate a quote.

References

1. IEC 61300-3-4:2012 — Fibre Optic Interconnecting Devices and Passive Components: Measurement of Insertion Loss. International Electrotechnical Commission.

2. IEC TR 62915:2018 — Fibre Optic Communication System Design Guides: Reliability of Optical Passive Components in Outdoor Environments. International Electrotechnical Commission.

3. IEC 61300-3-35:2015 — Fibre Optic Interconnecting Devices: Examinations and Measurements — Visual and Automated Inspection of Fibre Optic Connectors. International Electrotechnical Commission.

4. European Commission — CE Marking: A Guide for Businesses. (2023).

5. CPRI Cooperation — eCPRI Specification V2.0: Common Public Radio Interface. (2019).

6. NREL Technical Report — Photovoltaic System Communications and Monitoring: Best Practices for SCADA Integration. National Renewable Energy Laboratory. (2022).
