What is an M12 Straight Waterproof Cable Connector?
Electrical lines need to be shielded from water, dust, and motor stress when industrial systems are used in harsh conditions. To solve this problem, the M12 straight waterproof cable connector was carefully designed to work well. This standard circle connector has a 12mm metric threaded link that makes connections that are safe and won't shake in automation, energy, and transportation settings. Its straight-exit design makes it easier to route cables through panels and conduits, and it still protects against water and dust up to IP67 or IP68 levels. It helps buying teams choose the best interconnect option for their business needs to know what this connector can do.
Understanding the M12 Straight Waterproof Cable Connector
When used in an industrial setting, the M12 straight waterproof cable connector is a key link between sensors, motors, and control systems. Its design blends mechanical strength with sealing against the environment to make sure that power and data transfer are always stable.
Core Design Features
Every M12 straight waterproof cable connector has a threaded locking mechanism at its core that keeps it from disconnecting by accident while it's being used. The straight design makes the wire axis stretch straight from the connector body. This makes it perfect for setups with enough room for straight routing. The PA66 nylon housing keeps the structure strong and protects against chemicals, and the gold-plated brass contacts reduce electrical resistance and stop corrosion. The waterproof barrier between the connector halves is made of a precision-molded silicone gasket that has been tested to withstand water jets and short-term submersion, depending on the IP rating.
The M12 straight waterproof cable connector can usually hold between 2 and 8 contacts that are set up in standard coding patterns. D-coding is used for Ethernet transmission, while A-coding is used for sensor and DC power uses. This coding method literally stops mismating between connection types that aren't compatible, which cuts down on installation mistakes on complicated machines.
Technical Specifications That Matter

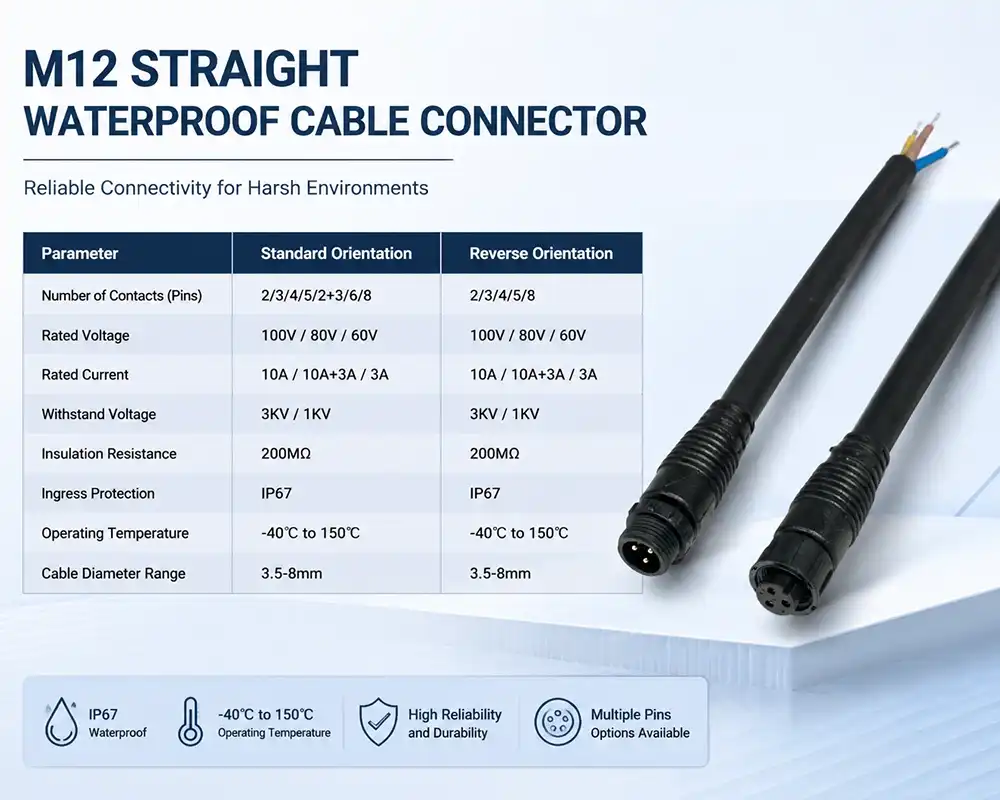

Electrical ratings tell you what an M12 straight waterproof cable connector can do in different situations. Standard voltage values range from 60V to 100V, and each link can handle 3A to 10A of power. Signals stay separate even when it's humid because the insulation resistance is higher than 200MΩ. Temperature ranges of -40°C to 150°C allow for a wide range of applications, from high-temperature processing equipment to installations in the cold. The 3kV dielectric strength makes sure there are safety gaps against voltage spikes that happen a lot in industrial power systems.
Through injection moulding, the cable width can be anywhere from 3.5 mm to 8 mm, so it can be connected to different wire sizes. The overmolded design connects the wire jacket to the connection housing, making a single unit that doesn't have the stress points that come with field-terminated designs.
Standards and Certifications
IEC 61076-2-101 sets the standards for the mechanical and electrical interfaces that make sure all devices can talk to each other around the world. M12 straight waterproof cable connectors with the CE mark follow European safety rules, and TUV certification proves that performance claims are true through independent testing. RoHS compliance limits dangerous chemicals, which is in line with environmental rules in most developed markets. ISO9001:2015 approval for manufacturing means that quality is controlled in a planned way throughout the whole process. When equipment needs to get regulatory approvals or work in safety-critical situations, these credentials are important.
Types and Variants of M12 Cable Connectors
Knowing the different designs helps match the shape of the M12 straight waterproof cable connector to the needs of the placement and the performance goals.
Straight Versus Right-Angle Configurations
Straight M12 straight waterproof cable connectors arrange wires along the line of the connector, which lowers the height of the whole assembly. This shape works well for panel-mount uses and drag chain systems where straight cable paths lower flexing stress. Right-angle versions turn wires 90 degrees away from the body of the connector, making them work in tight areas where straight designs would have to bend too much. Which arrangement to use depends on the depth of the cabinet, the limitations of wire management, and the need for easy entry for upkeep.
When made correctly, performance traits stay the same across orientations. The sealing design and quality of the material, not the angle of the connector, determine the IP rating, contact resistance, and mechanical durability. Configuration choice is usually based on how easy it is to install.
M12 Compared to Other Connector Sizes
M8 plugs make it possible for small sensors that need less power to have a smaller size. Because they are smaller, they can only handle a limited amount of current and contacts. This means they are good for proximity sensors and photoelectric devices but not for high-power motors. M12 straight waterproof cable connectors are the right size for the job because they can handle moderate power levels and Ethernet data transmission. Heavy industrial equipment that needs a lot of circuits or a lot of power can use M23 and bigger formats.
Because so many parts are available at low prices, the M12 straight waterproof cable connector system has become the de facto standard for general industrial machinery. This place in the market makes it easier for procurement teams to find tools and keep track of their inventory.
Brand Considerations and Customization
Well-known companies like Phoenix Contact and TE Connectivity make a wide range of M12 straight waterproof cable connector products and have years of experience using them in different situations. Their connectors go through a lot of validation testing and usually come with a lot of technical documentation. But specialized providers like Cablein Technology offer the same level of performance with the added benefit of being able to adapt to the specific needs of each project.
Customisation options go beyond products in a catalogue. Field cutting and termination are no longer needed because the cable length is specified. Wire colour coding makes it easier to find the right circuit when installing or fixing something. Custom pin configurations let M12 straight waterproof cable connectors work with specific pieces of equipment. In complicated installations, housing colour or marking helps with visual identification. With these changes, general parts become project-specific solutions that cut down on installation time and mistakes.
Benefits and Applications of M12 Straight Waterproof Cable Connectors
The value proposition includes more than just connectivity; it also includes operational reliability and lowering total costs for the M12 straight waterproof cable connector.
Environmental Protection in Practice
The IP67 rating means that the M12 straight waterproof cable connector is safe from dust and water up to one metre deep for a short time. This feature can handle setups outside, occasional cleaning, and humidity in climate-controlled spaces. The IP68 grade adds security for ongoing submersion at certain depths. This includes fountain installations, marine equipment, and infrastructure that is buried. The silicone gasket material doesn't break down when it comes in touch with cutting oils, weak chemicals, UV light, or changes in temperature.
Testing methods are like things that happen in the real world. Testing with salt spray proves that coastal installations are resistant to corrosion. Temperature cycling shows that the seal is still good even when the weather changes. Vibration testing makes sure that moving and rotating machines are mechanically stable. These proven capabilities remove the trial-and-error method that plagues projects using untested connection solutions.
Mechanical Durability and Connection Reliability
Threaded coupling gives strong mechanical hold that push-pull systems don't have. The metal-to-metal thread engagement can handle vibrations that would make friction-fit M12 straight waterproof cable connector connections come apart. Rated mating cycles usually go over 500 operations, which supports equipment that needs to be disconnected from time to time for maintenance or to change its configuration.
When you put gold coating on brass contacts, you stop the rust that makes the contacts less flexible over time. Less contact resistance means less voltage drop and warmth, which keeps the signal strong and saves power. The design of the contacts allows for thermal growth without affecting electrical performance, which is very important for equipment that goes through big changes in temperature.
Diverse Application Scenarios
In LED lighting systems, these M12 straight waterproof cable connectors connect cars to lights in parking garages, sports arenas, and art projects. Pre-wired parts come at the job site ready to be connected right away, which cuts down on installation time and costs for labour. Because it is waterproof, the seal keeps out water that could corrode connections and cause them to fail early.
M12 straight waterproof cable connectors are used all over solar panels and wind farms that use renewable energy. They connect switch boxes, keep an eye on sensors, and manage motors that are out in all kinds of weather. How well the connection works after years of being outside has a direct effect on how much it costs to keep and how often it needs to be fixed.
The biggest group of applications is industrial automation. Programmable logic controllers can talk to limit switches, photoelectric devices, proximity sensors, and inductive sensors through M12 straight waterproof cable connectors. The standard interface makes it easier to replace sensors and make changes to the system without having to make custom cables. Food processing plants like the IP67/IP68 protection because it keeps connections safe during high-pressure cleaning processes that would damage connections that aren't protected.
For example, traffic signal controllers, railway signalling equipment, and parking guidance systems all need to be able to connect via M12 straight waterproof cable connectors. The natural protection and sound resistance work together to solve the problems of being outside and the mechanical stress from nearby traffic.
How to Choose and Install an M12 Straight Waterproof Cable Connector?
When making a procurement choice, you have to weigh the technical needs against the costs of long-term operation and rollout for each M12 straight waterproof cable connector.
Selection Criteria for Procurement Teams
The environment decides what kind of protection is needed. For installs outside, the M12 straight waterproof cable connector housing must be made of UV-resistant materials and have a minimum IP67 grade. Equipment that will be washed needs to be certified as IP68 or IP69K. Extreme temperatures make it important to check operational limits and material compatibility.
The electrical requirements must fit the needs of the product. The voltage and current ratings should give you a safety margin above the normal operating conditions. The number of contacts and the type of coding must match the needs of the equipment link. Signal apps need to pay attention to how well touch resistance and shielding work.
Not only do M12 straight waterproof cable connector standards need to be checked for compatibility, but so do connection features and mating components. Make sure that pre-wired systems use cable that is rated for the installation area. For example, TPU jackets are good for oil resistance, PVC jackets are good for cost-effective indoor uses, and PUR jackets are good for applications that need to be very flexible.
Instead of just looking at unit price, cost analysis should include all of the costs of owning something. Field-termination components are cheaper to buy than pre-wired M12 straight waterproof cable connectors, but labour costs and quality differences are eliminated. Factory-assembled goods are less likely to break, which cuts down on guarantee claims and field service costs.
Installation Best Practices
A visual check is the first step to a proper installation. Make sure there is no damage to the threads and that the sealing surfaces of the M12 straight waterproof cable connector are still clean. Thread contact should go easily and not be forced; resistance means that the threads are not lined up correctly or are dirty. Tighten the coupling by hand until the gasket compression creates resistance. Then, apply the final torque as directed by the manufacturer, which is usually between 0.4Nm and 0.6Nm.
When you over-tighten an M12 straight waterproof cable connector, you damage the gaskets and threads, which weakens the seal and shortens its life. Under-tightening lets water in and makes links that don't work all the time. Using a calibrated torque wrench takes the guesswork out of it and makes sure that all installers get the same results.
Long-term reliability is affected by how cables are routed. A lot of stress is put on the overmolded strain relief when there are sharp turns near the connection. Support the cables at regular intervals to keep the weight from putting too much stress on the M12 straight waterproof cable connector. For uses that move, use cable carriers or flexible tubes that let you control the bend radius and keep the wires from wearing down.
Strategy for Buying and Choosing Suppliers
When evaluating a supplier's abilities, you should look at their production capacity, quality systems, and expert help resources. Standard M12 straight waterproof cable connector items have shorter lead times when manufacturers keep 10,000 or more pieces of each product line in stock. Custom configurations can be made without a minimum order quantity, which helps pilot projects and unique tools.
Documentation that shows a product is compliant is called certification. Instead of accepting nominal specifications, ask for test reports that prove IP ratings, contact resistance, and mechanical durability. Traceability and process controls that lower batch-to-batch difference are maintained by suppliers who use ISO9001:2015 quality systems.
When application questions come up, how quickly technical support responds is very important. Suppliers who give technical advice can help you choose the best M12 straight waterproof cable connectors and fix problems with installation. This partnership method lowers project risk compared to relationships with vendors that are only transactional.
Lead time management checks the costs of keeping inventory against the needs of the output plan. Suppliers like Cablein Technology keep common M12 straight waterproof cable connector configurations in stock so they can be sent out quickly. Standard custom orders can be completed in 7–10 days. Knowing these dates when planning a project keeps the availability of connectors from becoming a problem that slows down the schedule.
Conclusion
The M12 straight waterproof cable connector has been used for years to connect industrial equipment that works in harsh conditions. It meets the main needs of automation, energy, and infrastructure applications with its threaded coupling, environmental sealing, and standardized interface. Performance and service life in the real world depend on the quality of the materials, how precisely they are manufactured, and how well they are installed. When evaluating suppliers, procurement teams should put technical ability, certification documentation, and support resources at the top of the list, along with price. The connector is widely used because it strikes a good balance between performance, cost, and ease of deployment across a wide range of industries.
FAQ
What distinguishes A-coded from D-coded M12 connectors?
A-coded M12 straight waterproof cable connectors are mostly used for DC power and sensor applications that need to send signals easily. D-coded versions handle 100 Mbit Industrial Ethernet protocols and have connections with controlled impedance and better protection. The physical keying keeps incompatible types from being connected by accident.
Can these connectors operate continuously underwater?
M12 straight waterproof cable connectors with an IP68 rating can be submerged continuously up to a depth specified by the manufacturer, which is usually between one and three meters. Check the grade and depth limit to make sure they work for your purpose. In saltwater settings, stainless steel hardware is even more resistant to rust.
How does cable jacket material affect connector performance?
PVC is a cheap way to protect controlled indoor environments. TPU is better at resisting oils, wear, and germs that are common on plant floors. PUR gives dynamic applications the most flexibility possible for an M12 straight waterproof cable connector. The fitting setting and mechanical stress needs should guide the choice of jacket.
What torque specification ensures proper sealing?
0.4 Nm to Nm coupling torque is what most industry standards call for. By using a measured torque wrench, you can keep the M12 straight waterproof cable connector seal from getting damaged by over-tightening and water from getting in by not compressing it enough. Check the product's documentation to find out what it needs.
Partner with Cablein for Your M12 Straight Waterproof Cable Connector Requirements
Cablein Technology makes industrial-grade M12 straight waterproof cable connectors that are reliable and can be customised in a number of ways. Our IP67/IP68 security comes from our gold-plated brass contacts, precision silicone gaskets, and PA66 nylon shell. This is backed by CE and TUV approval. When products are made according to ISO9001:2015 quality standards, they all work the same way. We keep more than 10,000 pieces of each product line in stock, which means that basic setups can be delivered in 7 to 10 days. With custom connection lengths, pin layouts, and wire specs, our connectors can be made to fit the needs of your project without making the lead time longer. As a seller of M12 straight waterproof cable connectors with a lot of experience, we help buying teams by giving them expert advice, licensing paperwork, and quick service. Contact nick@cableinco.com to talk about your connectivity needs and see the benefits of working with a manufacturer that specialises in industrial connectors.
